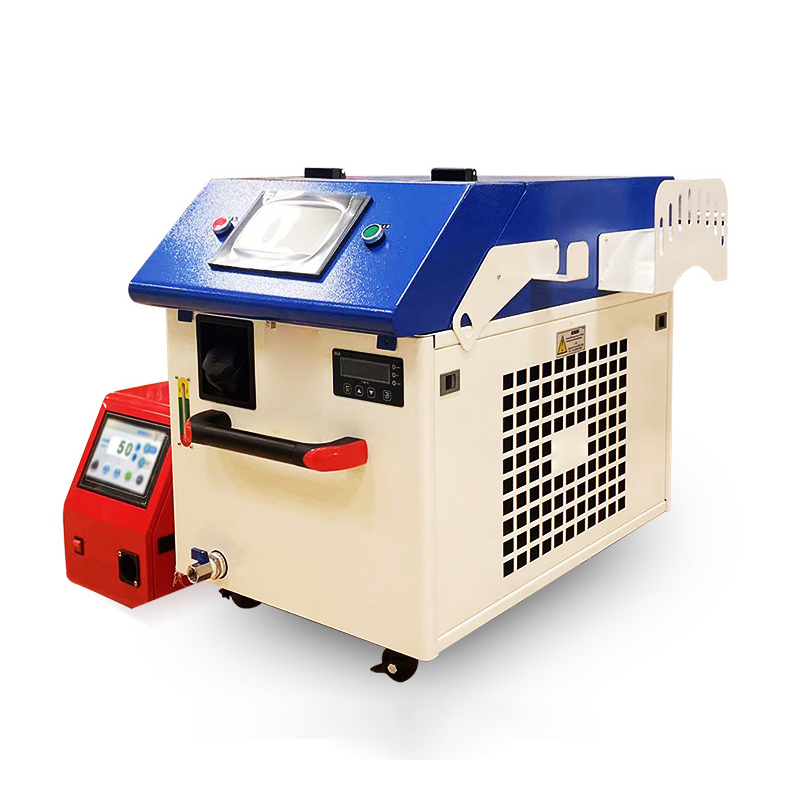

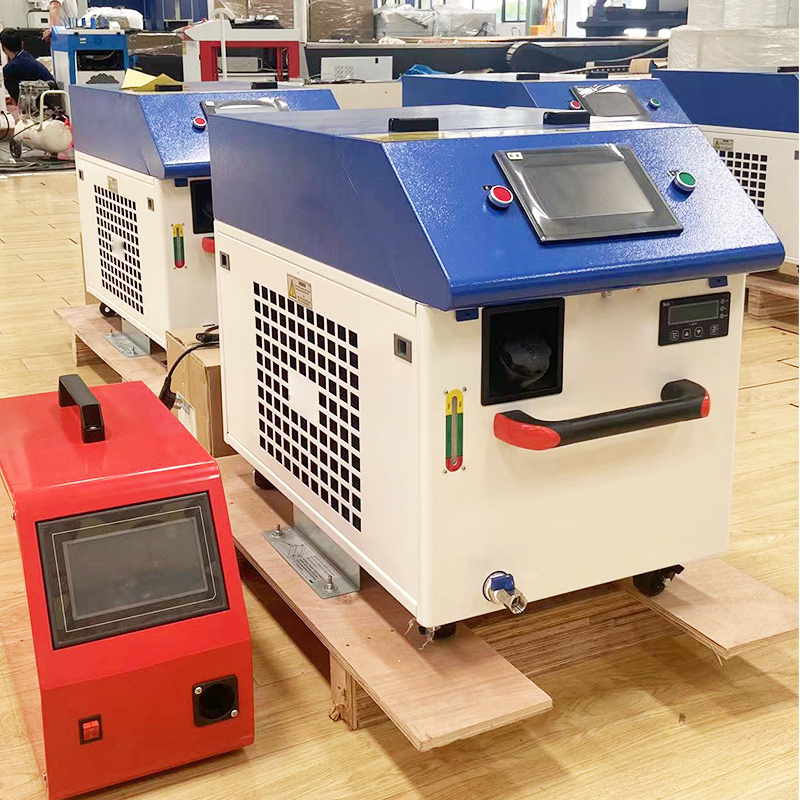

1500W portable handheld laser welding machine, fiber optic pulse automatic welding stainless steel advertising words
Simple operation and low labor cost
Small radiation, only need protective glasses
The speed is fast, and the efficiency is 5-6 times higher than that of fluorine arc welding
Concentrated energy has little effect on thermal deformation

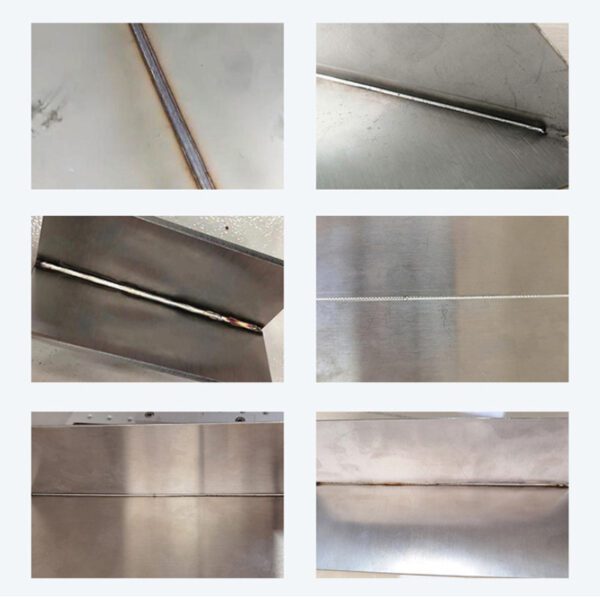

The welding is fine and beautiful, the molten pool is deep, and the strength is high
Thin materials can be welded, such as: 0.3MM stainless steel
Can be welded with filler wire or without wire
$11,665.00
Compare| Product number | F1000 | F1500 | F2000 |
| laser type | Continuous fiber laser machine | ||
| Rated output power | 1000 | 1500 | 2000 |
| Power adjustment range | 10%~100% | ||
| Laser center wavelength | 1080±3nm | ||
| output method | Continuous/Modulation | ||
| Maximum modulation frequency | 50kHz | ||
| power instability | <3% | ||
| Fiber length | 15mm | ||
| Collimation focal length | 50mm | ||
| focus focal length | 80mm/120mm/150mm | ||
| Wire diameter | 0.8, 1.0, 1.2, 1.6 | ||
| water flow | >12L/min | >15L/min | >25L/min |
| Operating Voltage | Single-phase | 220VAC Three-phase five-wire 380VAC Single-phase 220VAC | |
| Total power | <6kw | <7kw | <9.5kw |
