120L Automatic CIP System Mobile Juice & Dairy Cleaner
The 120L automatic CIP system is designed for efficient cleaning and sanitization of juice and dairy tanks, pipelines, and processing equipment, featuring fully automated pump circulation, temperature-controlled spray, and durable stainless steel construction for hygienic, safe, and easy operation, ideal for medium-scale juice and dairy production facilities, pilot lines, and laboratories.
$9.00
Compare120L Automatic CIP System Product Introduction
The 120L automatic CIP system provides thorough and reliable cleaning for juice and dairy production equipment, including storage tanks, pipelines, and associated processing devices. Equipped with fully automated pump circulation, temperature-controlled spray nozzles, and integrated piping, it ensures uniform distribution of cleaning solutions while minimizing manual labor. Its compact, trolley-mounted design with lockable wheels allows easy relocation between production lines, pilot facilities, or laboratories. Constructed from durable food-grade stainless steel, it resists corrosion, simplifies maintenance, and guarantees long-term performance. This mobile CIP system supports efficient cleaning cycles, consistent hygiene standards, and flexible operation, making it an essential solution for juice and dairy plants, pilot lines, and laboratory setups.
Technical Specifications：
| Capacity | 120 L |
| Dimensions | Width: 1200 mm, Height: 1700 mm, Depth: 570 mm |
| Net Weight | 60 kg |
| Tank Capacity | Acid Container: 60 L; Lye Container: 60 L |
| Heating System | Heating elements: 1 × 1000 W |
| Distribution Piping | DN 25 (DIN 11851 or DIN 32676 or BSP 1″ ET) |
| Hose Connections | Output/Input: DN 25, 1.4301 DIN 11851 / DIN 32676 |
| Centrifugal Pump | Type: 0.88 kW; Voltage: 230V/50Hz; Material: AISI 316L |
| Pump Discharge | Up to 45 m |
| Electrical Switchboard | Main connection: 1×230V/50Hz; Min protection: 10A (RCD) |
| Protection Class | IP44 |
| Control Switches | Heating: On/off with simple temperature regulation; Pump: On/off (no flow regulation) |
| Power Cable | 3 m |
| Material | Stainless steel AISI 304 |
| Max Working Conditions | Temp: 50°C; Lye/Acid concentration: 2% |
- Tank 1 : Tank 60 liters for storage of acid (acidic chemical detergent)
- Tank 2 : Tank 60 liters for storage of lye (alkalic chemical detergent)
- CP : Control panel / electric switch box

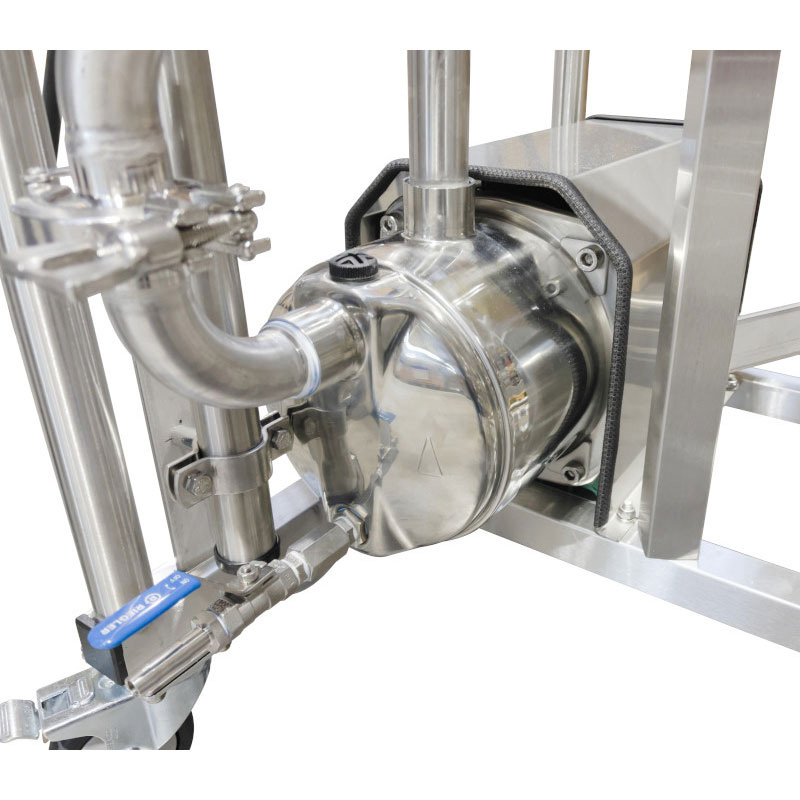

- PMP : Centrifugal pump
- HS : Heating system
- IN1 : Inlet for return of the acidic chemical detergent to the tank No.1
- IN2 : Inlet for return of the alkalic chemical detergent to the tank No.2
- IN3 : Inlet for return of chemical detergents to a pump or tanks
- IN4 : Inlet for water
- OUT1 : Draining the tank No.1
- OUT2 : Draining the tank No.2
- OUT3 : Outlet for chemical detergents to an external device to be cleaned
The cleaning-sanitizing cycle usually consists of these steps :
- Pre-rinsing – rinsing of the production equipment using cold or hot water.
- Cleaning – cleaning of the production equipment using circulated hot water.
- Rinsing – thorough rinsing of the production equipment using cold or hot water.
- Chemical disinfection (sanitation) – washing of technology using alkaline and then acid sanitizing solution at the desired concentration.
- Rinsing – thorough rinsing of the production equipment using cold or hot water.
Main features：
- High-Efficiency Cleaning – Fully automated pump circulation and temperature-controlled spray ensure thorough sanitation.
- Food-Grade Stainless Steel – Durable, corrosion-resistant, and compliant with hygiene standards.
- Portable Trolley Design – Lockable wheels allow easy relocation between production lines, pilot facilities, or labs.
- Flexible Operation – Suitable for juice and dairy tanks, pipelines, pilot lines, and laboratory setups.
- User-Friendly Controls – Mechanical operation with optional PLC/touchscreen for convenient monitoring.
Application Scenarios：
- Sanitizing juice and dairy storage tanks and pipelines.
- Cleaning processing equipment in beverage, dairy, and juice production facilities.
- Portable solution for pilot lines, small-scale production, and laboratories.
- Maintaining hygiene standards in multi-line beverage or dairy plants.
- Efficient cleaning for juice, milk, and dairy fermentation or storage systems.
