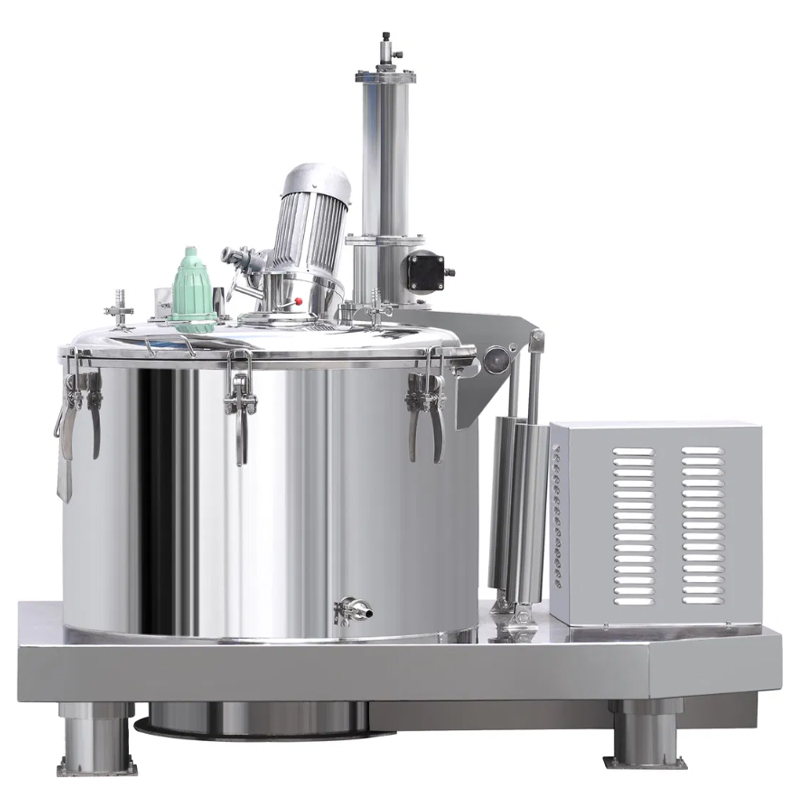

100L Automatic Bottom Discharge Centrifuge | Flat Plate Type
The 100L Automatic Bottom Discharge Centrifuge features a sturdy flat plate structure that ensures stable, low-vibration operation and easy maintenance. Designed for continuous solid-liquid separation in food, pharmaceutical, and chemical processing lines, it delivers high efficiency, uniform discharge, and a fully enclosed stainless-steel construction for maximum hygiene and safety.
Compare
Main Technical Parameters of the Bottom Discharge Centrifuge
| Parameter | Value |
| Drum Diameter(mm) | 800 |
| Drum Working Volume(L) | 100 |
| Drum Loading Limit(kg) | 135 |
| Drum Speed(R/Min) | 1200/1500 |
| Separation Factor(ω²r/g) | 645/1008 |
| Motor Power(KW) | 7.5/11 |
| Cover Height(mm) | 2130 |
| Machine Weight(kg) | 2500 |
| Dimensions(mm) | 1800*1300*1880 |

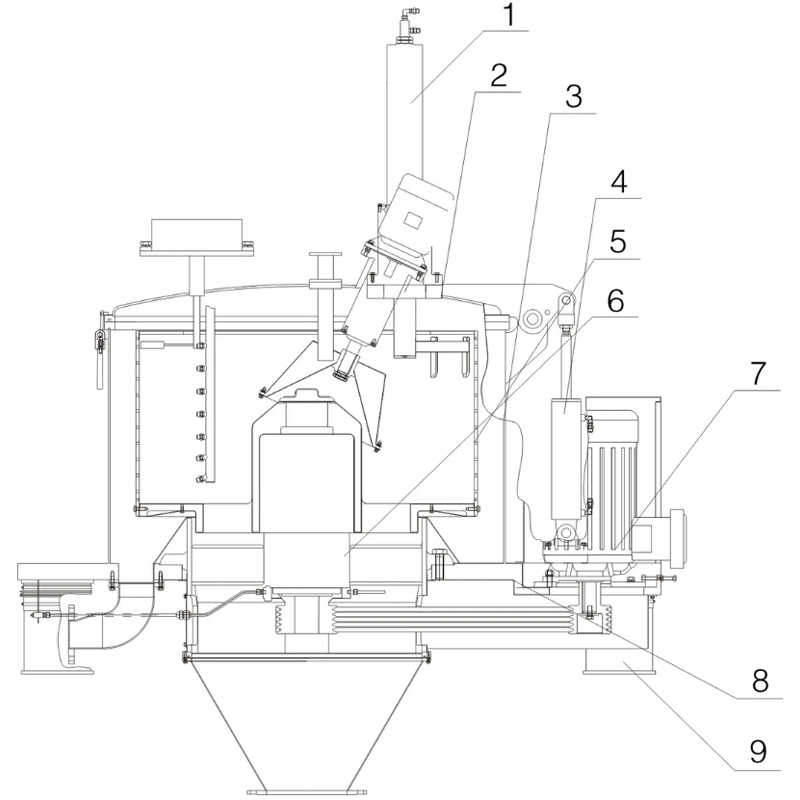

Drawings of the 100L Bottom Discharge Centrifuge
| 1. Scraper cylinder | 9. Shock absorber |
| 2. Cover | 10. Manhole |
| 3. Shell | 11. Washing pipe |
| 4. Open oil cylinder | 12. Feeding pipeline |
| 5. Drum | 13. Rotary feeder |
| 6. Bearing pedestal | 14. Material level detector |
| 7. Motor | 15. Explosion-proof light |
| 8. Frame | 16. Water outlet pipe |
Application Scenarios
The 100L Automatic Bottom Discharge Centrifuge is widely used in various solid-liquid separation processes across different industries.
- In the food industry, it is suitable for separating starch, protein, vegetable or fruit pulp, juice residues, and plant extracts.
- In the pharmaceutical and biotechnology sectors, it is used for separating herbal extracts, fermentation broths, mycelium, and cell suspensions.
- In the chemical industry, it efficiently handles pigments, fine chemicals, catalysts, and wastewater sludge.
Its flat plate design and automatic bottom discharge system ensure stable operation, hygienic production, and easy cleaning — making it ideal for both batch and continuous processing applications.
Contact us to get your quotation now.
