10–25 pcs/min Shrink Wrapping Machine Horizontal

10–25 pcs/min Shrink Wrapping Machine Product Introduction

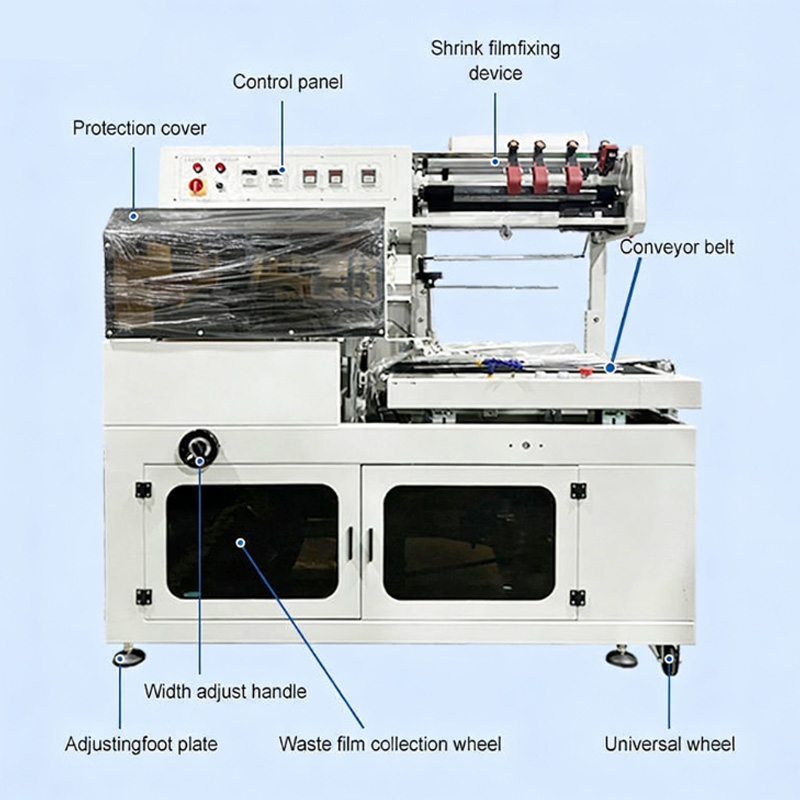

This horizontal shrink wrapping machine is designed for batch and automated production, suitable for food, photo frames, wood products, aluminum profiles, electrical appliances, hardware, and plastics. Using FOP/PE heat shrink film, it provides tight, neat, compact packaging suitable for long-distance transport. The sealing knife is made of high-temperature, anti-stick alloy coated with Teflon, adjustable from 0–400°C. Photoelectric sensors precisely control product delivery and film length. Thick PU conveyor belts are oil-resistant, corrosion-resistant, cold-resistant, and cut-resistant, ensuring smooth and reliable conveying. High-quality motors provide low noise, long life, energy efficiency, and uniform transport. Easy to operate and maintain.

Technical Specifications：

Voltage	220V 50–60Hz (customizable)
Power	1.55 kW
Packing Speed	10–25 pcs/min
Max Packing Length	≤ 650 mm
Cutter Length	770 mm
Machine Dimension (L×W×H)	2350 × 1230 × 1470 mm
Packing Dimension (L×W×H, for shipping)	2400 × 1340 × 1700 mm
Film Type	POF / PE
Conveyor Width	600 mm
Machine Weight	467 kg

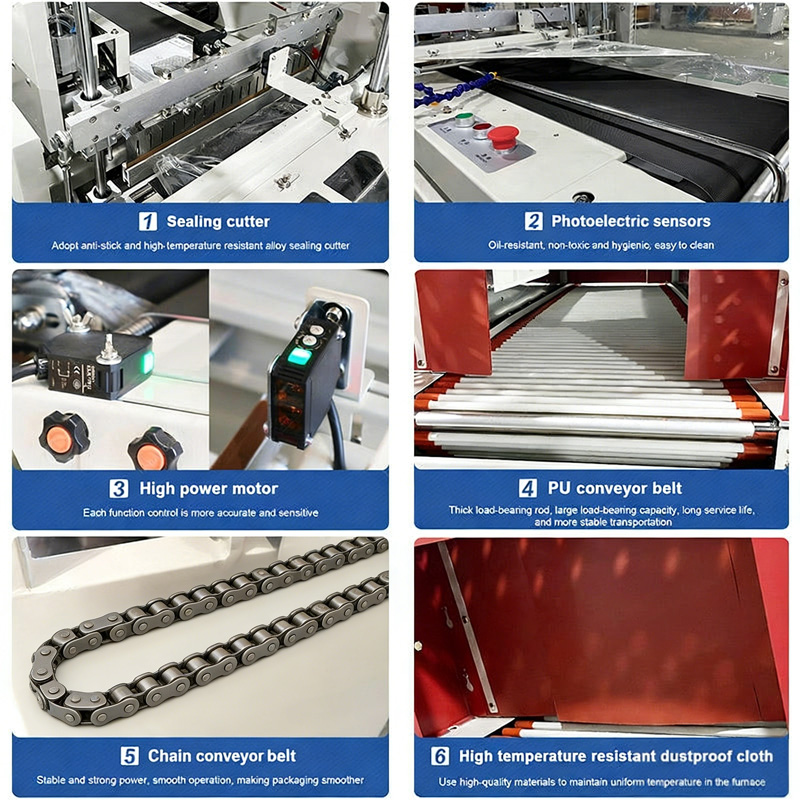

Main features：

• High-temperature anti-stick sealing knife – coated with Teflon, temperature adjustable 0–400°C
• Photoelectric sensor detection – accurately controls product delivery and film length
• Thick PU conveyor belt – oil-resistant, corrosion-resistant, cold-resistant, cut-resistant
• High-quality motor drive – smooth, low-noise, energy-efficient, long-lasting
• FOP/PE film compatibility – suitable for food, wood, electrical appliances, and other products

Application Scenarios：

• Food packaging – snacks, beverages, packaged goods
• Photo frame and picture frame packaging
• Wood products packaging – furniture parts, decorative items
• Electrical appliances and hardware packaging
• Plastic and industrial parts packaging – suitable for long-distance shipping

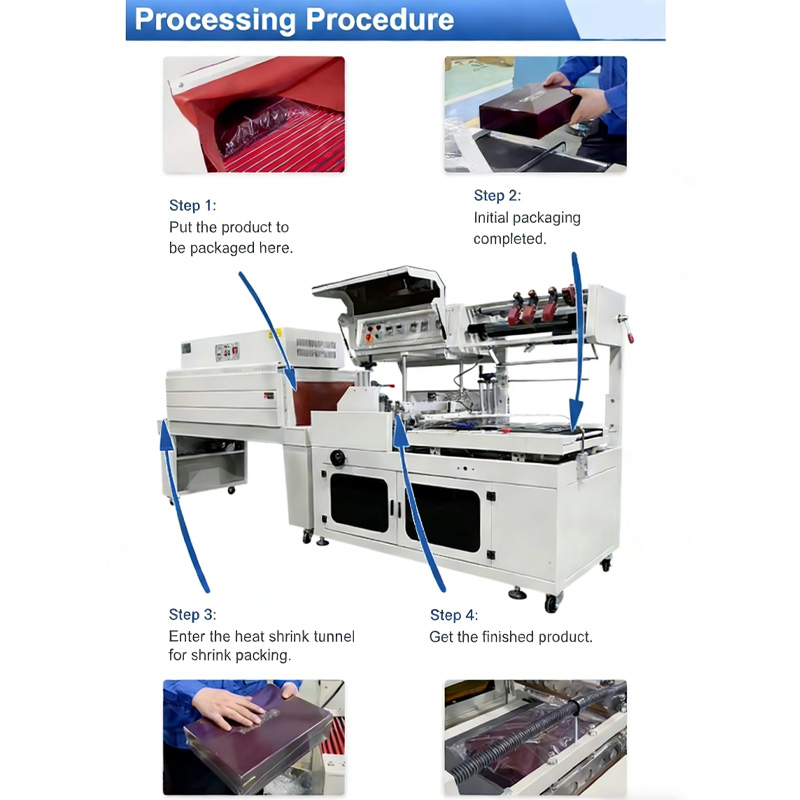

Processing Procedure：

• Step 1: Product Loading

  Place the product to be packaged (gift boxes, books, electronics, daily necessities, etc.) on the conveyor belt, and the machine will automatically sense and feed it.
• Step 2: Initial Sealing & Cutting

  The machine automatically completes film sleeving, sealing, and cutting, forming a sealed bag that tightly wraps the product to finish the initial packaging.

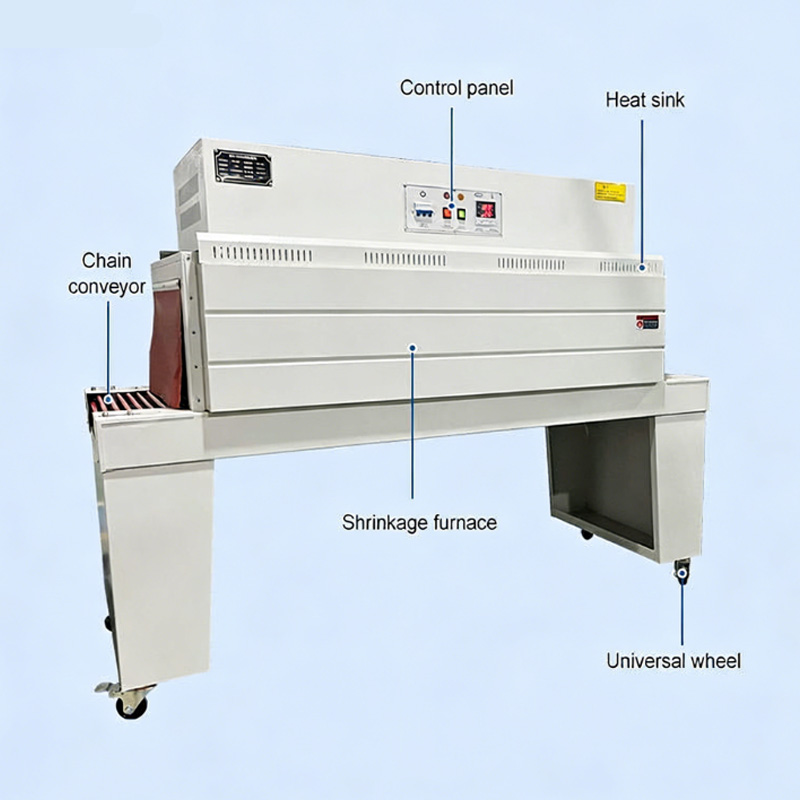

• Step 3: Heat Shrinkage

  The wrapped product enters the constant-temperature heat shrink tunnel. Under hot air, the packaging film shrinks uniformly to fit the product’s contour, creating a tight and neat appearance.
• Step 4: Finished Product Output

  The shrinked product is automatically discharged from the tunnel, resulting in a dust-proof, moisture-proof, scratch-resistant, and aesthetically pleasing final package ready for storage or shipping.



FAQ

Q1: What type of products can this machine package?
A: Food, photo frames, wood products, aluminum profiles, electrical appliances, hardware, and plastics.

Q2: What is the production capacity?
A: The machine operates at 10–25 pcs per minute, depending on product size.

Q3: Which shrink films are compatible?
A: FOP and PE heat shrink films are supported.

Q4: Is the machine easy to operate and maintain?
A: Yes, it features a user-friendly control panel, precise sensors, and easy maintenance.

Q5: What ensures consistent packaging quality?
A: High-temperature anti-stick sealing knife, precise photoelectric sensors, thick PU conveyor belt, and high-quality motors ensure uniform and reliable packaging.
