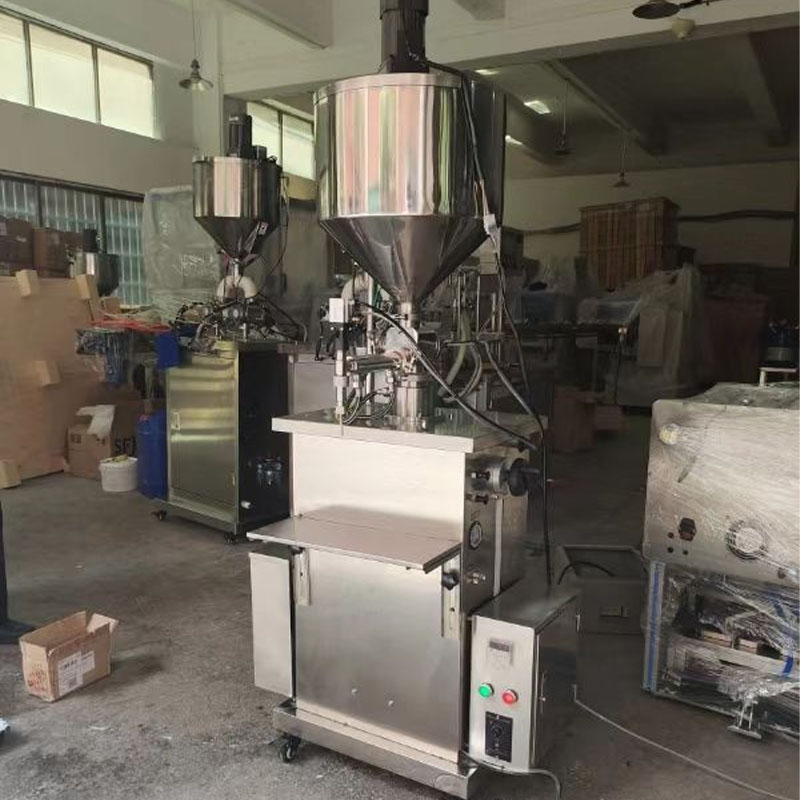

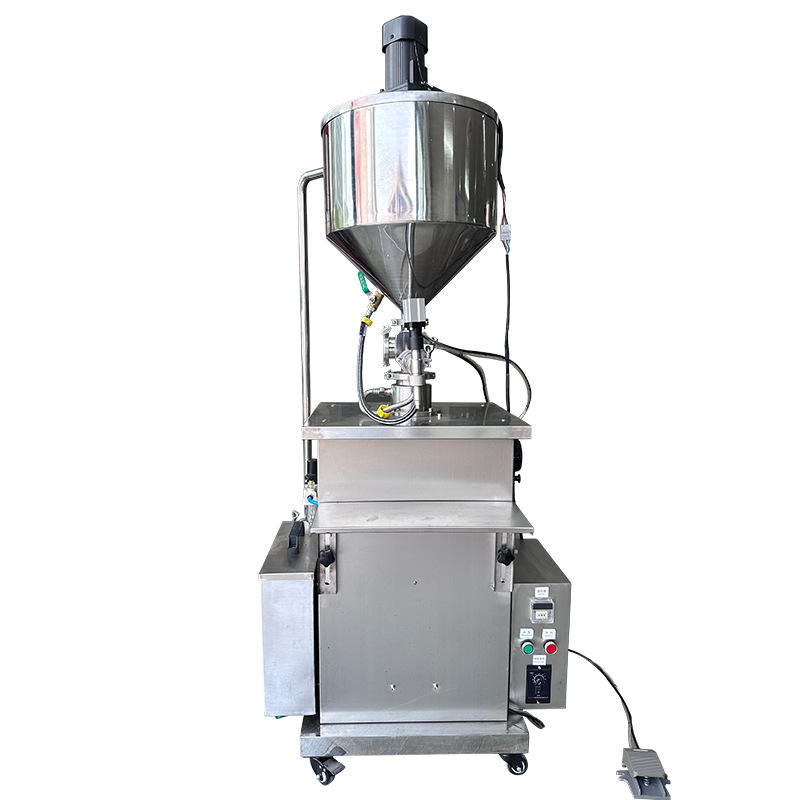

10-20 bottles/min Filling Machine for Vaseline Stable Heating

Product introduction for Filling Machine for Vaseline

The vaseline filling machine is a vertical heat preservation and mixing filling system designed for high viscosity materials such as vaseline, creams, waxes and similar paste products. It typically features a stainless steel construction with SUS316L material contact parts to meet GMP standards, ensuring hygiene and durability. The machine integrates heating, stirring and quantitative filling functions to solve problems such as material solidification, uneven flow and inaccurate dosing. It is widely used in cosmetic, pharmaceutical, food and chemical industries, making it suitable for manufacturers that require efficient, hygienic and precise filling of viscous heated materials in production environments.

Working Principle

The vaseline filling machine works by heating and stirring the material in a jacketed hopper to maintain optimal viscosity. The electric heating system ensures the material remains in a flowable state, while the stirring device keeps it uniformly mixed. The material is then pushed through heated pipelines into the filling nozzle. Controlled by a pneumatic system, the machine dispenses a precise volume into containers. Anti-drip nozzles prevent leakage, and the system repeats the cycle to achieve continuous, accurate and efficient filling.

Product Parameter Table

Filling range	50-500/100-1000 ml (or customize)
Heating power	2 kW
Working mode	Automatic / Manual
Material	SS304L (SS316 can be customized)
Air press	0.4-0.6 Mpa
Filling accuracy	±1%
Filling speed	10-20 bottles/min
Suitable bottle diameter	≧4 mm
Suitable bottle height	≧10 mm
Voltage	220 V,50 Hz(customize)
Dynamic mode	Pneumatic ( air compressor )
Machine size	45×45×165 cm
Machine weight	65 kg

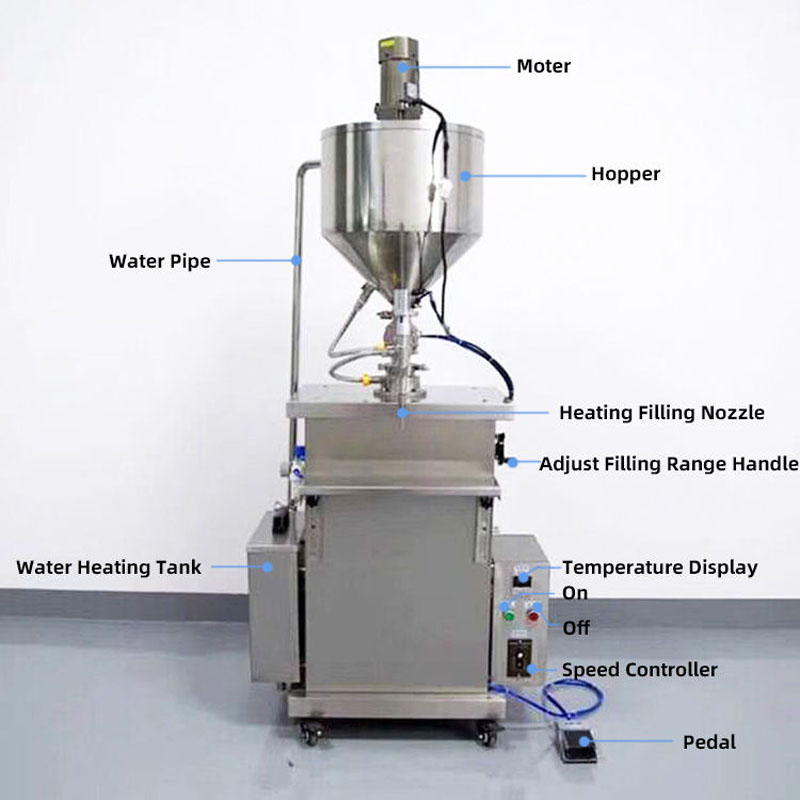

Main Features

• Equipped with cylindrical jacketed hopper featuring electric heating and temperature control to maintain stable material viscosity during the filling process.
• Integrated paddle stirring system ensures uniform mixing and prevents material separation or sedimentation during continuous operation.
• Constructed with SUS316L stainless steel for all material contact parts, fully complying with GMP hygiene and safety requirements.

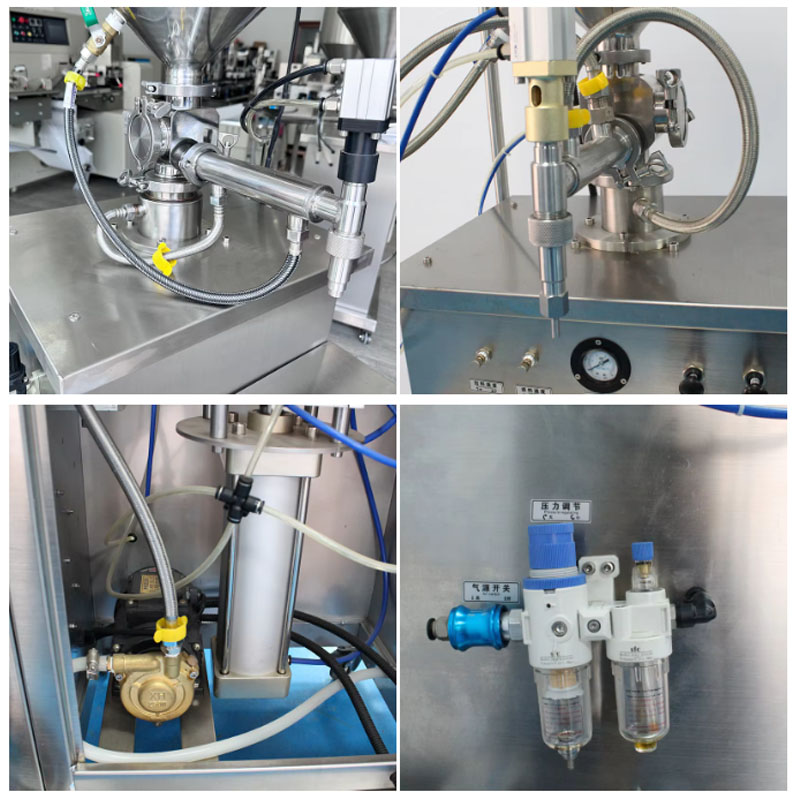

• Pneumatic filling control system provides stable operation with improved speed and accuracy compared to traditional mechanical filling systems.
• Anti-drip filling nozzle design effectively prevents material leakage and ensures clean and precise filling results for viscous products.
• Adjustable filling volume and speed control system allows flexible operation and high precision dosing for different production requirements.

Application Scenarios

• Cosmetic industry: suitable for filling vaseline, foundation cream, lipstick and other viscous beauty products.
• Pharmaceutical industry: used for ointments, medical creams and semi-solid drug packaging.
• Food industry: ideal for jam, paste and heated food products requiring precise filling.
• Chemical industry: applicable for wax, adhesive paste and other high viscosity chemical materials.

FAQ

1. What materials can this machine handle?
It is suitable for high viscosity paste materials such as vaseline, creams, wax and jam products.

2. Does the machine include heating function?
Yes, it is equipped with electric heating and temperature control to maintain material fluidity.

3. Is the filling volume adjustable?
Yes, the filling volume and speed can be easily adjusted according to production needs.

4. What control system does it use?
It uses pneumatic control combined with adjustable filling parameters for stable and precise operation.
