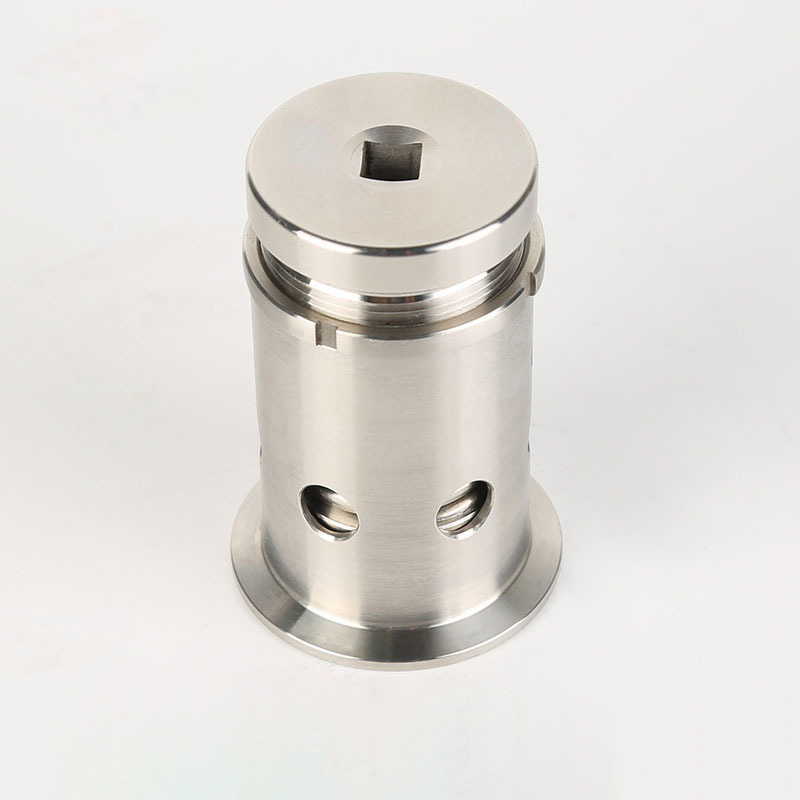

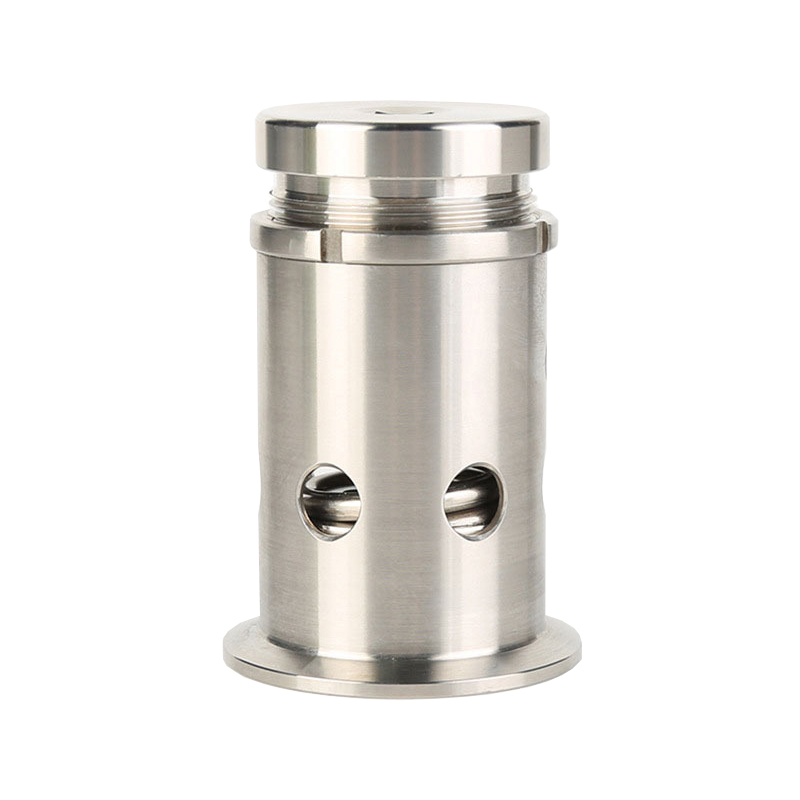

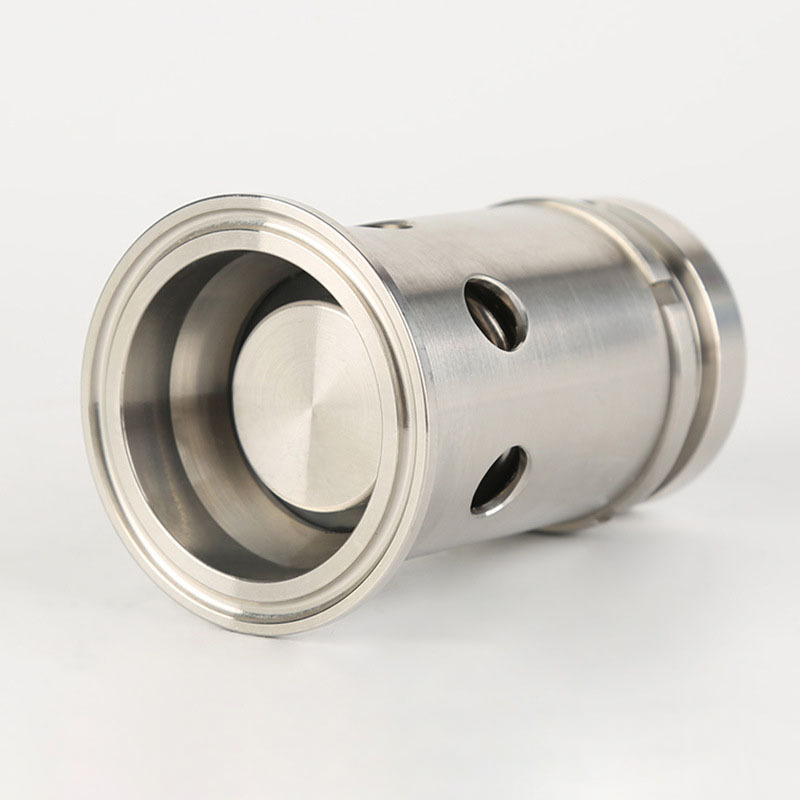

1.5″ Medical breathing valve PVRV sanitary plunger valve stainless steel regulating breathing valve
The valve is used in pressure vessel piping system. The breathing valve has two functions. When the pressure is higher than the set pressure (standard 1BAR), it can exhaust, otherwise it is closed. When a vacuum (standard -0.2BAR) is generated in the pipeline system, the valve will automatically open to ensure the safety protection of equipment and related instruments, and it can also meet the needs of various production processes.
The valve is made of stainless steel and has a hygienic design, which is suitable for various industrial fields such as food processing, beer, beverage and pharmaceuticals.
$75.99
Compare
| NO | NAME | MATERIAL |
| 1 | Valve body | SS304 |
| 2 | Valve core | SS304 |
| 3 | Gasket | EPDN |
| 4 | Valve core seat | SS304 |
| 5 | negative pressure spring | SS304 |
| 6 | positive pressure spring | SS304 |
| 7 | screw cover | SS304 |
| Size | D2 | D1 | D3 | H |
| 1.5’’ | Φ50.5 | Φ35 | Φ42 | 72 |
| 2’’ | Φ64 | Φ47 | Φ51 | 85 |
| 2.5’’ | Φ78 | Φ59 | Φ64 | 90 |
Based on 0 reviews
Be the first to review “1.5″ Medical breathing valve PVRV sanitary plunger valve stainless steel regulating breathing valve”
