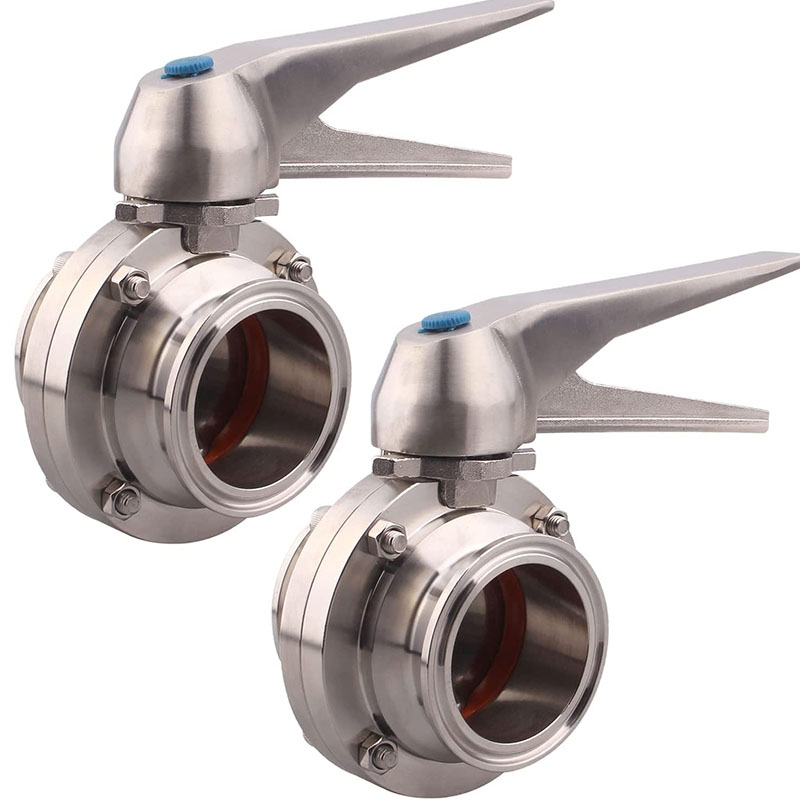

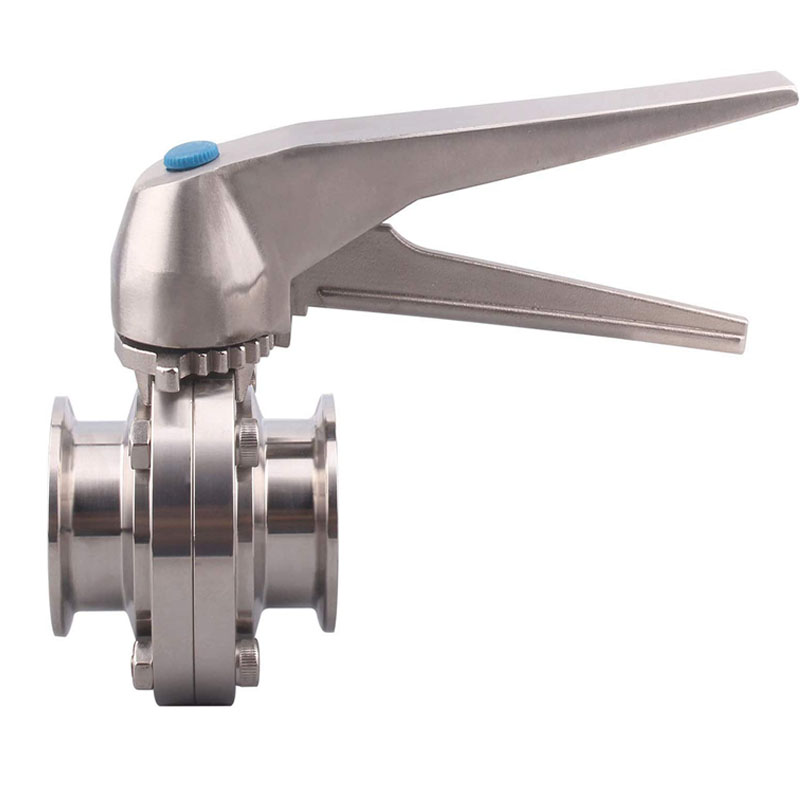

1.5 Inch Tri Clamp Clover Butterfly Valve with Trigger Handle Sanitary Fitting Stainless Steel 304 Butterfly Valve

Material ：Stainless Steel
Exterior Finish： Stainless Steel
Inlet Connection Type： Tri-clamp
Number of Ports ：2

Tube OD: 1-1/2 Inch, Ferrule Size: 50.5MM, Fits 1.5 Inch Tri-clamp
The Trigger style handle butterfly valve – 13 Positions
Temperature Rating (spec): 15°F thru 200°F; Material (spec): 304 Stainless Steel
Tri-Clamp butterfly valve Max Pressure 1.6MPA, 100 Percent pressure hydraulic tested for reliability
The Trigger style handle allows you to set the valve in four different positions simply by pulling and turning

Features
Material:butterfly valve is made of corrosion resistant stainless steel 304.
Size:Tube OD: 2 Inch, Ferrule Size: 64MM, Fits 2 Inch Tri-clamp
Trigger Handle
The Trigger style handle allows you to set the valve in 13 different positions simply by pulling and turning.

DESCRIPTION
Tri Clamp butterfly valves are an elegant and dependable solution for either a shutoff service, or as a flow control valve to reduce volume. Designed for Tri Clamp fittings and made from stainless steel SS304, our trigger handle series butterfly valves feature a blue handle with 13 locking positions, that allow flow control typically desired on a racking arm. 100 Percent tested / 100 percent inspected. 100 Percent pressure hydraulic tested for reliability. Actuation available: double-acting, air-to-spring, electric.
The butterfly valve is a type of flow control device, used to make a fluid start or stop flowing through a section of pipe. It is well applied to stainless steel pipe systems for food beverage, dairy, brewing, pharmaceuatical, bio-pharmaceuatical and chemical industries.

Max Pressure:1.6MPA
Temperature Rating (spec): 15°F thru 200°F
Demountable: The body can be taken apart.
Pack:2

We have been engaging in manufacturing commercial brewery, winery and food processing equipment like sanitary valves, fittings, tank components and pumps for many years. We uses advanced numerical control machine tools, processing and testing facilities to ensure the high quality of our products. All Products are manufactured in accordance with different surface finishes, materials and industry standards including ISO, DIN, IDF, SMS, etc. We manufacture a wide range of stainless steel sanitary valves and fittings such as stainless steel butterfly valves, sanitary ball valves, sanitary check valves, sanitary sight glasses, tube adapter and pipe connectors, etc.
