0.5TPH RO Water Purifier System for Drinking Water SS304
This 0.5TPH RO Water Purifier System is designed for drinking water treatment in industrial and commercial applications. It removes dissolved salts, bacteria, heavy metals, and impurities using advanced RO membrane technology. Equipped with a stainless steel structure and intelligent control system, it ensures stable performance and reliable water quality.
Compare
Product Introduction RO Water Purifier System
The 0.5TPH RO Water Purifier System is a compact water treatment unit designed for purified drinking water production. With a capacity of 0.5 tons per hour and constructed from high-quality stainless steel, it is suitable for continuous operation in hygienic environments.
This system is used to remove dissolved solids, microorganisms, heavy metals, and other contaminants from raw water sources, ensuring safe and clean drinking water output. It supports stable purification performance and consistent water quality.
It is suitable for drinking water plants, food processing facilities, and commercial users requiring reliable purified water systems.
Technical Specifications
| Item | Parameter |
| Product Name | Reverse Osmosis Water Treatment Equipment |
| Production Capacity | 0.5t/h |
| Core Components | Pump, Gears, Bearings, PLC |
| Weight (KG) | 450 kg |
| Color Usage | Plant, Industrial, Beverage |
| Operation | Automatic Operation |
| Features | Softening Resin |
| Technology | Reverse Osmosis Membrane Filtration |
Working principle

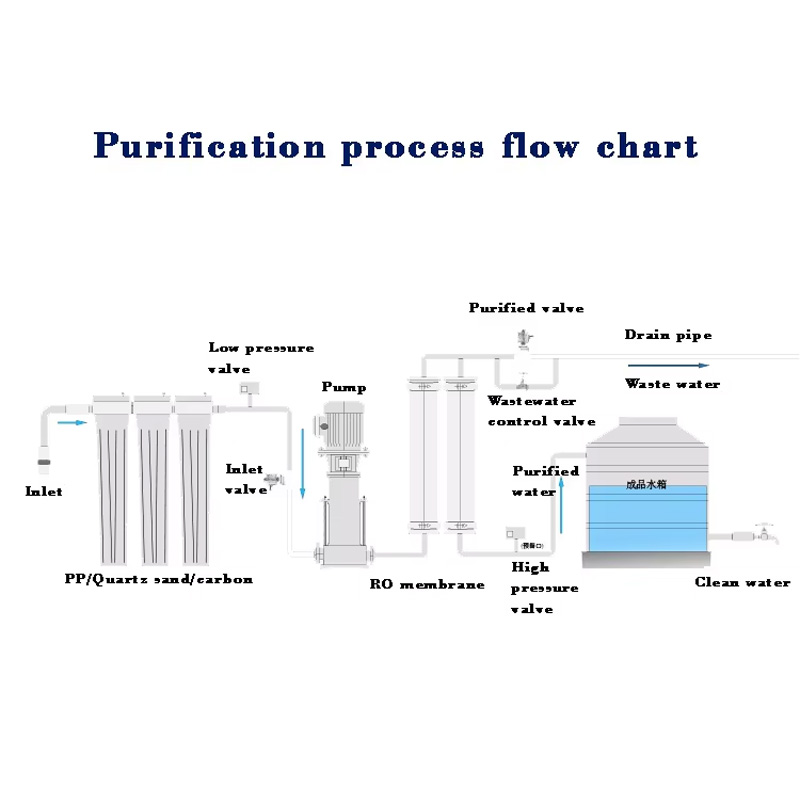

The system uses a high-pressure pump to push raw water through a semi-permeable reverse osmosis membrane. The membrane allows water molecules to pass while rejecting impurities such as dissolved salts, bacteria, viruses, and heavy metals. Pre-treatment stages remove suspended particles and chlorine to protect the membrane. The purified water is collected, while concentrated contaminants are discharged.
Main features
- Food-grade stainless steel 304 construction ensures hygienic operation, corrosion resistance, and long service life
- High-efficiency RO membrane effectively removes impurities, bacteria, viruses, and heavy metals from water
- Intelligent microcomputer control system enables automatic operation and real-time monitoring of system status
- Clear display control panel allows operators to easily track and manage equipment performance during operation
- High-quality pipe fittings and copper valves ensure reliable sealing and stable long-term operation
- Compact structure design supports easy installation and convenient maintenance in limited spaces
Application scenarios
- Drinking water purification systems for industrial and commercial use
- Bottled water and packaged drinking water production lines
- Food and beverage processing water supply systems
- Hotels, restaurants, and centralized water supply systems
- Schools, hospitals, and public facility water purification
- Groundwater and tap water deep purification treatment
- Small-scale water treatment plants and auxiliary purification systems
FAQ
-
Q: Is this system made of SS304 material?
A: Yes, key parts are made of food-grade SS304 stainless steel.
-
Q: Is this RO system specially for drinking water?
A: Yes, it is designed for producing safe and clean drinking water.
-
Q: What impurities can this 0.5TPH RO system remove?
A: It removes bacteria, heavy metals, salts and suspended solids.
-
Q: Does the system support automatic operation?
A: Yes, it supports fully automatic operation and backwashing.
-
Q: How often should the RO membrane be replaced?
Contact us to get your quotation now.
Get in touch with our engineering team.
