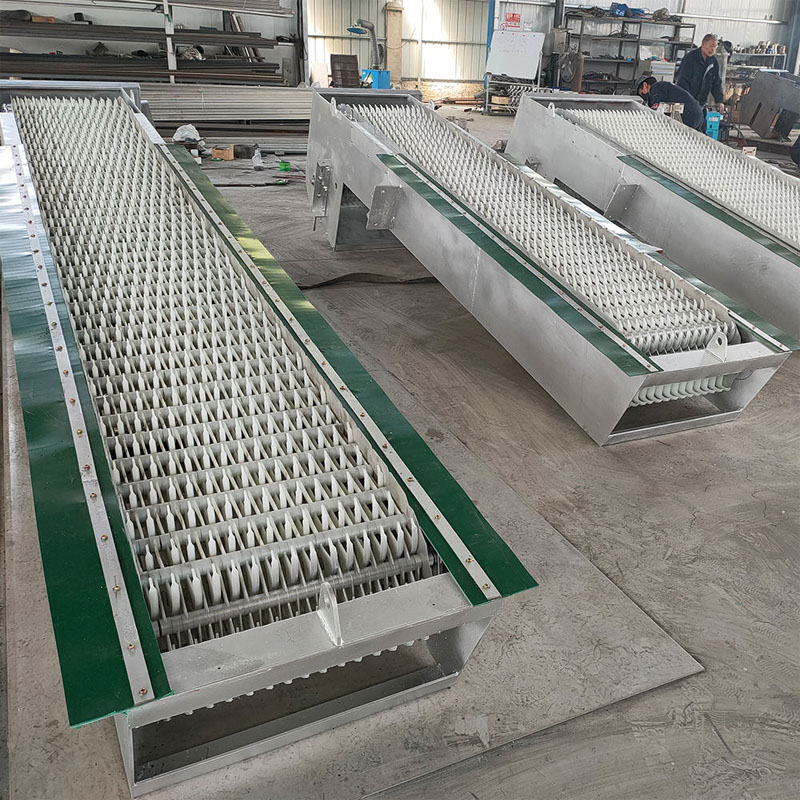

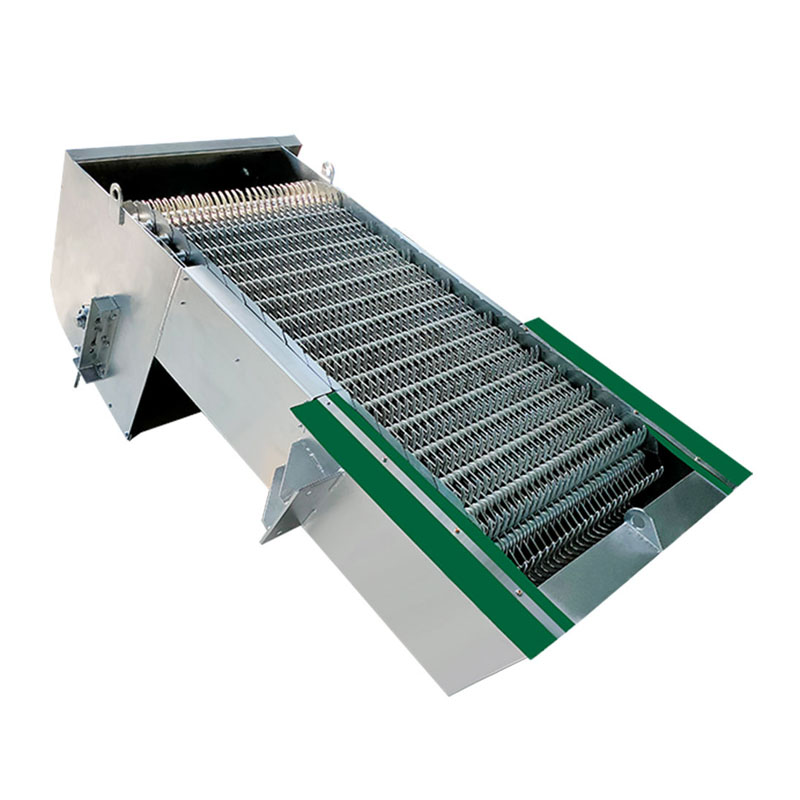

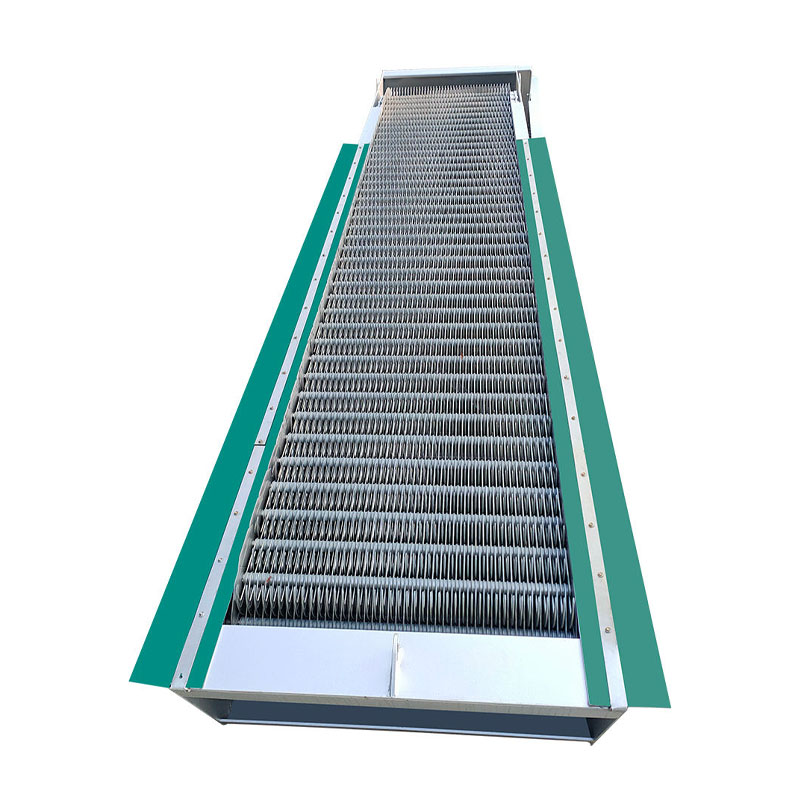

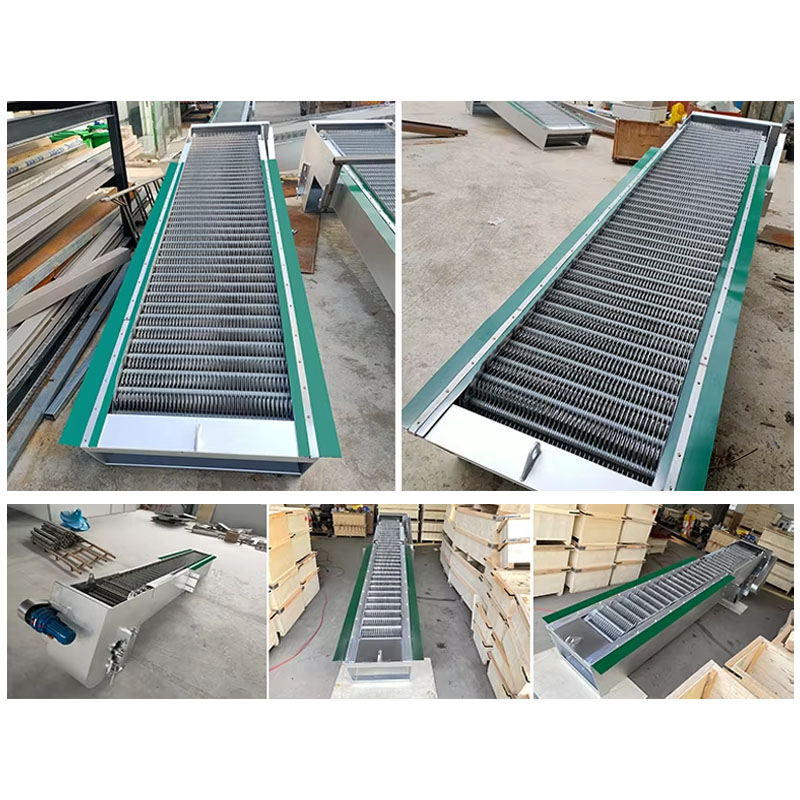

Rotary Solid Liquid Separator for Wastewater Treatment SS304
Rotary solid liquid separator is a high-efficiency mechanical bar screen designed for continuous wastewater pretreatment. It uses a rotating rake chain made of ABS, nylon, or stainless steel to intercept and remove solid debris from liquid flow. With self-cleaning function, automatic operation, and corrosion-resistant materials, it ensures stable performance under complex conditions. Suitable for municipal and industrial wastewater treatment plants, it achieves over 95% solid removal efficiency with low energy consumption and reliable operation.
Compare
Product introduction of Rotary Solid Liquid Separator
Rotary solid liquid separator, also known as rotary bar screen, is installed in wastewater channels for continuous solid-liquid separation. The rake chain operates at a speed of 2 m/min and can be installed at angles of 60°–80° depending on site conditions.
As wastewater flows through the channel, rake teeth lift solid debris upward. At the top, a self-cleaning mechanism removes trapped materials, ensuring continuous operation without clogging.
The system supports automatic control via liquid level difference or timer, making it suitable for unmanned operation in modern wastewater treatment plants.
Working principle
Step 1: Wastewater Inflow
Wastewater enters channel and flows through submerged rake section.
Step 2: Solid Capture
Rake teeth capture floating and suspended solids from water.
Step 3: Upward Conveying
Rake chain lifts debris upward at controlled speed (2 m/min).
Step 4: Self-Cleaning Process
At top rotation point, debris is automatically removed by gravity and brush system.
Step 5: Discharge & Separation
Separated solids fall into collection bin, while water passes through gaps.

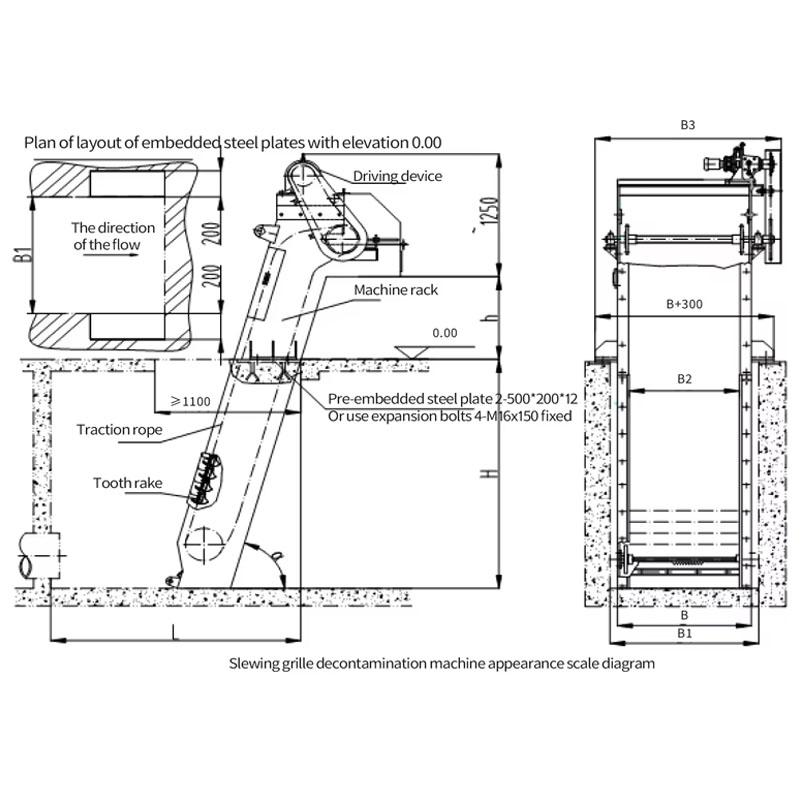

Product Parameter Table
| Project | Parameter |
| Equipment width (mm) | 1500 |
| Effective gate width B2 | B2=B-160 |
| Total equipment width B3 | B3=B+350 |
| Effective gap | 2,3,5,8,10,15,20 |
| Rake chain speed | 2 m/min |
| Motor power (kW) | 1.5-3 |
| Installation degree α (°) | 60° 65° 70° 75° 80° |
| Grille width B1 | B1≥B+70 |
| Tube depth H (mm) | 800-1500 |
| Slag discharge height h (mm) | 400-1500 |
Comparison With Other Screening Systems
| System Type | Efficiency | Maintenance | Automation | Clogging Risk | Application |
|---|---|---|---|---|---|
| rotary solid liquid separator | very high | low | fully automatic | very low | municipal + industrial |
| manual bar screen | low | high | none | high | small systems |
| static screen | medium | medium | partial | medium | basic pretreatment |
| drum screen | high | medium | automatic | low | industrial wastewater |
Main Features
- High interception efficiency above 95% for solid waste removal
- Continuous automatic operation with no manual intervention required
- Self-cleaning rake chain prevents clogging and secondary pollution
- Corrosion-resistant materials including stainless steel, nylon, ABS
- Low energy consumption optimized transmission system
- Customizable gap spacing for different wastewater conditions
- Flexible installation angles from 60° to 80°
- Overload protection ensures safe and stable operation
- Suitable for high load industrial wastewater environments
- Compact design suitable for limited installation space
Application Scenarios
- Rotary solid liquid separator for municipal wastewater treatment for removing floating debris and protecting downstream pumps
- Rotary bar screen for food industry wastewater for preventing pipeline blockage and improving processing stability
- Mechanical rake screen for paper mill wastewater for removing fibers and reducing equipment wear
- Wastewater pretreatment screen for chemical industry effluent for improving biological treatment efficiency
- Rotary solid liquid separator for stormwater pumping stations for preventing clogging during heavy rainfall
- Industrial screening system for landfill leachate treatment for reducing solid load and system failure risk
Why Choose Rotary Solid Liquid Separator
- High efficiency screening improves entire wastewater treatment stability
- Fully automatic operation reduces labor and operational cost
- Self-cleaning structure ensures long-term clog-free performance
- Strong adaptability to harsh industrial wastewater environments
- Energy-saving design reduces long-term operating cost
- Flexible customization for different flow rates and installation angles
- Proven technology widely used in municipal and industrial projects
FAQ
1. What is rotary solid liquid separator used for in wastewater treatment?
It is used for continuous removal of solid debris from wastewater in pretreatment systems.
2. How does rotary solid liquid separator bar screen work?
It uses a rotating rake chain to lift and separate solid waste from liquid flow automatically.
3. What is rake chain speed in rotary bar screen system?
The standard rake chain speed is about 2 m/min depending on application requirements.
4. What installation angle is used for rotary solid liquid separator?
It can be installed at 60°, 65°, 70°, 75°, or 80° depending on site conditions.
5. What materials are used in rotary solid liquid separator screen?
ABS, nylon, and stainless steel are commonly used for corrosion resistance and durability.
6. What is rotary solid liquid separator price for wastewater plant?
Cost depends on capacity, material, and customization requirements.
7. What is difference between rotary screen and manual bar screen?
Rotary screen is automatic and self-cleaning, while manual screen requires human operation.
8. Who is rotary solid liquid separator manufacturer or supplier?
Manufacturers provide customized solutions based on wastewater flow and project requirements.
Contact us to get your quotation now.
Get in touch with our engineering team.
Related products
-
Industrial Water Treatment Equipment
15–20 m³/h DAF System for Industrial Greywater Treatment
The 15–20 m³/h DAF system is designed for efficient solid-liquid separation in industrial wastewater and greywater treatment. It removes suspended solids, oil, and colloidal particles using dissolved air flotation and microbubble adhesion. Suitable for manufacturing plants, food processing facilities, and municipal pretreatment, the system combines flotation and inclined plate settling to improve separation efficiency. It supports stable effluent clarification while reducing sludge volume for downstream handling processes.
SKU: n/a -
Water Filtration Systems

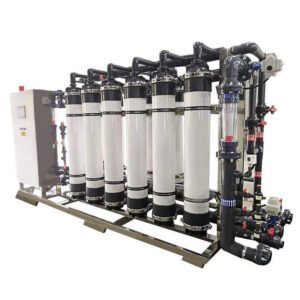

UF Ultrafiltration System for Water Recycling and Purification
