310–1110 m³/h Rotary Drum Filter for Industrial Wastewater

Product introduction of 310–1110 m³/h Rotary Drum Filter

The 310–1110 m³/h rotary drum filter is a channel installed screening system used for preliminary wastewater treatment in municipal and industrial facilities. It is constructed from corrosion resistant stainless steel and operates at an inclined installation angle of approximately 35 degrees. The system combines solid interception, sludge lifting, and mechanical pressing within a single rotating drum structure. Wastewater enters the drum, where liquid passes through fine slots while solids are retained and transported upward. Integrated brushing and spray cleaning maintain screen performance. It is suitable for high flow wastewater streams requiring reliable pretreatment and reduced organic load.

Working principle

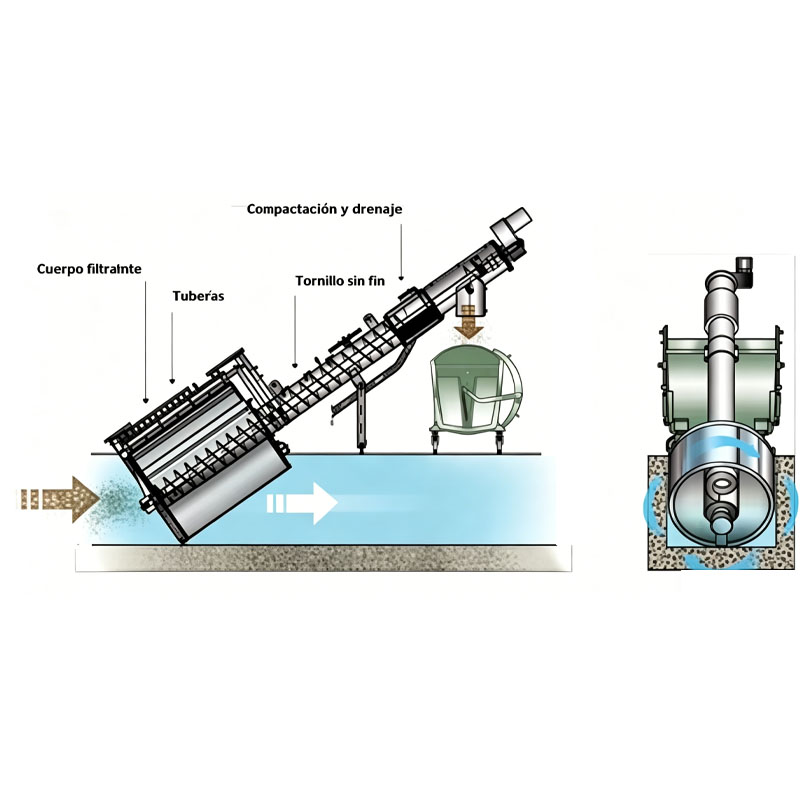

Wastewater enters a rotating drum screen installed in a channel at an inclined angle. Liquid passes through the perforated drum surface under hydraulic flow, while solids are retained on the screen.

During rotation, retained solids are lifted, dewatered, and conveyed by a screw mechanism to the discharge outlet. A built-in spray system periodically cleans the screen surface to maintain permeability.

Filtered water flows out for further treatment, ensuring continuous separation of solids and liquids under stable operating conditions.

Product Parameter Table

Drum diameter D	1200 mm
Drum length L1	1200 mm
Highest water level H4	800 mm
Motor power	1.5 kW
Installation angle	35°
Drainage depth H1	600-3000 mm
Height of slag discharge port H2	Design according to customer requirements
H3	Determined by the form of reducer
Equipment installation height H	H=H1+H2+H3 (mm)
Installation length A	A=H×1.43-0.48D (mm)
Total length of equipment L	L=H×1.74-0.75D (mm)
Overwater Flow Parameters (m³/h)
Grid gap 0.5 mm	310
Grid gap 1 mm	510
Grid gap 2 mm	765
Grid gap 3 mm	935
Grid gap 4 mm	1010
Grid gap 5 mm	1110

Main Features

• Integrated screening and dewatering process reduces equipment footprint and simplifies pretreatment system design
• Stainless steel construction provides high resistance to corrosion and ensures long operational durability
• Rotating drum mechanism enables continuous interception and transport of suspended solids without interruption
• Integrated spray and brush cleaning system maintains stable filtration performance under variable loading conditions
• Screw assisted conveying structure improves efficiency of sludge lifting and dewatering process
• Suitable for shallow channel installation with flexible adaptation to municipal and industrial infrastructure

Application Scenarios

• Municipal wastewater treatment plants for primary screening and solids removal in inlet channels
• Industrial wastewater systems in food processing, paper production, and textile manufacturing facilities
• Slaughterhouse and organic wastewater pretreatment requiring fiber and debris separation
• Surface water intake protection systems for downstream equipment safeguarding
• High flow sewage channels requiring continuous mechanical screening and dewatering

FAQ

1. What functions are integrated in this rotary drum system?
It integrates screening, conveying, and mechanical dewatering in one unit.

2. Can it handle high flow wastewater conditions?
Yes, it is designed for large flow rates from 310 to 1110 m³/h.

3. What materials are used in construction?
The system is made entirely of stainless steel for corrosion resistance.

4. Does it require frequent manual cleaning?
No, it uses automatic brushing and spray rinsing for self cleaning.
