The travelling band screen system is a high efficiency wastewater intake filtration equipment designed for municipal and industrial applications. It achieves 80–97% separation efficiency with a flow capacity of up to 6500 m³/day. Featuring a 2 mm filter belt opening, the system effectively removes fibers, debris, and suspended solids, ensuring stable performance in continuous fine screening processes.
Compare
Product introduction of Travelling Band Screen System
The travelling band screen system for wastewater intake filtration is an advanced center flow fine screening equipment designed for high efficiency solid-liquid separation.
It operates with a 2 mm filter belt hole diameter, ensuring precise interception of fibers, strips, and suspended solids that are difficult to remove using conventional screens.
The system delivers a separation efficiency of 80–97%, with a treatment capacity of up to 6500 m³/day, making it suitable for municipal sewage plants and industrial wastewater pretreatment systems.
Wastewater enters the center flow chamber and passes through both sides of the screen surface. Solids are intercepted inside the filter belt, while treated water flows out smoothly. Accumulated solids are automatically lifted and discharged through an intermittent mechanical movement system.
Working principle
The travelling band screen system operates using a center flow fine screening process with a 2 mm filter belt.
Working process:
This ensures continuous filtration with stable performance and minimal clogging risk.
Product Parameter Table
| Filter accuracy | Φ1~6 mm |
| Separation efficiency | 80-97% |
| Screen power(kW) | 1.1-3 |
| Compactor power(kW) | 2.2-5.5 |
| Device width W(mm) | 1200 |
| Filter belt length(mm) | 400-3000 |
| Total height of equipment(mm) | H1+H2+1300 |
| Channel width W1(mm) | 1300-2500 |
| Channel depth H1(m) | 1-3 |
| Maximum temperature of medium(℃) | 0-60 |
| Discharge height H2(m) | customize(standard:1m) |
| Medium pressure flushing water pressure(bar) | 4-8 |
| Main material | 304 |
Main Features
Travelling Band Screen vs Rotary Drum Screen
| Feature | Travelling Band Screen | Rotary Drum Screen |
|---|---|---|
| Separation efficiency | 80–97% | 70–90% |
| Flow capacity | Up to 6500 m³/day | Medium-high |
| Fiber removal | Excellent | Good |
| Maintenance | Lower | Medium |
| Structure | Center flow band system | Rotating drum system |
Conclusion: travelling band screen provides higher efficiency for fiber-rich wastewater.
Travelling Band Screen vs Static Screen
| Feature | Travelling Band Screen | Static Screen |
|---|---|---|
| Operation | Automatic mechanical | Gravity only |
| Efficiency | High (80–97%) | Medium |
| Clogging risk | Low | Medium |
| Application | High load intake systems | Low load pretreatment |
Application Scenarios
Why Choose Travelling Band Screen System
FAQ
1. What is the separation efficiency of a travelling band screen system?
The travelling band screen system achieves a separation efficiency of 80–97% in wastewater intake filtration applications.
2. What is the flow capacity of a travelling band screen system?
It can handle wastewater flow rates up to 6500 m³/day depending on application conditions.
3. What is the filter belt hole size used in travelling band screens?
The standard filter belt opening is 2 mm for fine solid-liquid separation.
4. What type of solids can be removed by travelling band screen system?
It can remove fibers, strips, debris, and suspended solids from wastewater.
5. Is travelling band screen suitable for municipal wastewater plants?
Yes, it is widely used in municipal sewage treatment and intake filtration systems.
6. How does a travelling band screen achieve high efficiency?
It uses center flow design and fine mesh filtration to improve interception performance.
7. Does the system require frequent maintenance?
No, it uses automatic operation with low maintenance requirements.
8. What industries use travelling band screen filtration systems?
It is used in municipal, industrial, food, textile, and water intake protection systems.
Contact us to get your quotation now.
Get in touch with our engineering team.

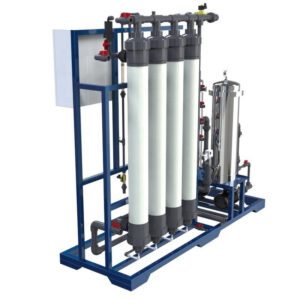

Our hollow fiber UF membrane features permanent hydrophilicity, providing high water flux even at low trans-membrane pressure. It effectively removes micro-organisms, colloids, algae, and turbidity substances. Made from high-quality improved PVC, the membrane resists acid, alkali, organic solvents, grease, and aging. Its excellent mechanical strength and durability ensure long service life, while multi-method cleaning restores membrane flux. Each module undergoes air-water inspection to guarantee no broken or leaking fibers, making it ideal for ultrafiltration water treatment systems.
