Rubber Belt Vacuum Filter for Mining Sludge Dewatering System
Rubber belt vacuum belt filter press is a continuous high-efficiency solid-liquid separation system designed for industrial sludge dewatering. It uses a fixed vacuum box and moving filter belt to generate stable negative pressure filtration, achieving efficient moisture removal and consistent cake formation. The system integrates feeding, filtration, washing, dewatering, discharge and cloth regeneration in one automatic process, suitable for large-scale mining, chemical, FGD gypsum and wastewater treatment applications.
Compare

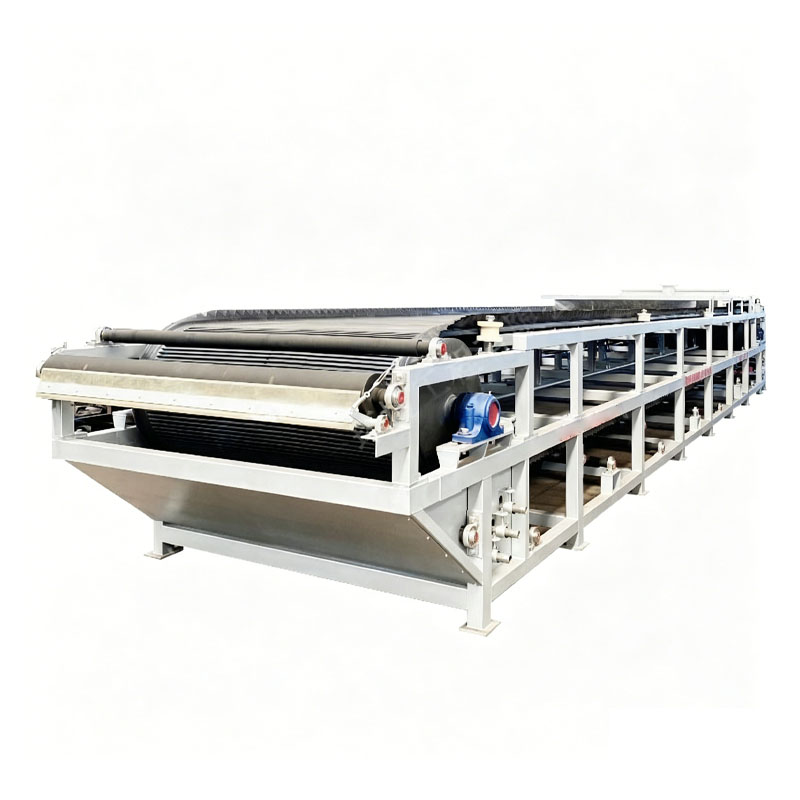

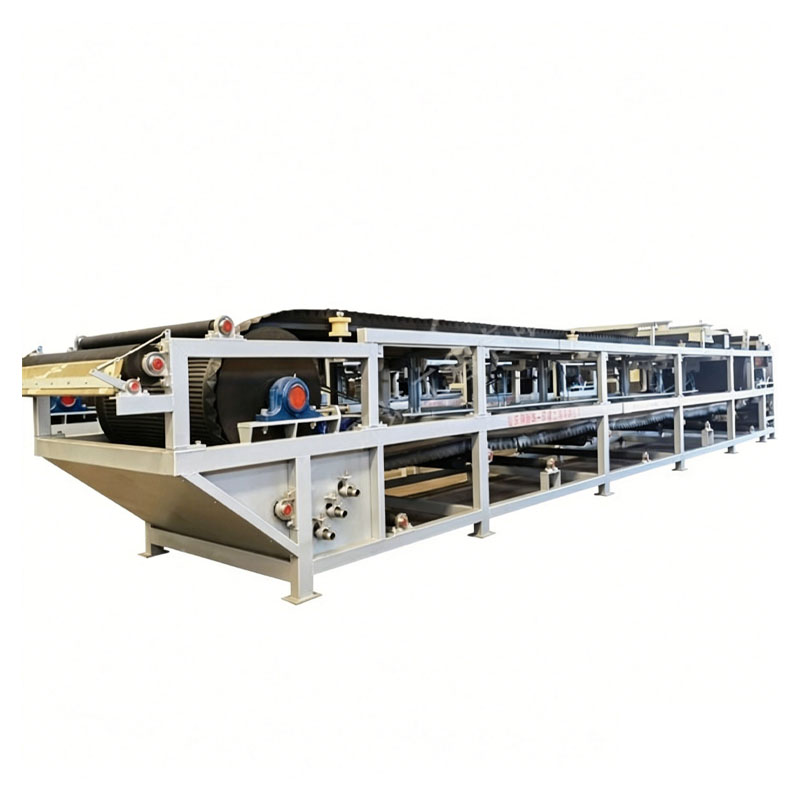

Rubber Belt Vacuum Filter Product Introduction
Rubber belt vacuum belt filter press is an advanced continuous vacuum filtration equipment for industrial solid-liquid separation. It combines a high-strength filter belt with a fixed vacuum chamber to create stable vacuum pressure for efficient slurry dewatering.
This system is widely used in industries requiring large-capacity, continuous operation and low moisture output, especially for difficult-to-filter materials such as fine mineral slurry, chemical sludge and FGD gypsum.

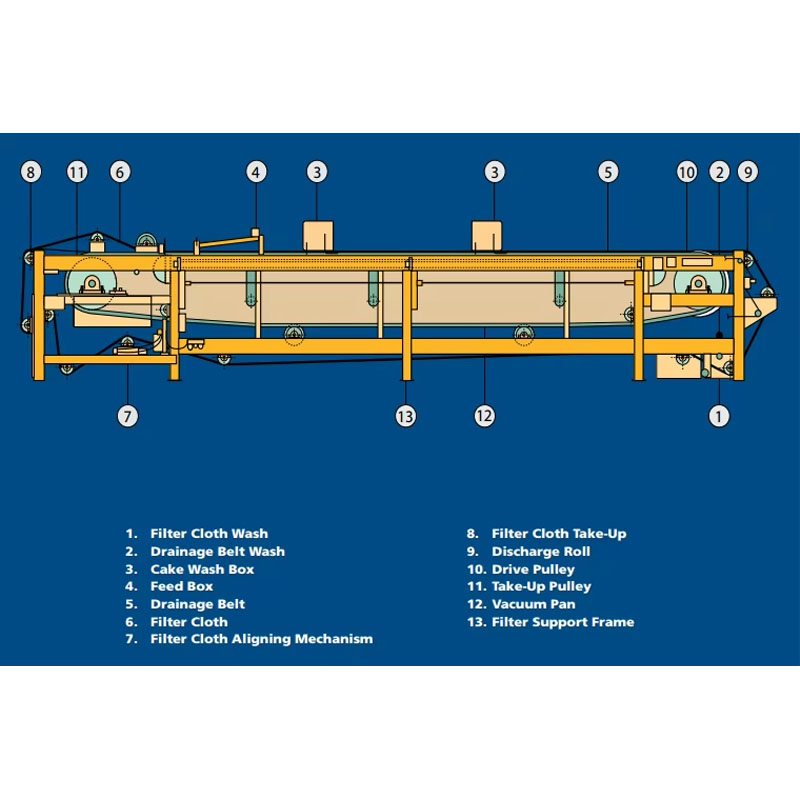

Working principle
Step 1: Slurry Feeding
Slurry is evenly distributed onto the moving filter belt.
Step 2: Vacuum Filtration
Vacuum box creates negative pressure, extracting liquid through filter medium.
Step 3: Washing Section
Multi-stage washing removes impurities and improves filtrate purity.
Step 4: Dewatering Zone
Extended vacuum area enhances moisture removal efficiency.
Step 5: Cake Discharge
Dry filter cake is continuously discharged at the end of belt.
Step 6: Belt Cleaning & Regeneration
Filter cloth is cleaned for continuous stable operation.
Product Parameter Table
| width of filter cloth (mm) | 1700 |
| filter area (m²) | 20 |
| power of motor(kW) | 7.5 |
| size (m) | 15.7×2.2×1.5 |
Main Features
- Modular design supports flexible installation and easy system expansion
- Fully automatic operation integrates feeding, filtering, washing and discharge
- Adjustable vacuum level, belt speed and cake thickness control
- Multi-stage countercurrent washing improves filtrate clarity and reuse efficiency
- Stable continuous operation ensures consistent dewatering performance

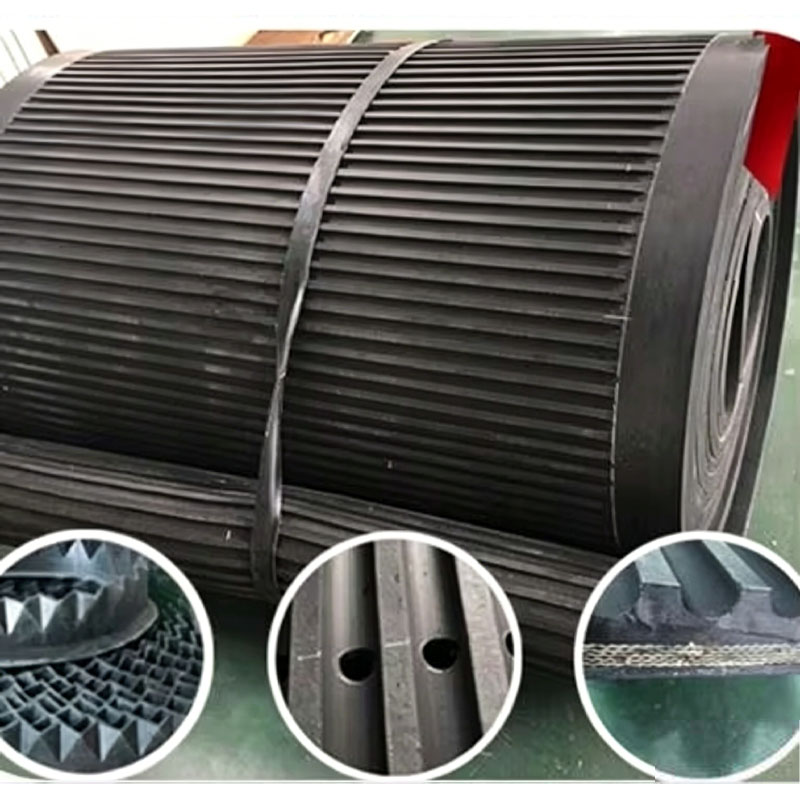

- Wear-resistant filter belt ensures long service life in harsh environments
- Low energy consumption compared with centrifuge dewatering systems
- High filtration efficiency for fine particles and high-moisture sludge
Technical Performance
- Processing capacity: large-scale continuous industrial operation
- Vacuum level: adjustable for optimized dewatering efficiency
- Filter cake moisture: low and stable output depending on slurry type
- Operation mode: fully continuous automatic system
- Suitable particle size: fine to medium industrial slurry
Comparison With Other Dewatering Equipment
| Equipment | Operation Mode | Efficiency | Energy Use | Application |
|---|---|---|---|---|
| Rubber belt vacuum filter press | Continuous vacuum | High & stable | Low | Large industrial sludge |
| Belt filter press | Mechanical pressure | Medium | Medium | General sludge |
| Chamber filter press | Batch pressure | High but intermittent | High | Small/medium batch |
| Centrifuge | High-speed rotation | High | Very high | Fine separation, high cost |
Application Scenarios
Rubber belt vacuum belt filter press is widely used in industrial solid-liquid separation and sludge dewatering systems:
- Mining tailings slurry dewatering
- Metallurgy and ore beneficiation wastewater treatment
- Chemical industry sludge separation
- Paper mill fiber and sludge recovery
- Coal washing wastewater treatment
- Food and pharmaceutical process sludge
- Environmental protection wastewater treatment systems
Why Choose Rubber Belt Vacuum Belt Filter Press
- Continuous operation improves production efficiency significantly
- Lower energy consumption than centrifuge dewatering systems
- Better washing performance than conventional belt filter presses
- Stable performance for high-volume industrial sludge processing
- Reduced labor cost due to full automation system design
- Suitable for complex slurry types including fine particles
FAQ
1. What is rubber belt vacuum belt filter press used for in wastewater treatment?
It is used for continuous sludge dewatering and solid-liquid separation in wastewater treatment systems.
2. How does rubber belt vacuum belt filter press work in FGD gypsum dewatering?
It uses vacuum negative pressure to remove moisture from calcium sulfate slurry in power plants.
3. What industries use rubber belt vacuum belt filter press equipment?
It is widely used in mining, metallurgy, chemical, coal washing and environmental industries.
4. What is the difference between vacuum belt filter press and belt filter press?
Vacuum belt filter press uses negative pressure filtration, providing higher and more stable dewatering efficiency.
5. What is the capacity of rubber belt vacuum belt filter press system?
It supports large-scale continuous industrial processing with adjustable capacity based on project design.
6. How to improve sludge dewatering efficiency of vacuum belt filter press?
Adjust vacuum level, belt speed, washing stages and slurry feed concentration for optimal results.
7. Is rubber belt vacuum belt filter press suitable for mining tailings?
Yes, it is highly effective for mining tailings slurry and fine particle dewatering applications.
8. What is the price of rubber belt vacuum belt filter press system?
Price depends on capacity, material configuration and industrial application requirements.
Contact us to get your quotation now.
Get in touch with our engineering team.
