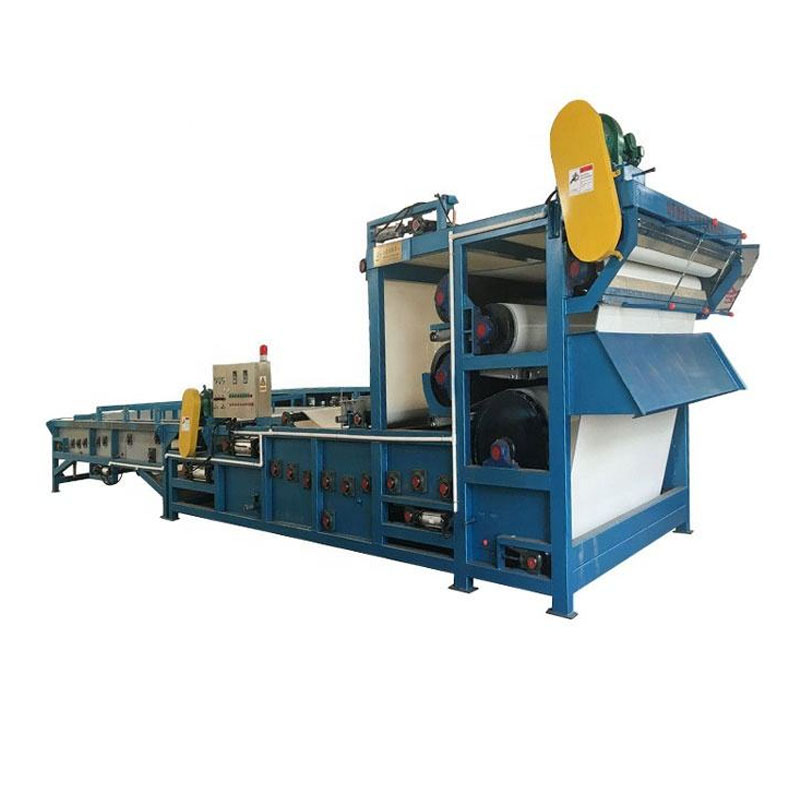

30-35 m³/h Belt Filter Press For Sludge Thickening Process

Product introduction of 30-35 m³/h Belt Filter Press

The 30–35 m³/h belt filter press is an industrial sludge dewatering machine designed for continuous solid-liquid separation in wastewater treatment applications. It processes chemically conditioned sludge through four functional stages: flocculation conditioning, gravity thickening, wedge zone pre-dewatering, and high-pressure belt compression. The equipment is suitable for municipal, industrial, mining, and mineral processing sludge with varying solid concentrations. Built with stainless steel structural components and tensioned filter belts, it ensures stable operation, long service life, and efficient moisture reduction, making it suitable for large-scale sludge treatment and resource recovery systems.

Working principle

Sludge is first chemically conditioned to improve floc formation. It is then fed into the gravity zone where free water drains through the belt. The material moves into the wedge zone for pre-compression and stabilization. Finally, it enters the high-pressure zone where two tensioned belts pass through multiple rollers, applying shear and compression forces to remove bound water. The result is a dewatered filter cake with reduced moisture content and separated filtrate for further treatment.

Product Parameter Table

Belt Width	2000 mm
Treating Capacity (Inlet Consistency S.S 1-5%)	30-35 m³/h
Dried Sludge	240-450 kg/h
Mud Cake Water Content’s Rate	75-85 %
Driving Motor (frequency control) Power	0.75 kW
Disposal Agitator Motor Power	0.75 kW
Drum thickener Power	1.1 kW
Lower Collecting Tray for Pressed Filtrate	No
External Dimensions – L	5150 mm
External Dimensions – W	2750 mm
External Dimensions – H	3190 mm
Base Dimension L1×W1	2715×2420 mm
Base Dimension L2×W2	950×1100 mm
Reference Weight	3500 kg

Main Features

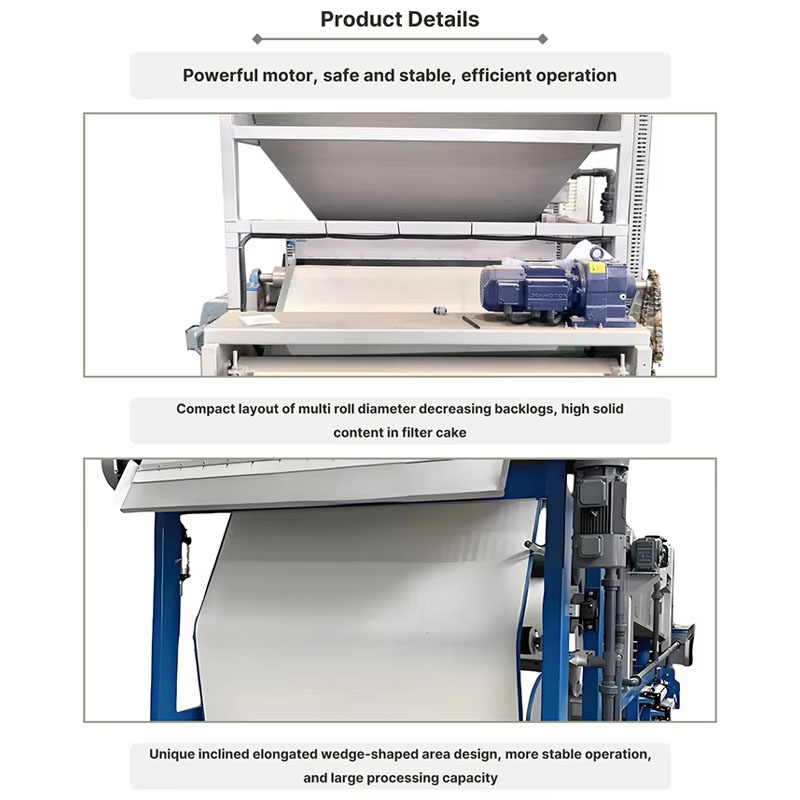

• Multi-stage dewatering design integrates gravity, wedge, and pressure zones for progressive moisture reduction and stable cake formation.
• Adjustable wedge compression structure allows flexible adaptation to different sludge types and variable solid concentration conditions.
• Stainless steel frame and roller construction provides mechanical durability under continuous industrial operating environments.
• Low energy consumption drive system reduces operational cost while maintaining consistent sludge processing performance.
• Automated control system supports stable feeding, belt tensioning, and continuous dewatering operation with minimal manual intervention.
• Chemical conditioning compatibility improves flocculation efficiency and enhances separation performance for difficult sludge types.

Application Scenarios

• Municipal wastewater treatment sludge thickening and dewatering processes
• Mining tailings such as iron ore, copper ore, and bauxite sludge
• Sand washing and aggregate wastewater treatment systems
• Pulp and paper industry sludge handling and fiber separation
• Industrial wastewater treatment including chemical and manufacturing effluents
• Mineral processing and ore dressing wastewater solid-liquid separation

FAQ

Q1: What types of sludge can this belt filter press handle?
A: It can handle municipal, industrial, mining, and mineral processing sludge.

Q2: Is chemical conditioning required before dewatering?
A: Yes, flocculation improves efficiency and filtration performance.

Q3: What is the main output of the process?
A: The system produces dewatered filter cake and separated filtrate water.

Q4: Is the system suitable for continuous operation?
A: Yes, it is designed for continuous sludge dewatering processing.

Q5: What industries commonly use this equipment?
A: It is widely used in wastewater treatment, mining, and industrial sectors.
