2800 L Filter Press For Wastewater Treatment Sludge Separation

Product introduction of 2800 L Filter Press

The 2800 L plate and frame filter press is an industrial filtration equipment used for separating suspended solids from liquids under controlled pressure conditions. It consists of a frame structure with thrust plate, pressing plate, crossbeam, and multiple alternating filter plates and frames. Filter cloths are installed between each chamber to retain solids while allowing filtrate to pass through. This system is suitable for suspensions with low solid concentration and is widely used in wastewater treatment, chemical processing, and mineral industries. It provides stable operation, adaptable pressure control, and efficient sludge volume reduction for industrial applications.

Working principle

Slurry is pumped into the filter press chambers formed between alternating plates and frames. Under hydraulic pressure, liquid passes through filter cloths and exits as filtrate through internal channels, while solids are retained inside the chambers. As filtration continues, solids accumulate and form a filter cake. Once chambers are fully filled, the system stops feeding, pressure is released, and the plates are separated for cake discharge before the next cycle begins.

Product Parameter Table

Parameter	Value
Filter area	140 m²
Plate size	1250×1250 mm
Chambers No.	54
Total volume	2800 L
Working pressure	≤0.8 MPa
Press pressure	≤1.2 MPa
External Dimensions (L×W×H)	6660×1620×2050 mm
Machine weight	9400 kg

Main Features

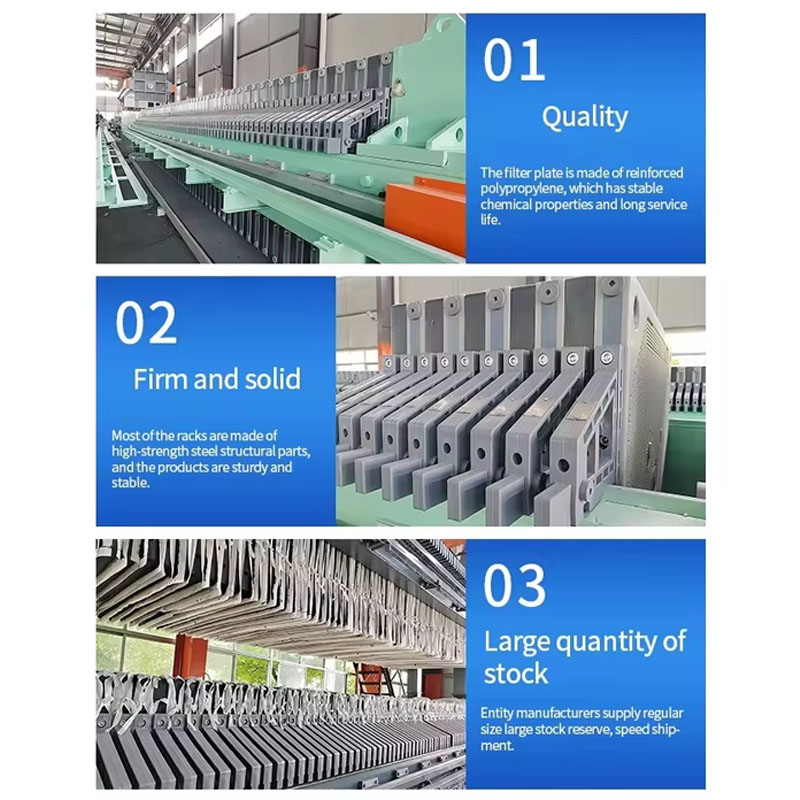

• Alternating plate and frame structure allows flexible chamber configuration for different slurry filtration requirements.
• High-pressure mechanical pressing system ensures stable chamber sealing and consistent solid-liquid separation performance.
• Free access design to plate pack simplifies inspection, cleaning, and replacement of filter cloth components.
• Robust crossbeam and frame construction ensures structural stability under long-term industrial operating pressure conditions.
• Low energy consumption operation supports continuous filtration processes with reduced operational cost requirements.
• High capture efficiency design improves solid retention while maintaining stable filtrate discharge quality.

Application Scenarios

• Industrial wastewater treatment for chemical and mineral processing plants
• Mining and metallurgy slurry solid-liquid separation systems
• Ceramic and pigment production wastewater filtration processes
• Food processing and fermentation industry liquid-solid separation
• Textile, dyeing, and leather wastewater sludge management
• Municipal and environmental engineering sludge dewatering systems

FAQ

Q1: What type of material can this filter press handle?
A: It is suitable for low-solid-concentration industrial suspensions and wastewater slurries.

Q2: Is this a continuous or batch system?
A: It operates as a batch pressure filtration system.

Q3: What is the main function of filter cloths?
A: Filter cloths retain solids while allowing liquid filtrate to pass through.

Q4: What industries commonly use this equipment?
A: It is widely used in mining, chemical, municipal, and food industries.

Q5: Can operating pressure be adjusted?
A: Yes, pressure can be controlled depending on slurry characteristics and process needs.
