Basket centrifuge separator is a high-speed sedimentation equipment designed for separating high solid content mixtures and fine particles. It operates through a direct motor-driven drum that generates strong centrifugal force for efficient phase separation. The system is suitable for materials that are difficult to filter using conventional methods. It is widely used in industrial processes requiring solid-liquid separation, offering stable operation, simple handling, and effective batch discharge after separation is completed.
Compare
Basket Centrifuge Separator Product Introduction
Basket centrifuge separator is a batch-type sedimentation centrifuge designed for high-efficiency separation of solid-liquid mixtures with high density differences. It features a solid stainless steel bowl, upper cover with multiple ports, and a direct drive motor system. The equipment operates under high-speed rotation to form a strong centrifugal field, allowing solids to settle on the bowl wall while clarified liquid is discharged through siphon or skimming tubes. It is suitable for industries requiring GMP-grade processing and manual solid discharge after operation. The machine is ideal for manufacturers handling complex slurries and high-solid-content feed materials.

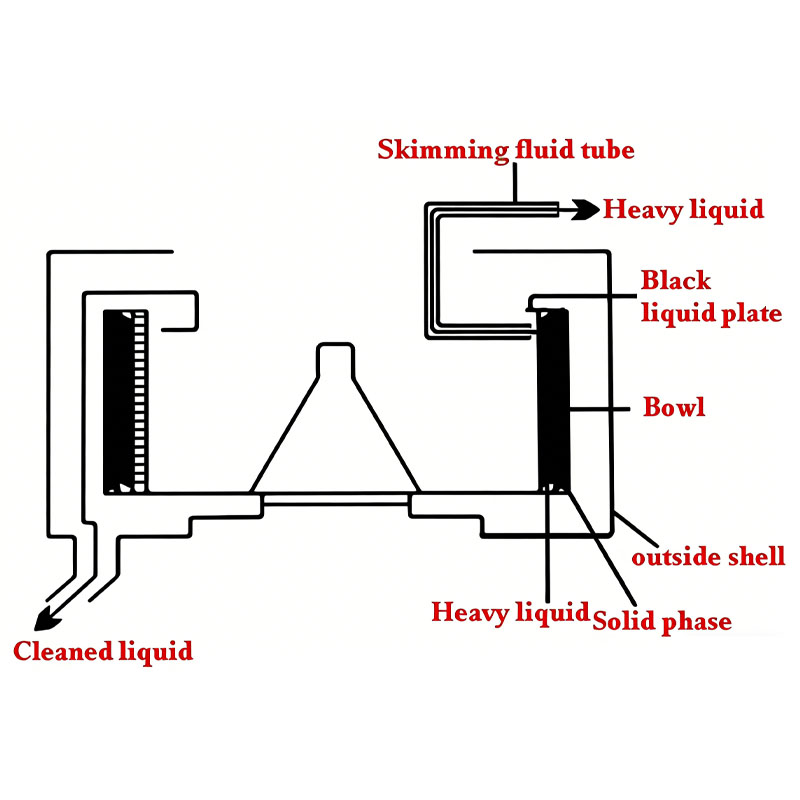

Working Principle
The machine uses a high-speed rotating bowl driven by a direct motor to create a strong centrifugal field. Feed material enters from the top center and spreads along the bowl wall. Solid particles settle due to higher density, while liquid forms inner layers and is discharged through siphon or skimming tubes. After separation, the machine is stopped and solids are manually removed, completing the batch separation cycle.
Product Parameter Table
| Bowl Thickness(mm) | 6 |
| Bowl Inner Diameter(mm) | 450 |
| Bowl Height(mm) | 300 |
| Effective Area(m²) | 0.42 |
| Liquid Blocking Plate Diameter(mm) | 320 |
| Working Volume(L) | 20 |
| Max. Loading Capacity(kg) | 30 |
| Rotating Speed(r/min) | 2500 |
| Max.Separating Factor | 1600 |
| Motor Power(kW) | 2.6 |
| Motor Rotating Speed(r/min) | 2825 |
| Dimension(L×W×H)(mm) | 800×800×1000 |
| Weight(kg) | 380 |
Main Features
Application Scenarios
FAQ
Q1: What is a basket centrifuge separator used for?
It is used for separating high solid content mixtures into solid and liquid phases.
Q2: Can it handle fine particles?
Yes, it is designed for fine particle and high-density difference separation.
Q3: Is it continuous or batch operation?
It operates in batch mode with manual solid discharge after each cycle.
Q4: What materials are used in construction?
It uses stainless steel materials compliant with GMP standards.
Q5: Does it support special safety features?
Yes, it can include nitrogen protection and customized port configurations.
