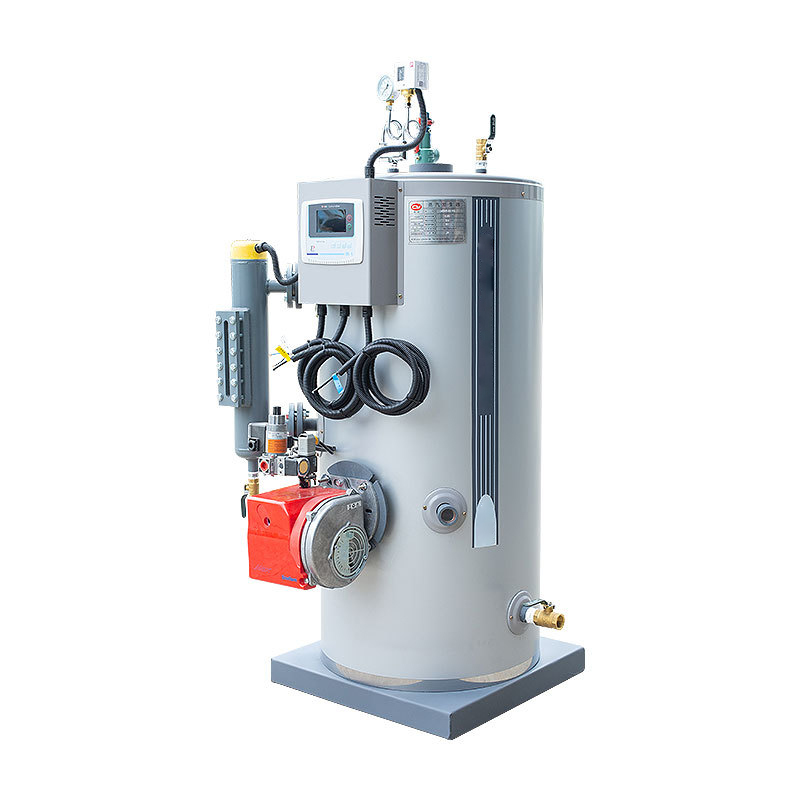

Vertical Steam Generator 30-500kg/h Commercial Fuel Gas Heating Industrial Steam Boiler Dual Fuel Steam Generator

Add to wishlist
Compare
  • Product Name: Vertical Fuel Gas Steam Generator
  • Rated evaporation capacity: 30-500kg/h
  • Rated working pressure: 0.4/0.7MPa
  • Rated steam temperature: 151°C/170°C
  • Feed water temperature: 20℃
  • Design thermal efficiency: 91-95%
  • Water capacity: 24.3-49L

NOTE: Prices may vary by product model and material.

$2,330.00

Compare

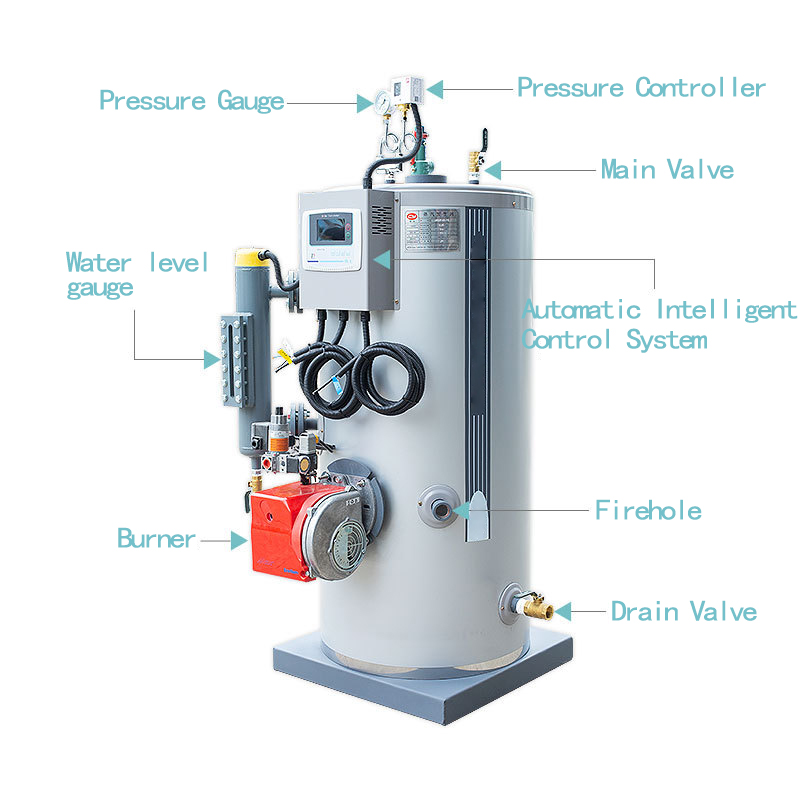

Features of Vertical Steam Generator

  • Fully automatic intelligent control system: professional manufacturing, high thermal efficiency, convenient and fast.
  • Rapid steam output: high thermal efficiency, cost saving, and continuous improvement of thermal efficiency value.
  • Multiple safety protection devices: There are multiple safety protection devices to ensure the safe operation of the machine.
Rated evaporation kg/h 30 50 100 200 300 500
Rated evaporation pressure Mpa 0.4/0.7 0.4/0.7 0.7 0.7 0.7 0.7
Rated steam temperature ºC 151/170 151/170 170 170 170 170
Feed water temperature ºC 20 20 20 20 20 20
Design Thermal Efficiency % 91～95 91～95 91～95 91～95 91～95 91～95
water capacity L 24.3 29 48.9 49.6 49 49
Shipping weight T 0.17 0.4 0.55 0.72 1.2 1.5
Natural gas pipe diameter DN 20 20 20 25 32 40
Natural gas supply pressure Kpa 2～3 2～3 2～3 2～3 2～3 4～6
Fuel use Light Disel kg/h 2 3.2 6.5 9.8 19.5 32.5
Natural gas Nm³/h 2.3 3.9 7.5 11.3 23.4 39.6
LPG Nm³/h 0.9 1.5 2.9 4.5 9 15.3
City gas Nm³/h 4.9 8.3 15.9 23.8 49.7 84.2
Heated area Radiation m² 0.3 0.72 1.2 1.4 1.66 2.2
Convection m² 0.63 1.32 1.5 3.7 6.63 13.3
Energy saver m² / / 9.5 9.54 6.99 6.43
