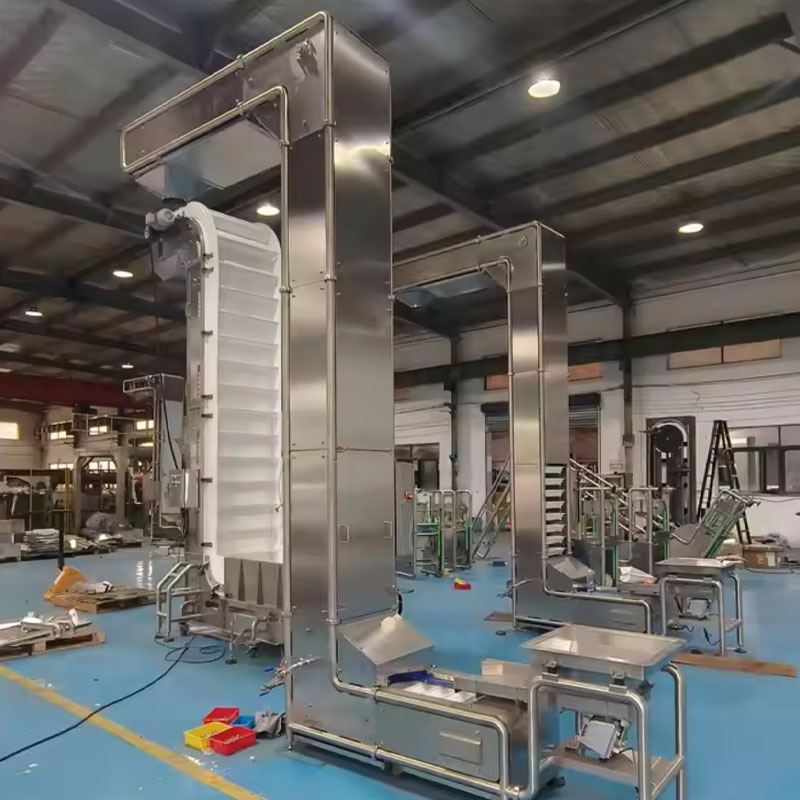

Stainless Steel Z Type Bucket Elevator is a high-efficiency, space-saving material handling system designed for food processing, packaging, and industrial production lines. It enables smooth Z-shaped vertical and horizontal conveying of powders, granules, snacks, and fragile products. Built with SUS 304 stainless steel, it ensures hygienic, dust-free, and gentle product transfer with low energy consumption, making it ideal for modern automated production systems.
Compare

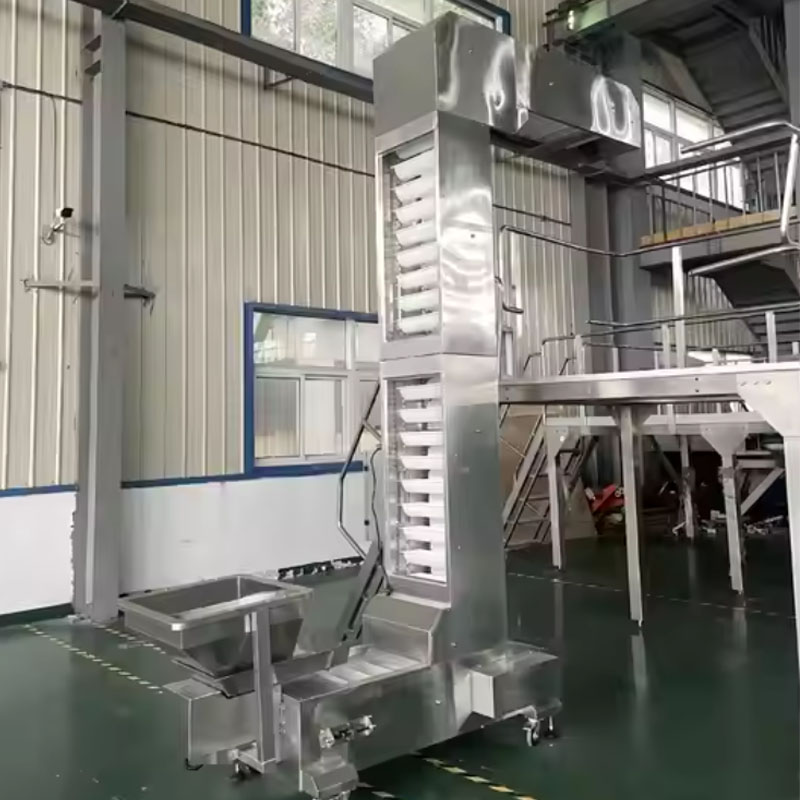

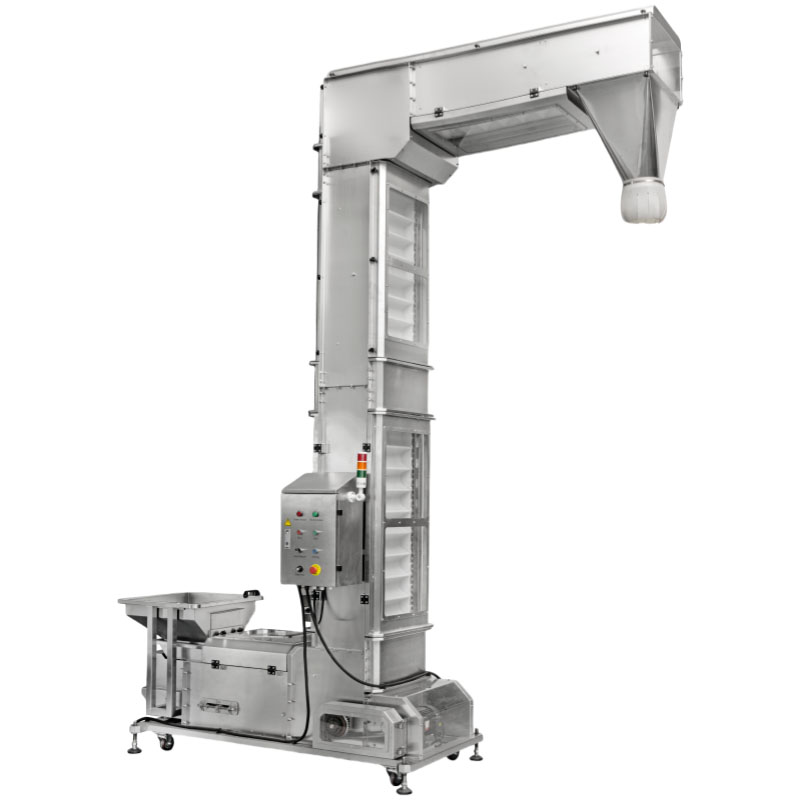

The Stainless Steel Z Type Bucket Elevator, also known as a Z-Lift Conveyor System, is an advanced continuous conveying solution engineered for complex food and industrial production environments. It integrates vertical lifting and horizontal transfer in a single system, forming a unique “Z-shaped” conveying path.
This design significantly improves factory space utilization and allows seamless integration into existing production lines. Manufactured using high-grade SUS 304 stainless steel, it meets strict hygiene and food safety standards, making it suitable for food, pharmaceutical, and chemical industries.
The system is widely used for handling powders, granules, snacks, frozen food, fragile products, and bulk materials with stable performance and low maintenance requirements.
Step 1: Material is fed into the inlet hopper through feeding system
Step 2: Individual buckets capture and hold material in controlled volume
Step 3: Conveyor chain drives buckets vertically upward in stable motion
Step 4: System transfers material horizontally along Z-shaped path
Step 5: Buckets reach discharge point and release material smoothly
Step 6: Empty buckets return to feeding point for continuous cycle
| Dody material | SUS 304 |
| Hopper volume | 3.6 L |
| Power supply | Single/3 phase 220 V/380 V |
| Conveying capacity | 8 m³/h |
| Machine dimension | per customer’s requirement |
| Feeder volume | 70/100/150/200 L |
| Discharge funnel | single/double/multiple |
| Feature | Z Type Bucket Elevator | Belt Conveyor | Screw Conveyor |
|---|---|---|---|
| Product handling | Gentle, non-damaging | Moderate impact | High friction risk |
| Space utilization | Highly compact Z layout | Long horizontal space needed | Limited vertical reach |
| Hygiene level | Fully stainless sealed system | Partially exposed | Moderate cleanliness |
| Material range | Powder, granules, fragile food | Light bulk only | Powder only |
| Cleaning | Easy CIP removable buckets | Difficult cleaning | Moderate maintenance |
| Energy efficiency | Low consumption | Medium | Higher resistance load |
Conclusion: Z Type Bucket Elevator is the best solution for fragile food + space-saving + hygienic conveying systems
Food Processing Industry
Grain & Agriculture Industry
Pharmaceutical Industry
Packaging Industry
Chemical Industry
Q1: What is a stainless steel Z type bucket elevator used for in food industry?
A: It is used to lift and transport food products like snacks, grains, and powders in a hygienic and automated way.
Q2: Can Z type bucket elevator handle fragile food products safely?
A: Yes, it uses gentle bucket handling to prevent crushing or breaking fragile items.
Q3: Is stainless steel Z bucket elevator suitable for CIP cleaning systems?
A: Yes, it features removable buckets and fully welded design for easy cleaning.
Q4: What materials can be conveyed by Z type bucket elevator system?
A: It can handle powders, granules, frozen food, snacks, and sticky materials.
Q5: Why is Z type bucket elevator better than belt conveyor in food plants?
A: It saves space, improves hygiene, and provides gentler product handling.
Q6: Does Z type bucket elevator support continuous operation?
A: Yes, it is designed for 24/7 continuous industrial production lines.
Q7: What is the capacity range of stainless steel Z bucket elevator?
A: It can be customized based on production needs, from small to large capacity lines.
Q8: Is Z type bucket elevator suitable for automated packaging lines?
A: Yes, it is widely used as feeding system for automatic weighing and packaging machines.
The Stainless Steel Z Type Bucket Elevator is a premium hygienic conveying solution designed for modern food processing and industrial automation systems. With its unique Z-shaped design, it enables efficient vertical and horizontal transport while protecting product integrity. Built from SUS 304 stainless steel, it ensures dust-free, safe, and low-maintenance operation. Its flexibility, energy efficiency, and gentle handling make it an ideal choice for food, pharmaceutical, and packaging industries seeking reliable and space-saving conveying solutions.
