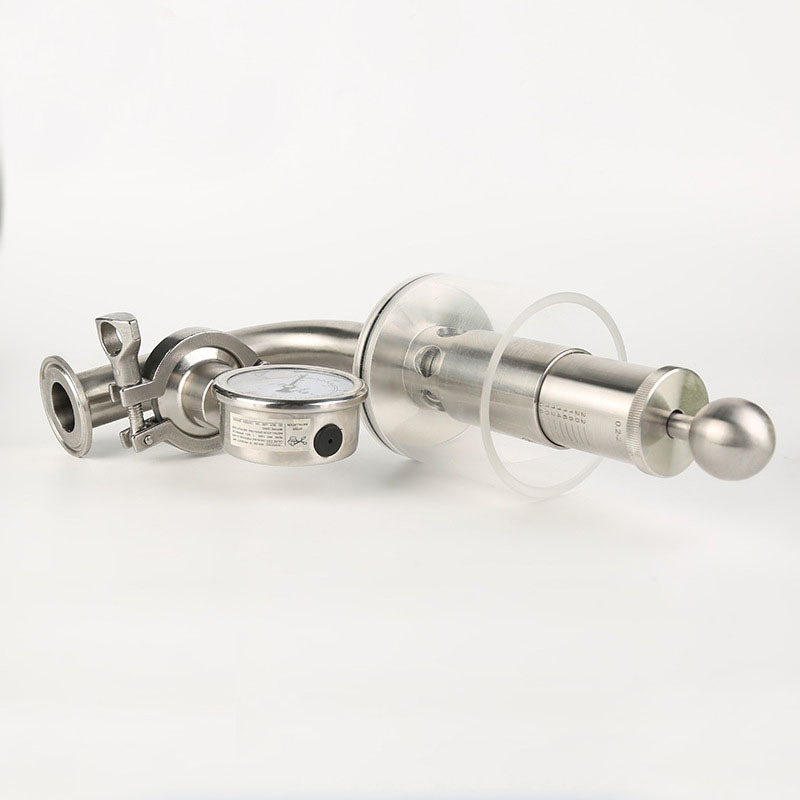

Stainless steel mechanical pressure regulating valve with diaphragm type Φ60 pressure gauge beer equipment sanitary safety valve


The valve is used in pressure vessel piping system . Adjust the one-way exhaust valve to protect the container from excessively high pressure. It can be exhausted when the pressure is higher than the set pressure (standard 1BAR). It is easy to use, accurate in scale, and can also meet the needs of various production processes. It is suitable for various industrial fields such as food processing, beer, beverage, and pharmaceuticals.

$465.99

Compare

Technical Parameters:

Working pressure: pressure adjustment range 0.2-2.2bar 1.1-3.2bar

Working temperature: -30 degrees +130 degrees

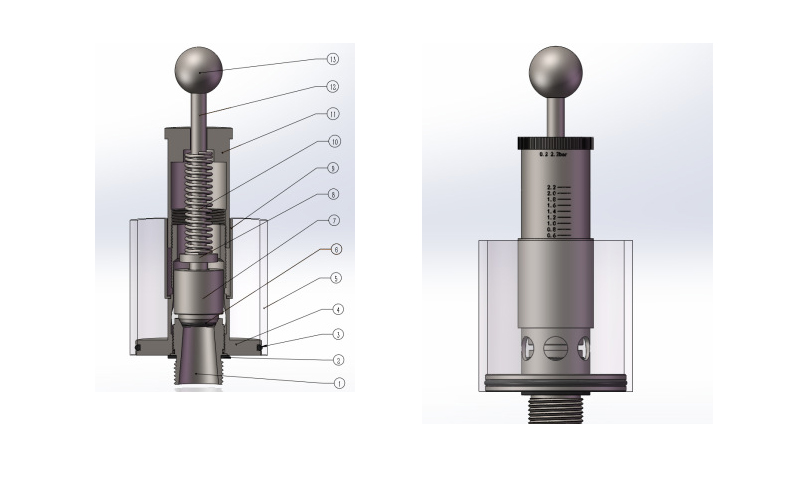

Serial number NO

name

material

1

seat

SS304

2

sealing ring

EPDN

3

O-ring

EPDN

4

valve body

SS304

5

glass cover

PMMA

6

O-ring

EPDN

7

Spool

SS304

8

Spring pad

SS304

9

Spacer

SS304

10

spring

SS304

11

Adjusting lever

SS304

12

Tie rod

SS304

13

pull the ball

SS304
