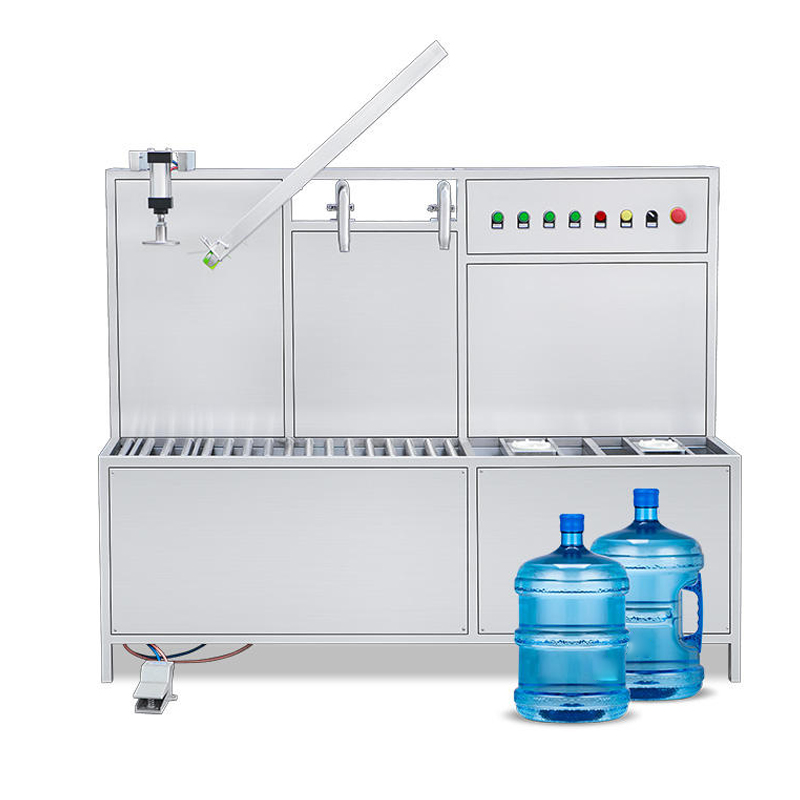

Semi Automatic Gallon Bottle Water Filling and Capping Machine
The Semi Automatic Gallon Bottle Water Filling and Capping Machine is designed for efficient packaging of 3 gallon, 4 gallon, and 5 gallon bottled water. It integrates bottle rinsing, water filling, cap feeding, and cap pressing functions into one compact system. Equipped with a reliable centrifugal pump and stainless steel construction, this machine ensures hygienic operation, stable filling performance, and secure sealing. It is suitable for purified water, mineral water, spring water, and drinking water production. With a semi-automatic design, simple operation, and flexible bottle compatibility, it is an ideal solution for small and medium-sized bottled water plants requiring cost-effective and reliable gallon jug filling equipment.
Compare
Gallon Bottle Water Filling and Capping Machine Product Introduction
The Semi Automatic Gallon Bottle Water Filling and Capping Machine is a compact and efficient solution specially designed for 3 gallon, 4 gallon, and 5 gallon bottled water production. The machine integrates bottle rinsing, water filling, cap feeding, and cap pressing functions into one system, helping water manufacturers improve packaging efficiency while reducing manual operation.
Designed for drinking water applications, this gallon jug filling machine adopts a sanitary stainless steel structure and a reliable filling system to ensure clean and stable water packaging. The integrated rinsing process includes sanitizer washing and pure water rinsing, helping maintain bottle hygiene before filling.
With a semi-automatic operating design, the machine provides flexible production capability for small and medium-sized bottled water plants. It is suitable for purified water, mineral water, spring water, and other drinking water products packed in large-capacity gallon bottles.
Industry Pain Points
- Manual gallon bottle filling requires high labor input and inconsistent production efficiency.
- Reused water bottles require effective cleaning before refilling.
- Traditional filling methods may cause contamination risks during operation.
- Small water plants need affordable equipment with reliable performance.
- Different gallon bottle sizes require flexible equipment adjustment.
- Separate washing, filling, and capping processes increase production complexity.
- Unstable cap pressing may cause leakage during transportation.
- Limited production space requires compact bottled water equipment.
Our Solution
The Semi Automatic Gallon Bottle Water Filling and Capping Machine provides an integrated solution for large bottle drinking water packaging.
The machine combines bottle rinsing, filling, cap feeding, and cap pressing into one compact unit, simplifying the production process. The dual rinsing system helps improve bottle cleanliness before filling, while the precision filling system ensures stable water volume in every bottle.
The semi-automatic structure allows operators to easily control production while maintaining high efficiency. With stainless steel construction, adjustable configurations, and reliable components, the machine is an ideal choice for small and medium bottled water manufacturers.
System Overview
Bottle Rinsing System
Equipped with sanitizer rinsing and pure water rinsing functions to improve bottle cleaning performance.
Water Filling System
Provides stable and accurate filling for 3-5 gallon water bottles.
Cap Feeding System
Automatically supplies bottle caps to improve packaging efficiency.
Cap Pressing System
Ensures secure sealing after filling to prevent leakage.
Heating System
Optional heating tube system supports hot water-related applications.
Control System
Simple control panel allows operators to manage the working process easily.
Stainless Steel Structure
Food-grade stainless steel construction ensures durability and hygienic operation.
Working Process
The Semi Automatic Gallon Bottle Water Filling and Capping Machine completes the entire bottling process through five main steps, including bottle sanitizing, water rinsing, filling, cap feeding, and cap pressing. This integrated process helps ensure bottle hygiene, accurate filling, and reliable sealing quality.
Step 1: Sanitizer Rinsing
Empty gallon bottles are first cleaned with sanitizer to remove impurities and improve bottle hygiene before filling.
Step 2: Water Rinsing
After sanitizer cleaning, bottles are rinsed with clean water to remove residual sanitizer and prepare them for safe drinking water filling.
Step 3: Water Filling
Clean bottles are transferred to the filling station, where purified water or mineral water is accurately filled through the filling system.
Step 4: Cap Feeding
After filling, bottle caps are automatically supplied and positioned onto the bottle openings.
Step 5: Cap Pressing
The machine presses the caps securely onto the bottles to complete the sealing process and prevent leakage during storage and transportation.
Main Features
Integrated Washing, Filling and Capping Design
The machine combines multiple processes into one unit, reducing equipment space requirements and simplifying operation.
Suitable for 3-5 Gallon Bottles
The equipment supports common gallon jug sizes, including 3 gallon, 4 gallon, and 5 gallon bottles.
Dual Rinsing System
The bottle cleaning process includes sanitizer rinsing and water rinsing to improve packaging hygiene.
Stable Filling Performance
The centrifugal pump filling system provides continuous water supply and reliable filling operation.
Semi Automatic Operation
The machine offers simple operation and lower investment compared with fully automatic gallon water production lines.
Stainless Steel Hygienic Construction
The machine body is made of stainless steel, providing corrosion resistance and easy cleaning.
Compact Production Design
The compact structure is suitable for small factories with limited production space.
Flexible Customization
The machine configuration can be customized according to bottle size, production capacity, and customer requirements.
Key Performance Highlights
- Integrated rinsing, filling, and capping functions
- Suitable for 3/4/5 gallon water bottles
- Semi-automatic operation mode
- Stainless steel hygienic structure
- Dual bottle rinsing process
- Stable filling performance
- Adjustable bottle compatibility
- Compact machine design
- Easy operation and maintenance
- Ideal for small and medium water plants
Why Choose This Equipment
- Designed specifically for gallon bottled water production
- Combines multiple packaging processes in one machine
- Improves production efficiency compared with manual operation
- Helps maintain bottle cleanliness before filling
- Reduces labor requirements and operating costs
- Suitable for small and medium drinking water factories
- Provides reliable filling and sealing quality
- Requires less installation space than complete automatic lines
Technical Specifications
| Parameter | Specification |
|---|---|
| Equipment Type | Semi Automatic Gallon Bottle Water Filling and Capping Machine |
| Applicable Products | Purified water, mineral water, spring water, drinking water |
| Applicable Bottle Size | 3 gallon, 4 gallon, 5 gallon water bottles |
| Functions | Bottle rinsing, water filling, cap feeding, cap pressing |
| Filling Method | Pressure filling |
| Filling Pump | Centrifugal Pump |
| Production Capacity | Approx. 150 bottles/hour (Based on 5 gallon bottles) |
| Voltage | 220V / 380V, 50-60Hz |
| Rated Power | Approx. 4.2 kW |
| Heating Tube | 3 kW × 1 |
| Rinsing System | Sanitizer rinsing and pure water rinsing |
| Control System | Electrical control panel operation |
| Operation Mode | Semi-automatic |
| Machine Structure | Stainless steel frame design |
| Product Contact Material | Food-grade stainless steel |
| Machine Dimension | Approx. 1680 × 480 × 1660 mm (L × W × H) |
| Machine Weight | Approx. 157 kg |
| Application Industry | Bottled water plants, drinking water production, beverage packaging |
Optional Equipment
- Automatic bottle loading system
- Additional rinsing stations
- Customized bottle molds
- Water treatment system
- Reverse osmosis purification system
- Conveyor system
- Labeling machine
- Date coding machine
- Complete bottled water production line
Application Scenarios
Small Bottled Water Factory
Suitable for small drinking water plants producing 3-5 gallon bottled water.
Pure Water Production
Used for packaging purified water after filtration and treatment processes.
Mineral Water Packaging
Provides efficient filling and sealing solutions for mineral water products.
Spring Water Bottling
Suitable for natural spring water packaging operations.
Community Drinking Water Plants
Ideal for local water supply businesses requiring compact equipment.
Office Drinking Water Production
Used for producing large-capacity bottled water for commercial supply.
Small Beverage Production Facilities
Suitable for manufacturers expanding into bottled water products.
Water Refill Stations
Provides washing, filling, and capping functions for refill bottle operations.
Startup Water Businesses
Offers an economical solution for new bottled water production projects.
Medium-Scale Water Plants
Supports stable production for growing bottled water manufacturers.
Industry Applications
Bottled Water Industry
Used for purified water, mineral water, and drinking water packaging.
Drinking Water Manufacturing Industry
Provides complete gallon bottle filling solutions for water producers.
Water Treatment Industry
Suitable for companies combining water purification and packaging.
Mineral Water Industry
Supports hygienic filling of natural and processed mineral water.
Pure Water Plant Industry
Applied in reverse osmosis and purified water production facilities.
Commercial Water Supply Industry
Used for supplying bottled water to offices, schools, and businesses.
Beverage Packaging Industry
Provides large bottle liquid packaging solutions.
Small Food and Beverage Industry
Suitable for companies requiring compact liquid filling equipment.
Local Water Distribution Industry
Helps businesses establish efficient refill water production.
OEM Water Production Industry
Supports customized bottled water manufacturing projects.
FAQ
1. What bottle sizes can this machine handle?
The machine is mainly designed for 3 gallon, 4 gallon, and 5 gallon water bottles. Customized configurations are also available.
2. What functions are included in this machine?
It integrates bottle rinsing, water filling, cap feeding, and cap pressing functions in one system.
3. Is this machine fully automatic?
No. This is a semi-automatic machine where operators assist with bottle placement and removal.
4. What type of water products can be filled?
It is suitable for purified water, mineral water, spring water, and other drinking water products.
5. Why does the machine include a rinsing system?
The rinsing system helps clean reusable gallon bottles before filling, improving hygiene and product safety.
6. Can the machine be customized for different bottle shapes?
Yes. Bottle holders and related components can be adjusted according to customer bottle specifications.
7. What material is used for the machine?
The machine uses stainless steel construction suitable for food and beverage production environments.
8. Can this machine be connected with a water treatment system?
Yes. It can be combined with RO water purification systems, storage tanks, and other water treatment equipment.
9. Is this machine suitable for startup water businesses?
Yes. Its compact design and reasonable investment make it suitable for small and medium water production projects.
10. What is the advantage compared with manual filling?
The machine improves filling consistency, reduces labor requirements, and provides more hygienic bottle packaging compared with manual operation.
Contact us to get your quotation now.
Get in touch with our engineering team.
