Screw Conveyor Feeder for Spice and Seasoning Processing

Product introduction of Screw Conveyor Feeder

The Screw Conveyor Feeder is an efficient automatic screw feeding solution designed for continuous transfer of granules, pellets, and dry powder materials in various industrial applications. It is widely used to move materials from the ground level to higher production equipment, such as packaging machines, filling machines, mixing machines, and processing systems.

With a stainless steel material contact structure, this screw conveyor feeder ensures hygienic operation and prevents contamination during transportation. The enclosed screw conveying design helps protect materials from external pollution while maintaining stable and controlled feeding performance.

Equipped with a large-capacity hopper, adjustable feeding control, mobile swivel casters, and a durable screw drive system, the machine offers convenient operation, easy movement, and reliable performance. It is suitable for food processing, plastic manufacturing, chemical production, pharmaceutical industries, and other applications requiring automatic granule feeding.

The conveyor helps reduce manual handling, improve production efficiency, and provide a safer and more consistent material feeding process.

Working principle

The Screw Conveyor Feeder uses a rotating screw shaft inside the conveying tube to move materials continuously from the hopper to the discharge outlet. When materials enter the hopper, the screw rotation pushes the granules forward and lifts them to the required height.

The feeding speed can be adjusted according to production requirements, ensuring stable material supply for downstream equipment. The enclosed conveying system reduces dust, prevents contamination, and provides a cleaner working environment.

The conveyor can be directly connected with packaging machines, filling machines, mixers, and production equipment to create an automated material feeding process.

Working Process

1. Material Loading

Materials such as granules, pellets, dry food ingredients, plastic particles, or other bulk materials are manually or automatically loaded into the large hopper.

2. Screw Conveying

After starting the machine, the motor drives the internal screw shaft to rotate. The rotating screw pushes materials forward inside the conveying tube and transports them continuously.

3. Inclined Lifting

The screw conveyor transfers materials from a lower position to a higher position through the inclined conveying tube, overcoming height differences between equipment.

4. Controlled Discharge

Materials are discharged smoothly through the outlet into connected equipment, such as packaging machines, filling machines, mixers, or processing systems.

5. Continuous Feeding

The conveyor maintains a stable material level in the receiving hopper, ensuring continuous production and reducing manual feeding requirements.

6. Cleaning and Maintenance

The reverse rotation function helps remove residual materials inside the conveyor, making cleaning and maintenance easier and improving operational reliability.

Product Parameter Table

Item	Specification
Equipment Type	Screw Conveyor Feeder
Voltage	220V
Power	750W (1 HP)
Power Supply Phase	Single Phase
Discharge Height	66.93″ (1.7 m)
Capacity	441–661 lb/h (200–300 kg/h)
Hopper Inlet Size	27.36″ × 27.36″ (69.5 × 69.5 cm)
Discharge Outlet Diameter	3.15″ (8 cm)
Material	SUS201 Stainless Steel

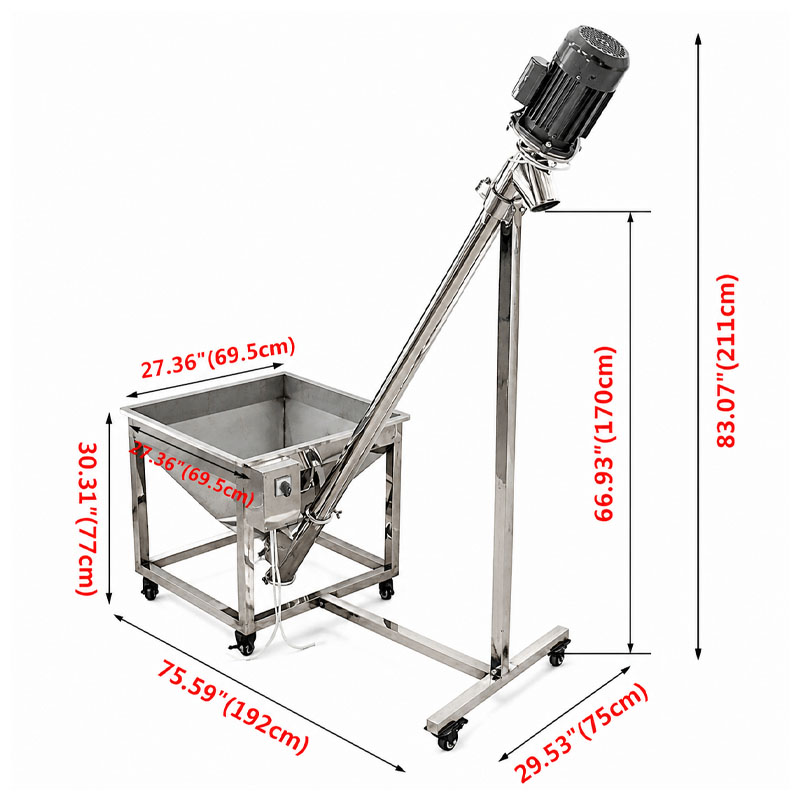

Overall Dimensions	75.59″ × 29.53″ × 83.07″ (192 × 75 × 211 cm)

Main Features

Stainless Steel Hygienic Structure

The parts in contact with materials are made of stainless steel, providing excellent corrosion resistance, durability, and easy cleaning performance. It helps prevent material contamination during conveying.

Automatic Screw Feeding System

The screw drive mechanism provides continuous and stable material transportation, reducing manual feeding requirements and improving production efficiency.

Large Capacity Hopper

The enlarged hopper design allows more materials to be loaded at one time, reducing frequent refilling operations and saving labor costs.

Stable Material Transfer

The enclosed screw conveyor structure ensures smooth feeding of granules and pellets while preventing material leakage and external contamination.

Mobile Swivel Caster Design

Equipped with 360-degree universal casters with locking function, the feeder can be easily moved and fixed according to different production layouts.

Convenient Control Operation

The control switch integrates forward, reverse, and stop functions. The reverse function helps remove residual materials inside the conveyor for easier cleaning and maintenance.

Strong Fixing Structure

The feeding rod is reinforced with multiple fixing points, improving stability during operation and reducing vibration.

Wide Material Compatibility

The conveyor can handle various dry granular materials, including plastic pellets, grains, pet food, feed pellets, and other industrial materials.

Energy Efficient Operation

Compared with traditional vacuum feeding systems, the screw conveyor requires lower energy consumption while maintaining reliable conveying performance.

Flexible Installation

The compact and portable design allows easy installation and integration with different machines, including packaging, mixing, filling, and molding equipment.

Application Scenarios

1. Spice and Seasoning Processing

Used for transporting salt, sugar, spice powder, seasoning granules, and other ingredients to mixing or packaging equipment.

2. Food Packaging Lines

Provides automatic feeding for packaging machines handling grains, snacks, pet food, and dry food products.

3. Plastic Pellet Processing

Suitable for transferring plastic granules and pellets to injection molding machines, extrusion machines, and mixing equipment.

4. Pet Food Production

Used for conveying dry pet food pellets from storage containers to filling and packaging systems.

5. Grain and Cereal Processing

Suitable for transporting rice, wheat, corn, seeds, and other agricultural granules.

6. Pharmaceutical Material Handling

Used for transferring dry granules and powder materials in pharmaceutical production environments.

7. Chemical Industry

Suitable for conveying dry chemical granules and industrial raw materials.

8. Feed Production Line

Used for automatic transportation of animal feed pellets and granular ingredients.

9. Powder and Granule Mixing System

Provides continuous material supply for mixers and blending equipment.

10. Automatic Filling System

Can be integrated with filling machines to ensure stable and continuous product feeding.

Suitable Materials

• plastic pellet
• pet food pellet
• grain
• cereal
• feed pellet
• seasoning granule
• spice material
• dry food ingredient
• chemical granule
• pharmaceutical granule

Advantages of Auger Conveyor

The auger conveyor provides manufacturers with an efficient alternative to manual material handling. Its automatic feeding function improves production consistency, reduces labor requirements, and minimizes material waste.

The stainless steel construction makes it suitable for industries with high hygiene requirements, while the compact design allows flexible installation in limited production spaces.

Compared with vacuum feeding systems, the screw conveyor offers easier maintenance because there is no filter system requiring regular cleaning. Its simple structure, reliable operation, and wide material compatibility make it a practical solution for modern automated production lines.

FAQ

Q1: What materials can the auger conveyor transport?

A1:It can transport granules, pellets, dry powders, plastic particles, food ingredients, grains, and feed materials.

Q2: Is this screw conveyor suitable for food production?

A2:Yes. Stainless steel material contact parts make it suitable for food processing and hygienic applications.

Q3: Can the feeding speed be adjusted?

A3:Yes. The feeding speed can be adjusted according to different production requirements.

Q4: Can it connect with packaging machines?

A4:Yes. It can be integrated with packaging, filling, mixing, and processing equipment.

Q5: Is the machine easy to move?

A5:Yes. The swivel casters allow convenient movement and positioning.

Q6: How is it different from vacuum feeding machines?

A6:The screw conveyor has a simpler structure, easier maintenance, and does not require regular filter cleaning.
