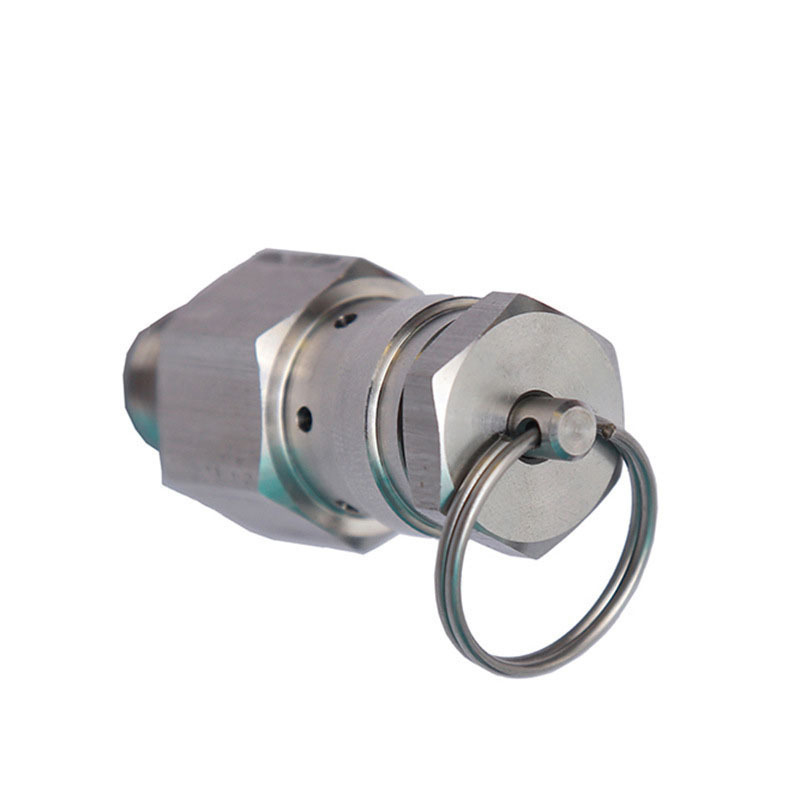

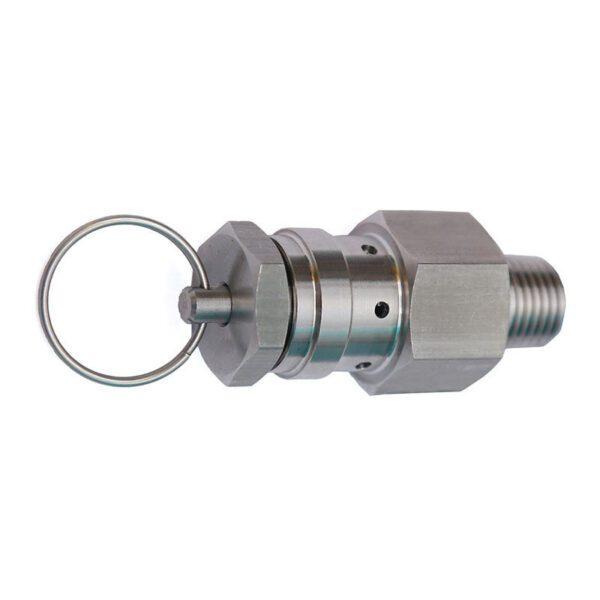

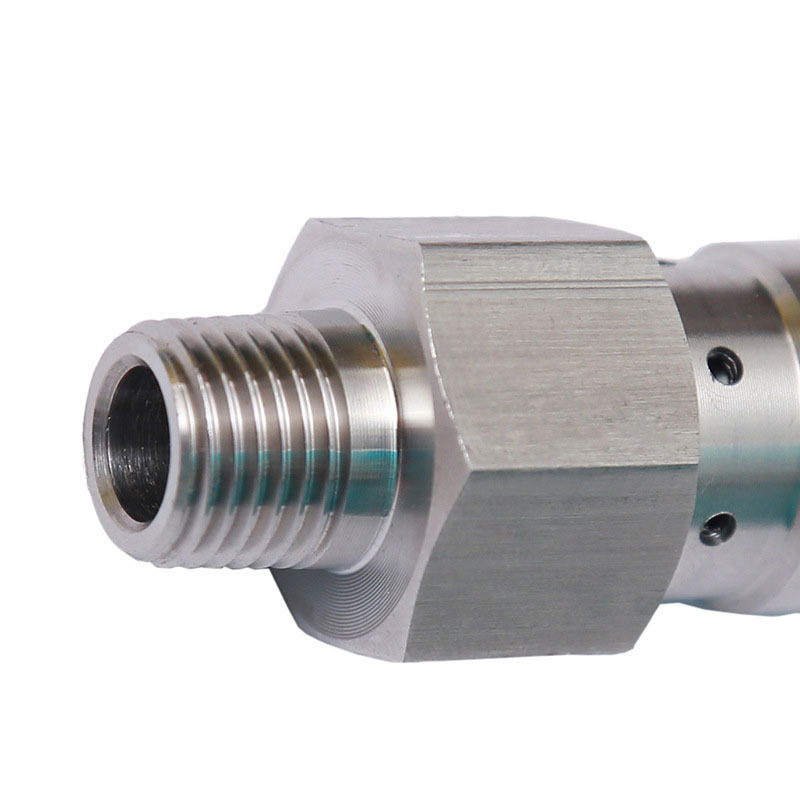

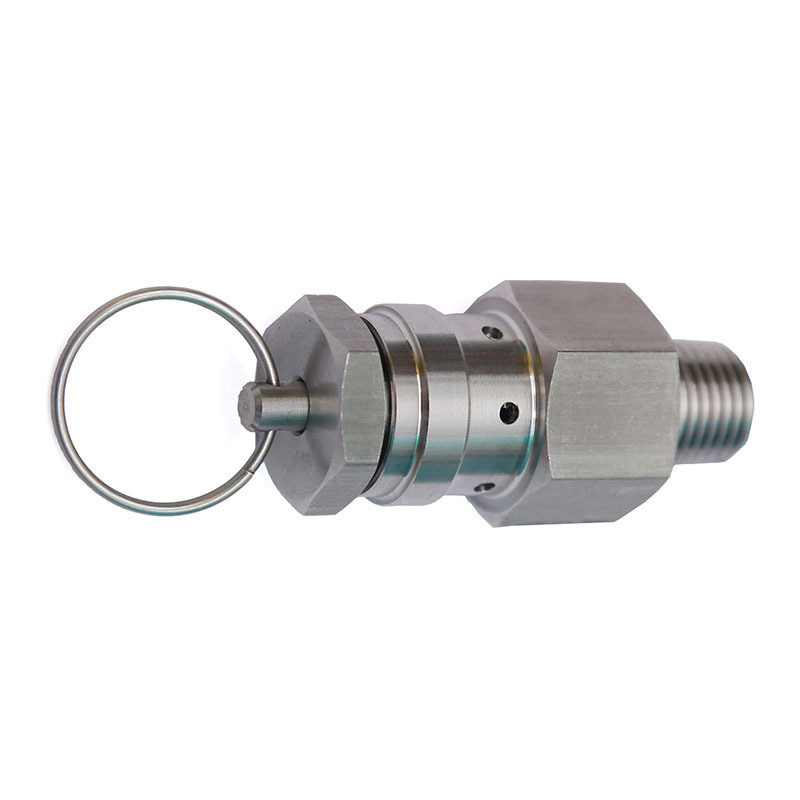

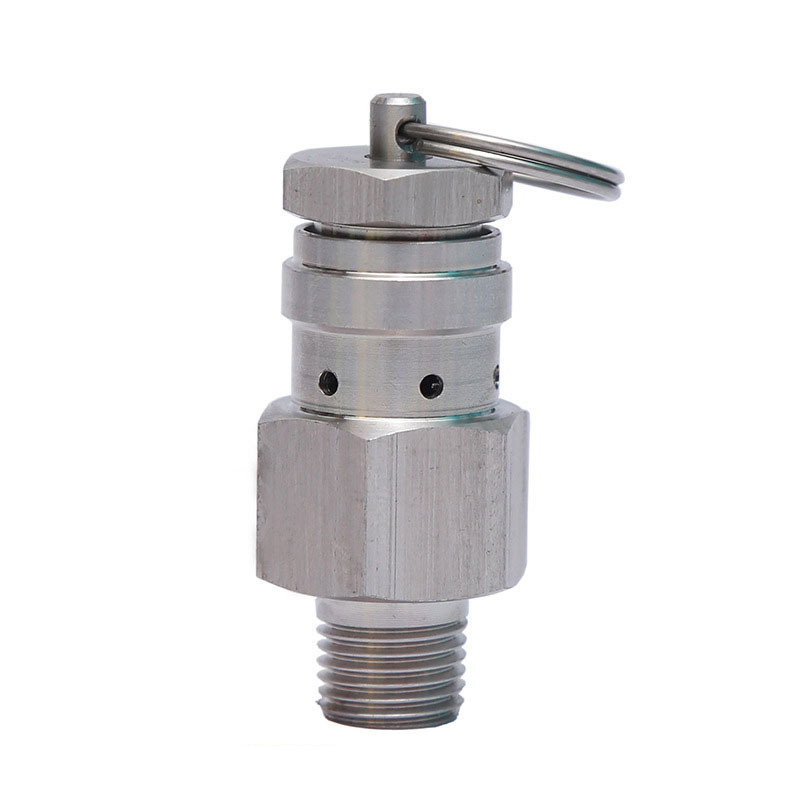

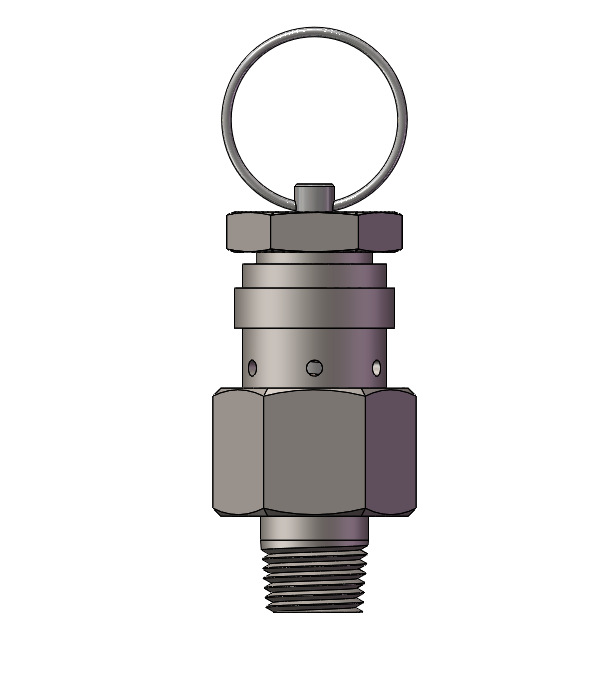

Professional supply of stainless steel exhaust safety valve fermentation tank exhaust safety valve sanitary safety valve


brand: other

structure type: spring type

Valve standard: National standard

form: Expansion

Applicable medium: steam

drive mode: Details customer service

type (channel position): Straight through

Disc opening height: Micro opening safety valve

Body structure: not closed

stressful environment: low pressure

Flow direction: unidirectional

Accessories available: valve body

$22.00

Compare

Introduction to functions and features:

The valve is used in pressure vessel-type piping systems.Stainless steel hand-held one-way exhaust valve protects the container from excessive pressure and explosion-proof effect. It can exhaust when it is higher than the set pressure (standard 2BAR), and vice versa. At the same time, it can also meet the needs of various production processes and adjust the pressure. The valve is made of stainless steel and has a hygienic design. It is suitable for various industrial fields such as food processing, beer, beverages, and pharmaceuticals.

Technical Parameters:

Connection method: thread Working pressure: 0.02-0.3mpa

Working temperature -30 degrees +150 degrees Working medium: gas



Serial number NO

name

material

1

valve body

SS304

2

Spool gasket

ternary 2 C

3

Dense sleeve

SS304

4

spring

SS304

5

adjusting nut

SS304

6

Spool

SS304

7

                         pull ring

SS304
