Portable CNC Flame Cutting Plasma Machine Gantry Metal Cutter

Product Description of CNC Flame Cutting Plasma Machine

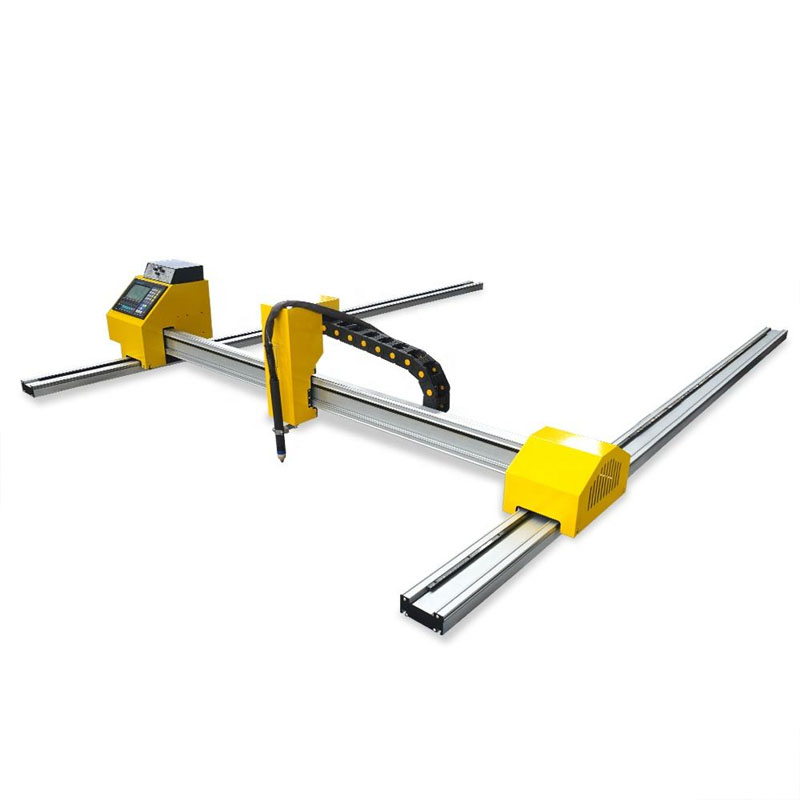

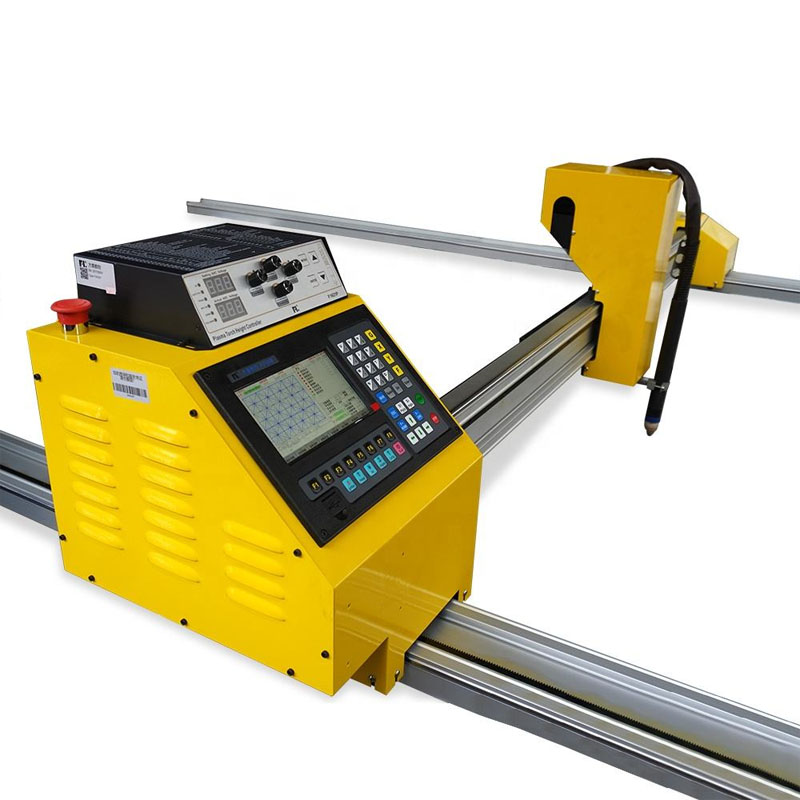

Designed as an economical solution, this light-duty gantry cutting machine offers a 2.4×3m cutting area with optional flame or plasma cutting. Dual-track drive provides stable operation and reliable performance. Easy to move and maintain, it is ideal for small and medium workshops processing carbon steel, stainless steel, and other metal plates.

Product Parameter Table

Power supply	220V±10%, 50Hz±10Hz
Power	0.5KW
Oxygen purity	99.50%
Preheating oxygen pressure	0.7~0.8Mpa
Cutting oxygen pressure	1 Mpa
Acetylene or gas pressure	0.04~0.06 Mpa
Ambient temperature	-20℃~45℃
Relative humidity	90% non-condensing
Effective cutting width (mm)	Machine width – 400mm
Effective cutting length (mm)	Machine length – 210mm
Flame cutting thickness (mm)	Carbon steel: edge cutting 5-100; perforation cutting ≤100
Cutting torch lifting stroke (mm)	≥100
Cutting speed (mm/min)	50-3500
Setting speed error (%)	-5～+5
Automatically adjust high precision (mm)	≤0.5
Linear accuracy (mm)	≤0.5/2.5
Effective cutting size	2.4 m* 3.0 m

Main features

Automatic Cutting Functions: Supports automatic delay, preheating, perforation, radius compensation, breakpoint recovery, and continuous retreat for stable and intelligent cutting operations.
High Cutting Efficiency: Cutting output is 6–8 times higher than manual cutting and 4–6 times higher than semi-automatic trolley cutting, greatly improving productivity.
High-Quality Cutting: Ensures smooth cutting edges, consistent accuracy, and reliable cutting quality for various metal plates.
