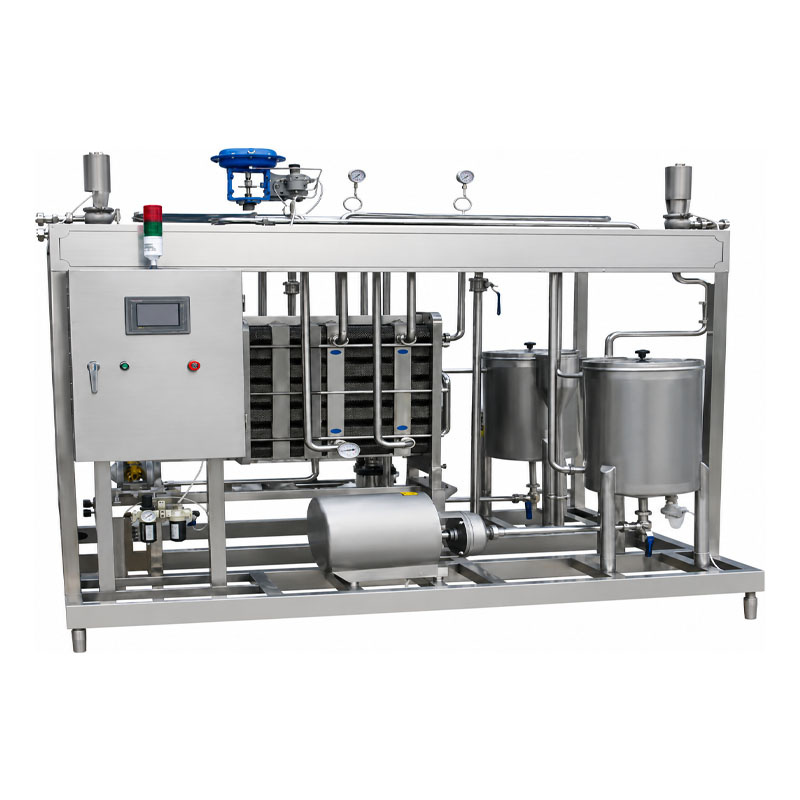

Plate Pasteurizer with Heating and Cooling for Dairy Line

Plate Pasteurizer Product Introduction

This plate pasteurizer is engineered for continuous thermal treatment of milk, dairy beverages, ice cream mix, and other pumpable liquid foods. With a processing capacity of 2 t/h and a 13 m² heat exchange area, it provides efficient heat transfer while maintaining a compact equipment footprint. Product can enter at approximately 4°C, undergo regenerative preheating, and be heated to around 65°C before optional homogenization. It then reaches 85–95°C for approximately 15 seconds before rapid cooling to about 4°C, with actual settings adjusted according to the product recipe and required process. A balanced product supply, hot water circulation, steam and water mixing, sanitary pumps, valves, and stainless steel piping support reliable continuous operation. Full automatic PLC touch-screen control or semi-automatic PID control can be configured. High heat recovery reduces utility demand, while straightforward operation, accessible components, and integration flexibility make the system suitable for modern dairy processing lines and processing plants.

Process Flow

Cold Product Feeding → Regenerative Preheating → Preheating to Approx. 65°C → Optional Homogenization → Final Heating → Holding → Heat Regeneration → Final Cooling → Storage or Filling

This configuration allows heating, optional homogenization, pasteurization, energy recovery, and cooling to operate as a coordinated continuous process.

Main System Components

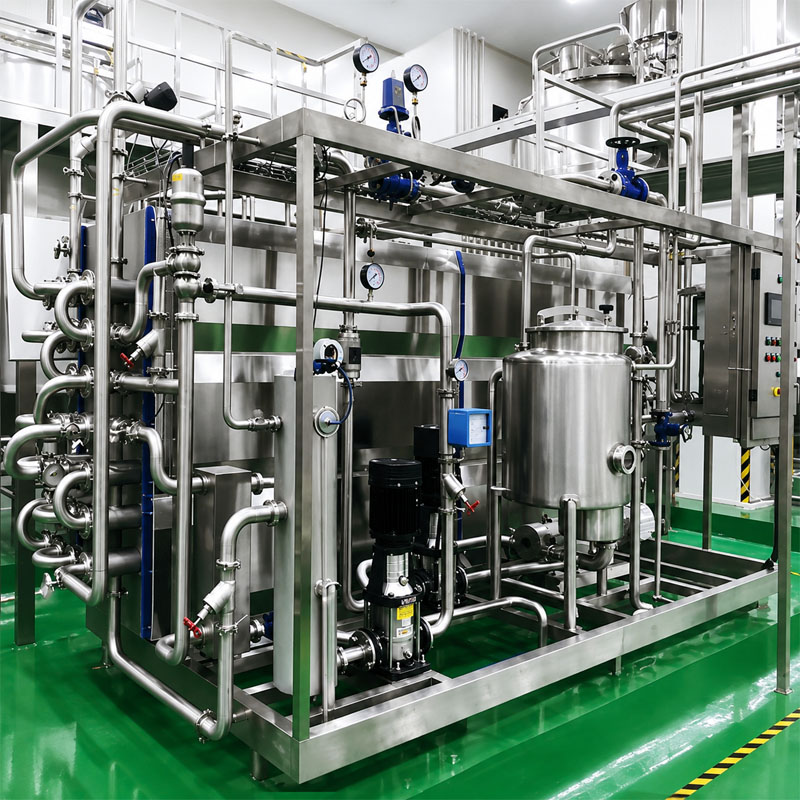

The pasteurization system can be configured with a plate heat exchanger, product balance tank, hot water balance tank, hot water circulation pump, sanitary product pump, steam-water mixing unit, electrical control cabinet, temperature instruments, sanitary valves, and stainless steel process piping.

The modular arrangement also makes it easier to connect upstream and downstream processing equipment.

Production Line Integration

Rather than operating only as an independent pasteurizer, the system can become part of a complete dairy processing line. Depending on the production process, compatible equipment can include:

• Milk Separator — supports cream separation, clarification, or milk standardization before thermal processing.
• Homogenizer — reduces fat globule size and improves product consistency when homogenization is required.
• Deaerator — removes entrained air to support product quality and downstream processing.
• Evaporator — enables concentration processes where higher solids content is required.
• Storage Tank — provides sanitary buffering before or after pasteurization.
• Filling Machine — allows processed product to move directly toward packaging after suitable cooling or downstream treatment.

Suitable Products

Fresh Milk — continuous thermal treatment before refrigerated storage or filling.

Dairy Beverage — suitable for formulated liquid dairy products requiring controlled heating and cooling.

Ice Cream Mix — provides thermal processing before subsequent cooling, aging, and freezing stages.

Flavored Milk — handles pumpable milk-based formulations under controlled pasteurization conditions.

Liquid Dairy Mix — suitable for various blended dairy formulations with adjustable process settings.

Juice and Liquid Food — can also be configured for compatible pumpable beverages when appropriate temperature and holding parameters are selected.

Technical Specifications

Main Features

1. 2 T/H Continuous Processing Capacity
Designed for steady continuous operation with a processing capacity of up to 2 t/h, suitable for medium-scale dairy and liquid food production.

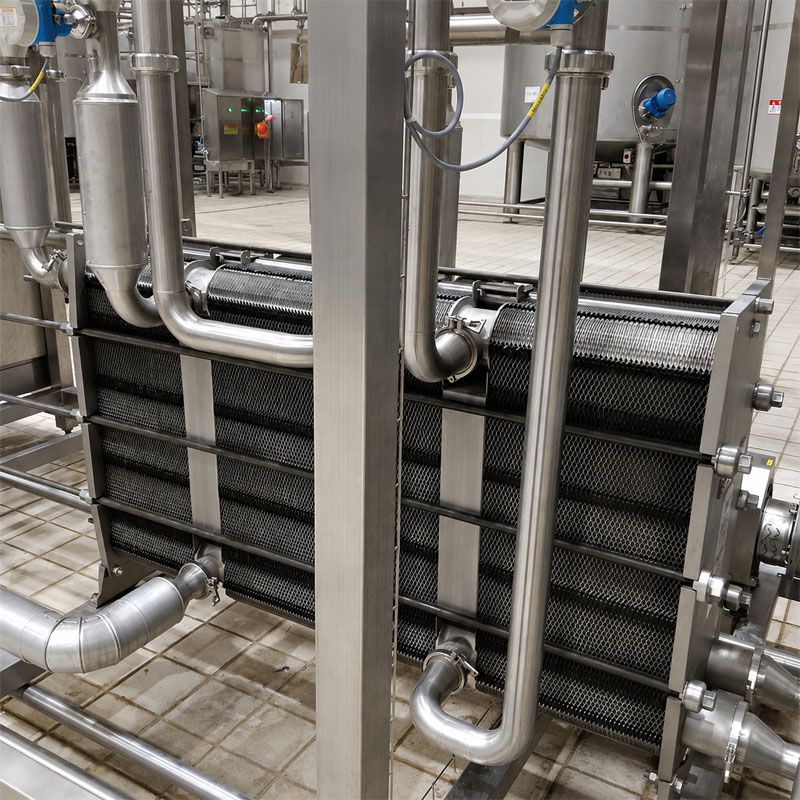

2. 13 m² Plate Heat Exchange Area
The plate configuration provides efficient heat transfer for product heating, heat recovery, and subsequent cooling within a compact system.

3. Multi-Stage Temperature Processing
Supports continuous preheating, pasteurization, holding, heat regeneration, and final cooling within an integrated thermal process.

4. High Heat Recovery Efficiency
Regenerative heat exchange transfers useful energy from outgoing hot product to incoming cold liquid, helping reduce heating and cooling demand.

5. Homogenizer Integration Capability
The system can incorporate an intermediate homogenization stage, allowing preheated product to be homogenized before final thermal treatment.

6. Automatic Process Regulation
PLC touch-screen or PID control options provide accurate temperature management and help maintain consistent processing conditions.

7. Independent Hot Water Circuit
A dedicated hot water tank, circulation pump, and steam-water mixing system provide stable indirect heating for controlled pasteurization.

8. Rapid Final Product Cooling
The cooling section quickly reduces product temperature after heat treatment, preparing it for refrigerated storage, filling, or further processing.

Application Scenarios

1. Fresh Milk Pasteurization
Suitable for continuous thermal treatment and cooling of fresh milk before refrigerated storage or packaging.

2. Ice Cream Mix Processing
Provides controlled pasteurization for prepared ice cream mix before cooling, aging, and freezing.

3. Flavored Milk Production
Suitable for milk-based formulations requiring controlled heating, holding, heat recovery, and cooling.

4. Dairy Beverage Processing
Supports continuous production of formulated dairy beverages requiring reliable temperature management.

5. Liquid Dairy Base Preparation
Processes standardized or blended dairy bases before fermentation, storage, filling, or further processing.

6. Juice and Liquid Food Processing
Can be configured for compatible juice and pumpable liquid foods by adjusting temperature, holding time, flow rate, and cooling conditions.

Key Advantages

• 2 t/h continuous throughput for small-to-medium industrial dairy processing.
• 13 m² heat exchange area provides efficient thermal transfer within a compact system.
• Regenerative heat utilization helps reduce heating and cooling utility demand.
• Homogenizer-ready configuration supports integrated dairy processing workflows.
• PLC or PID control options accommodate different automation requirements.
• Rapid heating and cooling support controlled continuous thermal processing.
• Sanitary stainless steel flow path facilitates hygienic operation and cleaning.
• Modular equipment connections simplify integration with other dairy processing machinery.
• Accessible system arrangement supports routine inspection and maintenance.

FAQ

Q: What is the processing capacity of this plate pasteurizer?
A: The standard configuration described here processes approximately 2 t/h. Other capacities can be engineered according to production requirements.

Q: Can the pasteurizer be connected to a homogenizer?
A: Yes. The process can be arranged so the product is preheated before entering a homogenizer and then returned for final pasteurization and cooling.

Q: Are 85–95°C and 15 seconds fixed processing parameters?
A: No. These are reference conditions for this configuration. The required temperature and holding time depend on the product formulation, processing objective, and applicable food safety requirements.

Q: Can the product be cooled directly after pasteurization?
A: Yes. Regenerative cooling can recover useful heat first, followed by final cooling with chilled water or another suitable cooling medium.

Q: What control systems are available?
A: The system can be equipped with full automatic PLC touch-screen control or a semi-automatic PID control configuration.

Q: Can this equipment be integrated into a complete dairy production line?
A: Yes. It can work with separators, homogenizers, deaerators, evaporators, storage tanks, filling equipment, and other compatible processing machinery.
