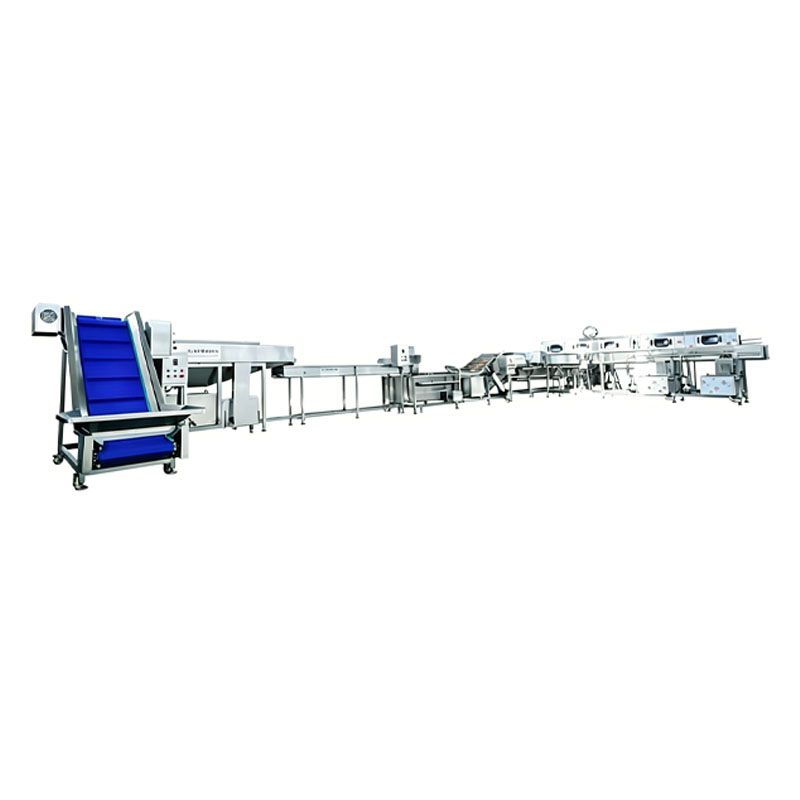

Pickle Cucumber Processing Line Supplier for Brining Food
This pickle cucumber processing line is a fully automated solution designed for canned pickle production, integrating selection, washing, filling, exhausting, sealing, sterilization and packaging. It ensures high efficiency, stable product quality and hygienic processing standards. Suitable for large-scale food factories, the system supports continuous operation and customizable configurations, helping manufacturers improve productivity, reduce labor cost and achieve consistent output for commercial pickle production.
Compare
Product introduction of Pickle Cucumber Processing Line
The pickle cucumber processing line is an industrial solution developed for automated canned pickle production. It integrates raw material selection, bubble washing, conveying, filling, sealing, sterilization and packaging into a continuous workflow.
With optimized processing design and reliable automation control, it ensures consistent product quality, high hygiene standards and efficient large-scale production. The system is suitable for cucumbers and similar vegetables used in pickling and brining processes.
Working principle
Step 1. Fresh cucumbers enter double-layer sorting conveyor for manual selection
Step 2. Bubble washing machine removes soil and surface impurities
Step 3. Clean cucumbers are transferred by conveyor to filling section
Step 4. Empty containers are cleaned and disinfected automatically
Step 5. Solid filling system loads cucumbers into containers
Step 6. Brine filling system adds solution for pickling process
Step 7. Exhausting removes air before sealing
Step 8. Sealing machine closes containers securely
Step 9. Sterilization and cooling ensure product safety
Step 10. Labeling, coding and packaging complete final products
Product Parameter Table
| Name | Technical parameter |
| Z type elevator | Equipment material: food grade stainless steel Material lifting |
| bubble washing machine | Vibration and impurity removal before soaking and cleaning of raw materials |
| Cucumber soaking washing machine | Equipment material: food grade stainless steel Equipment size: 1500*6000 mm Soak, Bubble, Lift |
| Manual selecting platform | Manual selecting |
| Continuous pre-cooker | Equipment material: food grade stainless steel Equipment size: 1500*8000 mm Cucumbers are greened, temperature controlled |
| Continuous cooler | Equipment material: food grade stainless steel Equipment size: 1500*5000 mm Rapid cooling after pre-cooking to maintain product appearance |
| Z type elevator | Equipment material: food grade stainless steel Material lifting |
| Vibration filling machine | Filling range: 330-900 g/bottle Filling speed: 80-120 bottles/min (the capacity of the machine will vary according to the size of the cucumber and the size of the bottle) Manual feeding is required after filling Equipment material: food grade stainless steel Feed height: 1760 mm |
| Automatic soup adding machine | Equipment material: food grade stainless steel soup added |
| Capping machine | Cap, screw cap, 5000-6000 bottles/hour Power: 2.04 kW Steam demand: more than 180 kg/h Dimensions: 3450*1040*2150 mm |
| Bottles washing machine | Dimensions: 4200*1500*1800 mm Power: 5.35 kW Capacity: 120 bottles/min Applicable bottle diameter: 40-180 mm Suitable bottle height: 60-300 mm Rinse method: two-stage cleaning (unlimited bottle type |
| Pasteurizer | Fully automatic control Equipment material: 304 stainless steel for the whole machine Automatic temperature control system Equipment size: effective width 2000 mm/length 25000 mm Insulation on three sides |
| Air knife blowing water | Used to blow-dry the water on the surface of the jar |
| Bottles palletizer | Standard machine (universal) Tray size: 1 m*1.2 m Jar shape: Universal glass bottle Production speed: 1-1.5 layers/minute Equipment size: length 6600 mm width: 2300 mm Equipment power: 7.5 kW Air source consumption: 0.6 MPa |
Automated Pickle Processing vs Traditional Manual Production
| item | automated processing | traditional processing |
|---|---|---|
| efficiency | continuous high output | low batch production |
| product quality | uniform filling and taste | inconsistent results |
| labor requirement | low | high |
| hygiene level | controlled sterilized environment | higher contamination risk |
| scalability | easy expansion | limited capacity |
Conclusion: automated pickle processing is essential for industrial canned food production.
Main Features
- automated cucumber selection washing filling sealing workflow
- bubble washing system removes soil and impurities effectively
- double layer sorting conveyor improves raw material quality control
- precise filling and brining system ensures uniform product consistency
- automated sealing and sterilization ensure food safety compliance
- stainless steel structure ensures hygiene and corrosion resistance
- modular design supports flexible production capacity expansion
- turnkey solution suitable for industrial pickle production plants
Application Scenarios
- for canned pickle factories with inconsistent product quality → achieve standardized filling and uniform taste
- for food processing plants facing low efficiency → improve throughput with continuous automation
- for export-oriented manufacturers requiring hygiene compliance → ensure sterilized and safe production
- for pickle producers needing stable packaging quality → achieve reliable sealing and labeling results
- for large-scale vegetable processing plants → reduce labor and increase production efficiency
Buyer Decision Guide
How to Choose a Pickle Cucumber Processing Line
- choose production capacity based on daily output requirements
- select filling and sealing configuration based on packaging type
- confirm sterilization method for food safety compliance
- evaluate automation level for labor cost reduction
- consider plant layout and future production expansion
FAQ
what is a pickle cucumber processing line used for in canned food production
It is used for washing, filling, sealing and sterilizing cucumbers for pickle products.
how does brine filling work in pickle production line
The system adds controlled brine solution to ensure consistent flavor and preservation.
what equipment is included in pickle cucumber processing line
It includes washing machines, conveyors, filling units, sealing machines and sterilization systems.
how to choose cucumber processing line for pickle factory
Selection depends on capacity, packaging type and automation level.
what is the function of exhausting before sealing cans
It removes air to improve sealing quality and extend shelf life.
is pickle cucumber processing line suitable for export food production
Yes, it ensures hygiene, sterilization and consistent product quality.
what capacity is suitable for industrial pickle production line
Most systems range from 500kg/h to 3000kg/h depending on production needs.
how does automated pickle processing improve efficiency
It reduces labor, increases output and ensures stable product quality.
