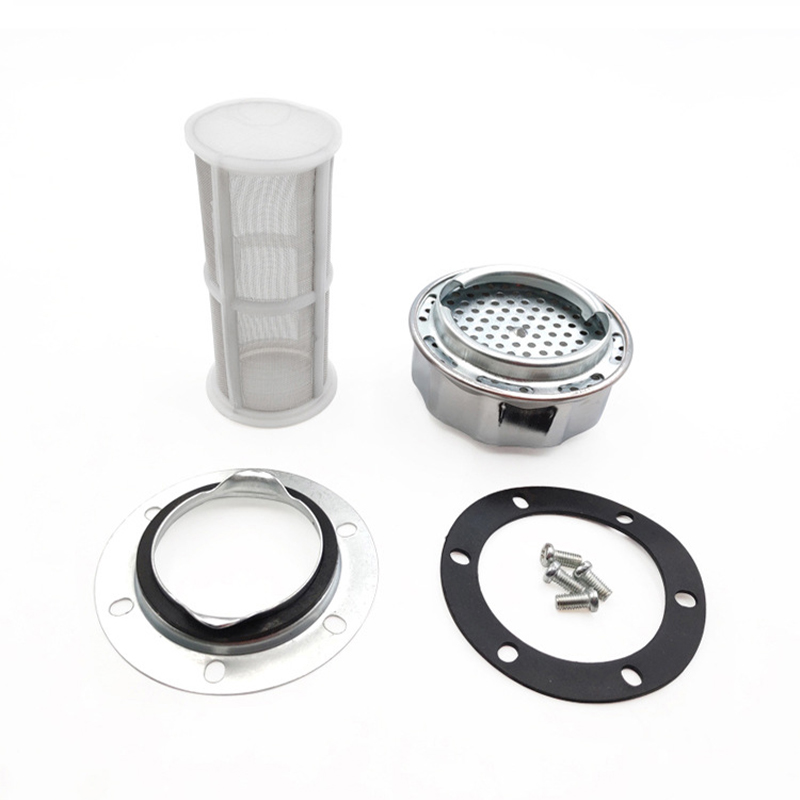

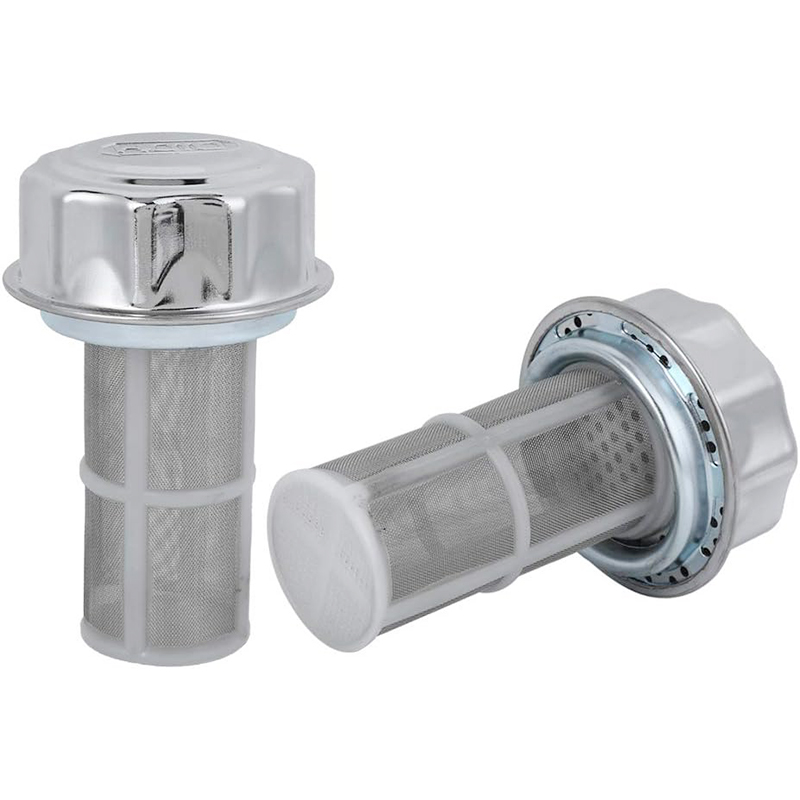

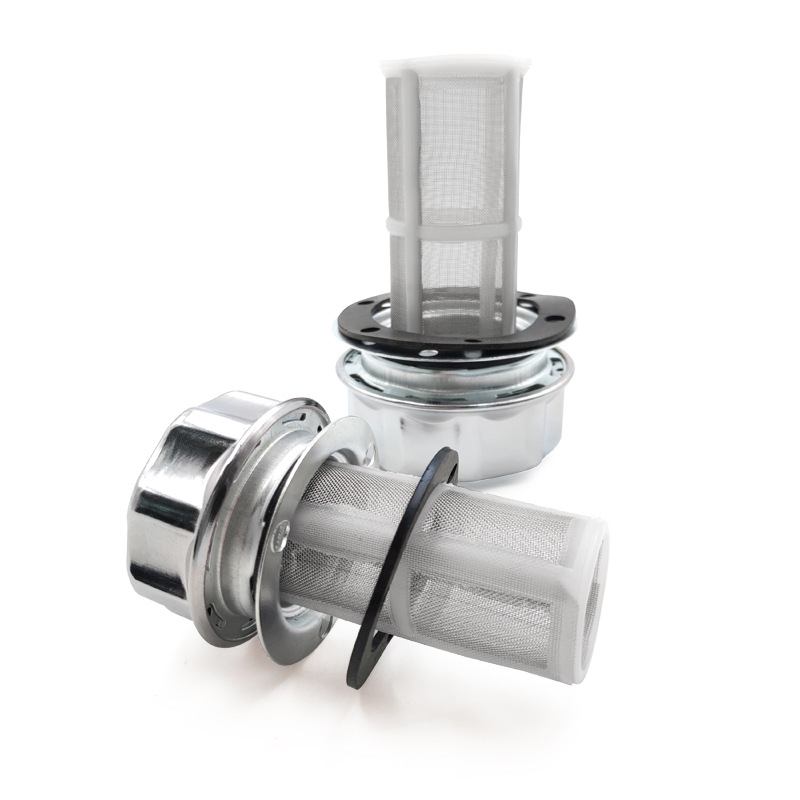

The hydraulic Air filter is installed above the oil tank to prevent impurities in the air from entering the oil tank, and can filter the air above the oil level in the oil tank and the working oil in the oil tank. The filter screen is detachable. It can be cleaned, replaced and maintained at any time. The air filter is fixed on the fuel tank with screws.
Model | Net diameter
mm |
A
mm |
B
mm |
C
mm |
D
mm |
E
mm |
F
mm |
G
mm |
d×Hole
number |
Filtering
precision |
Weight
kg |
AB-1163 | 50 | 75 | 48 | 88 | 49 | 137 | 71 | 88 | Φ6×6 | 100μm | 0.19 |
AB-1162 | 30 | 53 | 31 | 65 | 35 | 90 | 45 | 53 | Φ6×3 | 100μm | 0.13 |
QUQ2 | 50 | 75 | 48 | 91 | 49 | 140 | 71 | 88 | Φ6×6 | 100μm | 0.23 |
QUQ2.5 | 75 | 100 | 72 | 160 | 60 | 225 | 110 | 125 | Φ6×6 | 100μm | 0.5 |
