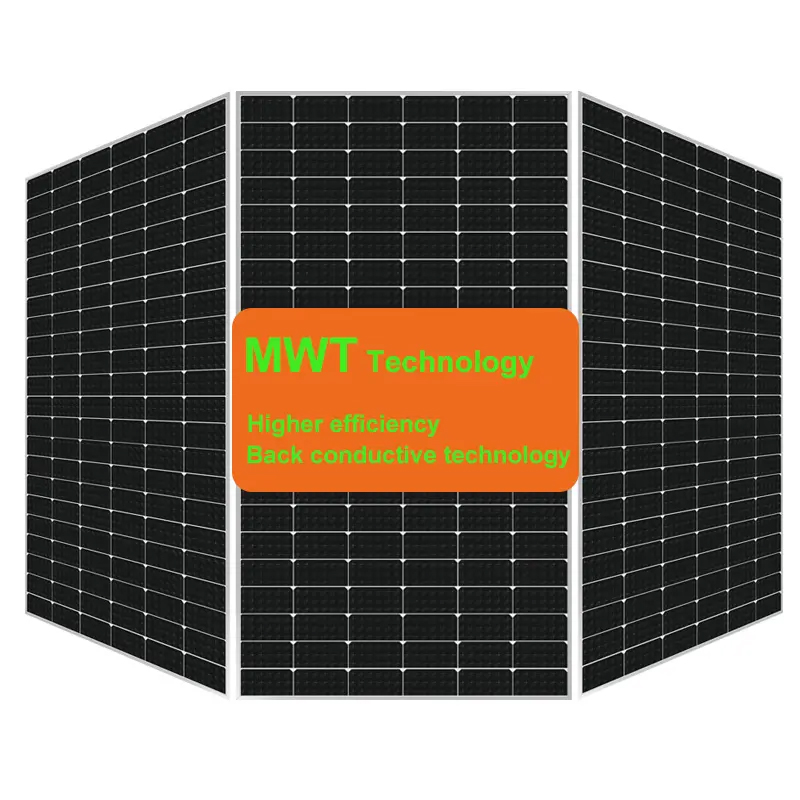

MWT 480w solar panels monocrystalline trinasolar 500 watt solar home 400wp solar pv module
Feature:
High Efficiency
Busbar-free design increases cell conversion efficiency，more power output can be achieved at low irradiance conditions .
Lead Free
Eco-friendly PV design achieves lead-free MWT module without soldering materials .
High Reliability
Conductive back sheet’s 2D encapsulation avoids welding stress and micro crack, resulting lower degradation under multiple harsh testing conditions .
Innovative Layout
Innovative back contact module layout with asymmetric design for higher efficiency power .
High ROI
Single-glass modules with global 30-year performance warranty bring higher return on investment.
$175.00 – $179.00
Compare|
Full black solar module Parameter : Electrical Characteristics at Standard Test Conditions(STC)
|
||||||
|
Spec/Mode
|
Unit
|
400W
|
405W
|
410W
|
415W
|
420W
|
|
Max-Power(Pm)
|
W
|
400
|
405
|
410
|
415
|
420
|
|
Max-Power Voltage(Vm)
|
V
|
37.2
|
37.4
|
37.6
|
37.8
|
38
|
|
Open-Circuit Voltage(Voc)
|
V
|
45.4
|
45.6
|
45.8
|
46
|
46.2
|
|
Max-Power Current(Im)
|
A
|
10.75
|
10.83
|
10.90
|
10.98
|
11.05
|
|
Short-Circuit Current(Isc)
|
A
|
11.28
|
11.35
|
11.41
|
11.48
|
11.54
|
|
Effective Module Efficiency(ηm)
|
%
|
20.5
|
20.7
|
21
|
21.2
|
21.5
|
|
Power Tolerance
|
0~5%
|
|||||
|
Nominal Module Operating Temperature
|
43±2℃
|
|||||
|
Temperature coefficient of Voc
|
-0.28%/℃
|
|||||
|
Temperature coefficient of Pmax
|
-0.36%/℃
|
|||||
|
Temperature coefficient of Isc
|
0.06%/℃
|
|||||
|
Installation Module Dimension (L×W×H)
|
1889mmx1035mmx30mm
|
|||||
|
Weight
|
21.0 kg
|
|||||
|
Glass Type
|
High transparent Anti-reflective coated tempered galss/3.2mm
|
|||||
|
Solar Cell
|
132(22*6) / Mono/half cell/MWT
|
|||||
|
Encapsulant
|
EVA
|
|||||
|
Frame
|
Anodized aluminum alloy black
|
|||||
|
Junction box(protection degree)
|
IP68
|
|||||
|
Cable (length/cross-section area)
|
1000mm / 4mm2
|
|||||
|
Connector
|
MC4 Compatible
|
|||||
|
Max. system voltage
|
DC1500V(IEC)
|
|||||
|
Max. series fuse rating
|
20A
|
|||||
|
Operating temperature range
|
-40℃～+85℃
|
|||||
|
Mechanical Load
|
5400Pa(front)/2400Pa(rear)
|
|||||
|
STC: AM=1.5，Irradiation 1000W/m²，Module Temperature 25℃ Power Tolerance ±3%
|
||||||
| Specification | 480w, 485 w, 490w |
|---|
