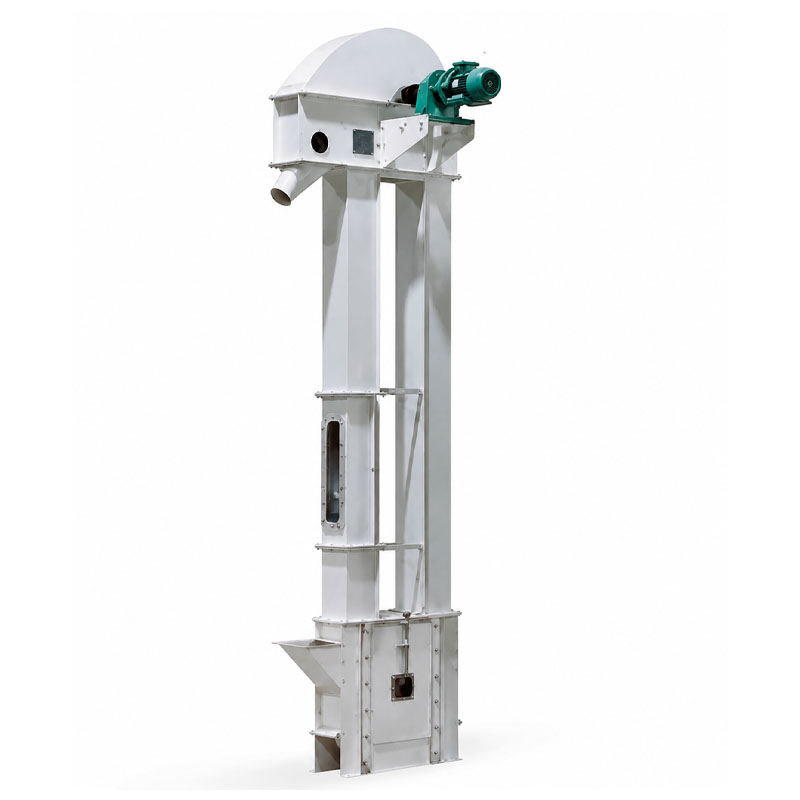

Mobile Bucket Elevator Conveyor for Grain Material Transfer

Mobile Bucket Elevator Conveyor Product Introduction

The Mobile Bucket Elevator Conveyor is a mobile material handling system designed to provide efficient vertical and inclined conveying for various bulk materials. Unlike fixed conveying equipment, it can be easily moved, installed, and adjusted according to different working environments, making it ideal for temporary projects and flexible production requirements.

This portable elevator uses a bucket conveying mechanism driven by a belt or chain system to continuously transport materials from lower feeding points to elevated discharge locations. It is suitable for handling grain, seeds, fertilizer, sand, gravel, aggregates, powders, and other bulk materials.

With advantages including compact design, easy operation, space-saving installation, and flexible capacity options, the portable bucket elevator is widely used in agriculture, construction, mining, warehousing, and manufacturing industries. It provides a practical solution for businesses requiring efficient material transfer in changing locations.

Working Principle

The Portable Bucket Elevator works by using a series of buckets attached to a belt or chain system to lift materials vertically. Bulk materials are loaded into the bottom hopper and collected by moving buckets. Driven by the motor and transmission system, the buckets travel upward along the conveying path and release materials through the discharge chute at the top. After unloading, empty buckets return to the feeding section to repeat the cycle, ensuring continuous and stable material transportation.

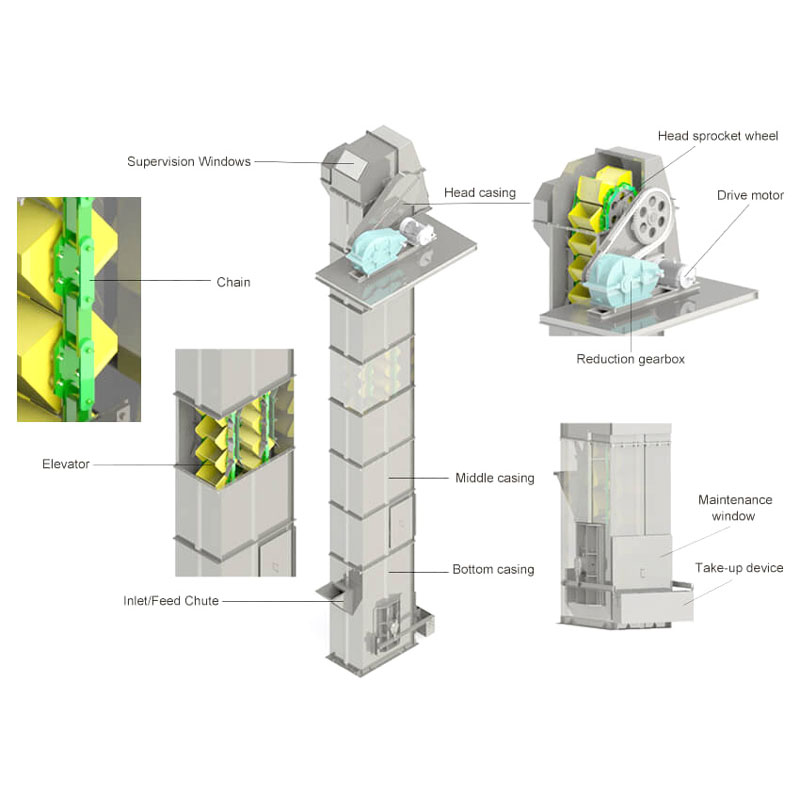

System Structure

1. Frame Structure

The frame provides stable support for the entire conveyor system while allowing convenient movement and relocation. The structure is designed for durability and easy installation in different working environments.

2. Bucket Assembly

The bucket assembly consists of multiple buckets connected at regular intervals to carry materials during vertical transportation. Different bucket materials can be selected according to material characteristics and application requirements.

3. Belt or Chain System

The belt or chain mechanism drives the buckets along the conveying route. It provides continuous movement and ensures reliable material lifting performance.

4. Drive System

The drive system includes a motor and transmission components that provide stable power for bucket movement. Adjustable speed options can help control material flow according to production needs.

5. Discharge Chute

The discharge chute guides materials smoothly to the required location or downstream equipment, improving transfer efficiency and reducing material loss.

Product Parameter Table

Parameter	Specification
Conveying Type	Bucket Elevator
Maximum Material Size	≤60 mm
Conveying Capacity	38–92 ton/hour
Lifting Speed	1.8 m/s
Belt Width	600 mm
Lifting Height	≤40 m
Material Handling	Grain, Aggregate, Fertilizer, Bulk Material
Application	Agriculture, Construction, Mining, Industrial Handling

Main Features

1. Portable design allows easy transportation between different working locations
2. Flexible installation supports temporary projects and changing production requirements
3. Efficient vertical conveying improves bulk material handling performance significantly
4. Compact structure saves installation space in limited working areas
5. Suitable for grain, seed, fertilizer, aggregate, and industrial materials
6. Easy operation reduces installation time and daily maintenance requirements
7. Adjustable configuration meets different capacity and conveying height requirements
8. Reliable drive system ensures continuous and stable material transportation
9. Mobile design provides a cost-effective alternative to fixed conveyors
10. Durable construction supports long-term operation in various industries

Application Scenarios

1. Construction Site Material Transfer

Used for transporting sand, gravel, concrete materials, and construction waste between different working areas.

2. Agriculture and Grain Handling

Suitable for lifting grain, seeds, fertilizers, and agricultural products during loading and unloading operations.

3. Mining and Quarrying

Used for conveying minerals, aggregates, and bulk materials from excavation areas to processing locations.

4. Warehouse and Distribution

Helps move bags, cartons, and bulk products between storage areas and loading points.

5. Fertilizer Production

Provides efficient vertical transportation for fertilizer particles and granular materials.

6. Manufacturing Industry

Supports flexible material transfer in production lines requiring mobile conveying solutions.

Advantages

Easy Mobility

The portable structure allows the equipment to be quickly relocated according to different project requirements.

Flexible Material Handling

It can handle various bulk materials including agricultural products, minerals, and industrial particles.

Space Saving Design

The compact vertical conveying structure reduces the required installation area.

Cost Effective Solution

It reduces the need for multiple fixed conveying systems by providing flexible operation.

Simple Installation and Maintenance

The user-friendly structure makes setup, operation, and maintenance more convenient.

Suitable Materials

• grain
• seed
• wheat
• corn
• fertilizer
• sand
• gravel
• aggregate
• pellet
• powder material
• bulk material

FAQ

Q1: What materials can the Portable Bucket Elevator handle?

The portable bucket elevator can transport various bulk materials, including grain, seeds, fertilizer, sand, gravel, aggregates, pellets, and other granular products.

Q2: What are the advantages of a portable bucket elevator?

It offers easy transportation, flexible installation, space-saving design, and efficient material handling for temporary or changing work locations.

Q3: Can the portable bucket elevator be moved between different locations?

Yes. The compact and mobile design allows the equipment to be easily relocated according to different project or production requirements.

Q4: Is the portable bucket elevator suitable for grain handling?

Yes. It is widely used for lifting grain, seeds, corn, wheat, and other agricultural materials during loading, unloading, and storage operations.

Q5: Can the conveying height and capacity be customized?

Yes. The conveying height, capacity, bucket type, and configuration can be customized according to specific application requirements.

Q6: How does the portable bucket elevator work?

Materials are loaded into the bottom hopper, lifted by moving buckets along a belt or chain system, and discharged smoothly at the required height.

Q7: What industries use portable bucket elevators?

They are commonly used in agriculture, construction, mining, warehousing, fertilizer production, and industrial material handling applications.

Q8: Is the portable bucket elevator easy to install and maintain?

Yes. Its simple structure and mobile design make installation, operation, cleaning, and maintenance convenient.

Q9: Can this equipment handle different types of bulk materials?

Yes. The bucket design and conveying system can be adjusted to meet different material characteristics and handling requirements.

Q10: What information is needed to select the right portable bucket elevator?

Customers should provide material type, conveying capacity, lifting height, feeding method, discharge location, and working environment requirements.
