LMK12LUU Linear Ball Bearings 12mm Square Flange Linear Motion Bushing Double Side Rubber Sealed 4 Pack for 12mm 3D Printer

Add to wishlist
Compare

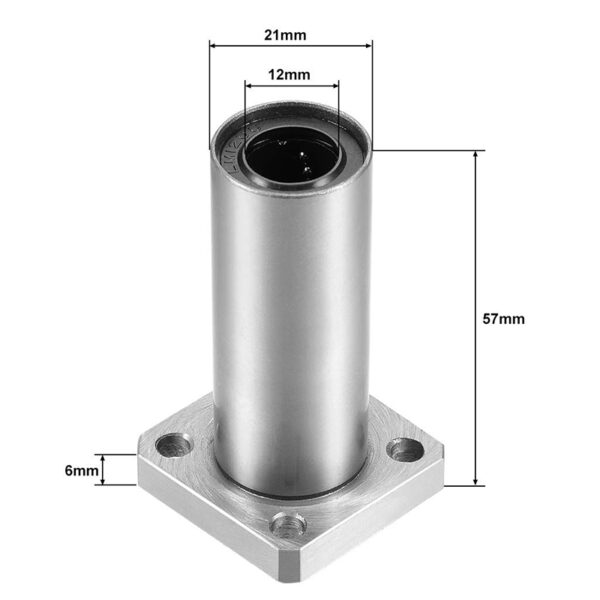

  • SIZE：Model: LMK12LUU, Bore Diamter (dr): 12mm, Outer Diameter (D): 21mm, Total Length (L): 57mm, Flange Base(L*W):32mm*32mm
  • DOBLE SEALED DESIGN: The Slide Bearing are double sealed, so as to avoid contaminants entering and save lubricant; Static Load Capacity (Cor): 1200N, Dynamic Load Capacity (Cr): 657N
  • USAGE：Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways
  • APPLICATIONS: Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, drive shaft, guide bar, drive shaft,pillar,CNC machines, electronic equipment, food machinery, packaging machinery, etc.

$37.00

Compare

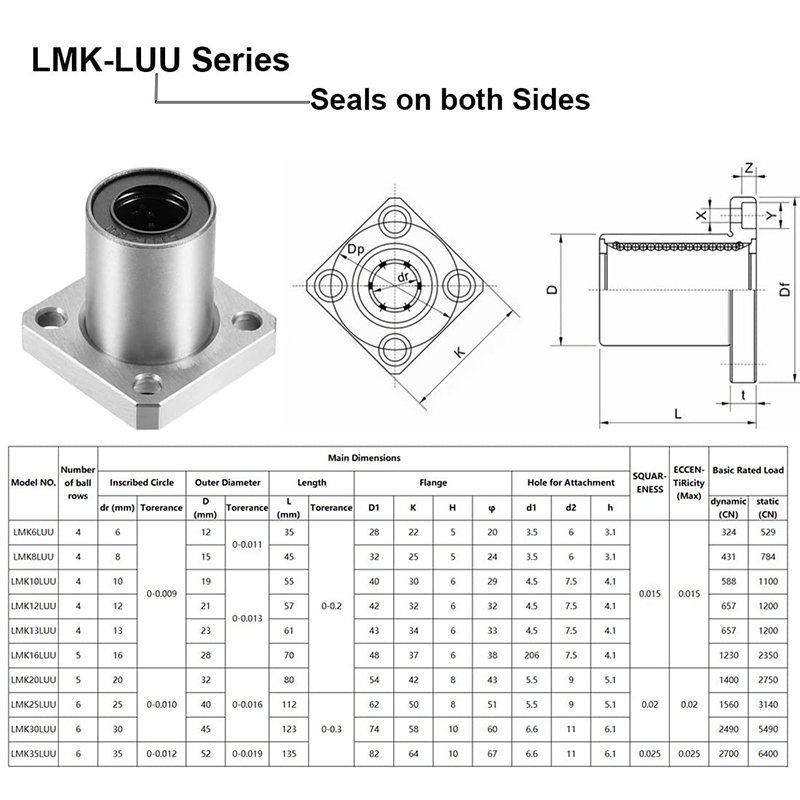

Basic information of LMK12LUU Linear Ball Bearings

Model LMK12LUUU
Housing Material Chrome Steel
Finished Nickel Plated
Inner Diameter 12mm
Outer Diameter 21mm
Total Length 57mm
Flange Size 32 x 32 x 6mm / 1.26 x 1.26 x 0.24inch (L*W*H)
Ball Circuit 4
Static Load Capacity (Cor) 1200N
Dynamic Load Capacity (Cr) 657N
Package Contents 4 x Linear Bearings

Feature

  1. Made of Carbon Steel material, Double Side Rubber Seal Linear Motion Ball Bearing Bushing.
  2. Great for linear motion on 3D printer, CNC, and other applications.
  3. These ball bearing are fitted with two rubber dust sealed to prevent ingress of dirt, water and foreign matter.
  4. Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permitting temperature within 80 degrees Celsius.
  5. Smooth moving, low friction, high rigidity, and long life. Economical, easy to maintain replace.

Category: Tags: ,
