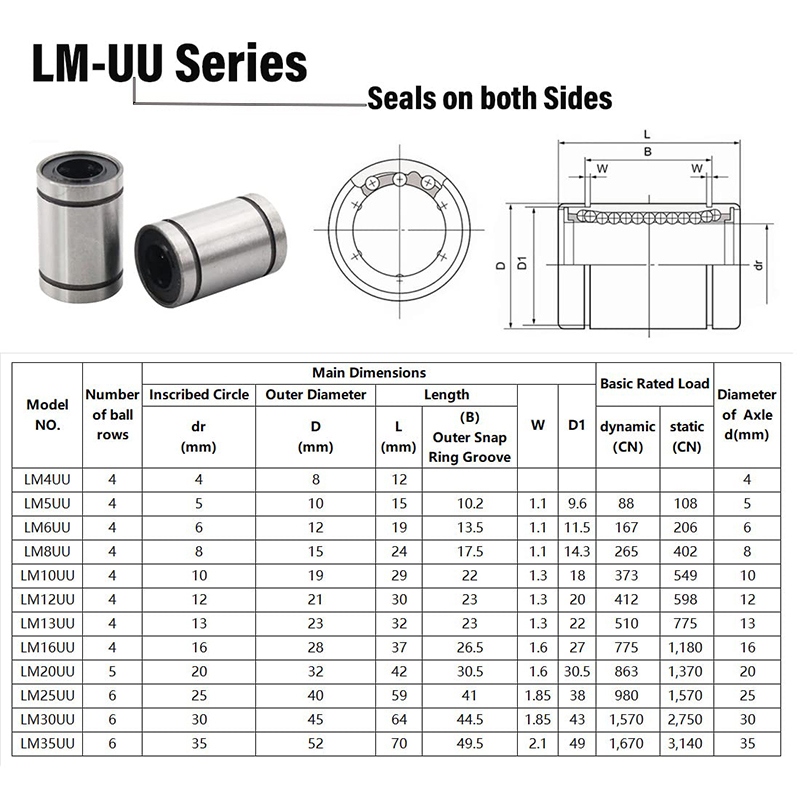

Features of LM16UU Linear Ball Bearings
- [SIZE] – Model: LM16UU, 16x28x37mm Metric Double Seal Linear Bearing
- [USAGE] – Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways.
- [FEATURES] – These ball bearing with two rubber dust sealed to prevent ingress of dirt, water and foreign matter
- [CAPABILITY] – Static Load Capacity (Cor): 775N, Dynamic Load Capacity (Cr): 1180N (Recommended load is 80% of rated load, not to exceed rated load.)
- [APPLICATIONS] – Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, ect.
| Bearing Number | LM16UU |
| Bearing Type | Ball Bearing |
| Compatible Lubricant Type | Grease |
| Material | Rubber |
| Measurement System | Metric |
| Size | 16mmx28mmx37mm |
