Liquid Premade Pouch Packaging Production Solution SS304

Liquid Premade Pouch Packaging Product Introduction

This liquid premade pouch packaging production solution is designed for automatic filling and sealing of liquid and semi-liquid products such as detergent, facial cleanser, shampoo, sauce, juice and other flowable materials. The system integrates pouch feeding, liquid filling, sealing and finished product output into one complete automatic packaging system.

Premade pouch packaging has become a widely used packaging method due to its flexibility, high efficiency and strong product presentation. It is suitable for stand-up pouch, doypack and other premade pouch formats used in food, daily chemical and industrial applications.

The solution adopts a stable liquid filling system combined with precise sealing technology to ensure accurate dosing, consistent packaging quality and reliable sealing performance. Built with SS304 food grade stainless steel, the machine ensures hygienic production, corrosion resistance and long service life.

Compared with traditional packaging methods, this system significantly improves production efficiency, reduces labor cost and enhances product consistency. It can be integrated with mixing, conveying, storage and inspection systems to form a complete automated liquid packaging production line.

This solution is widely used as a premade pouch packaging system, liquid filling system and automatic pouch sealing production line in modern manufacturing industries.



Production Process Description

1. Premade Pouch Feeding
Automatic pouch feeding system supplies empty pouches to the packaging station

2. Pouch Opening and Positioning
The pouch is opened and accurately positioned for filling

3. Liquid Filling System
The system performs controlled liquid filling to ensure accurate volume and stable flow

4. Sealing Process
The pouch is sealed with precise temperature and pressure control for strong sealing quality

5. Output and Conveying
Finished products are discharged automatically for further packaging or inspection



Technical Specifications

Machine type	Liquid premade pouch packaging system
Application	Detergent, shampoo, sauce, juice, liquid products

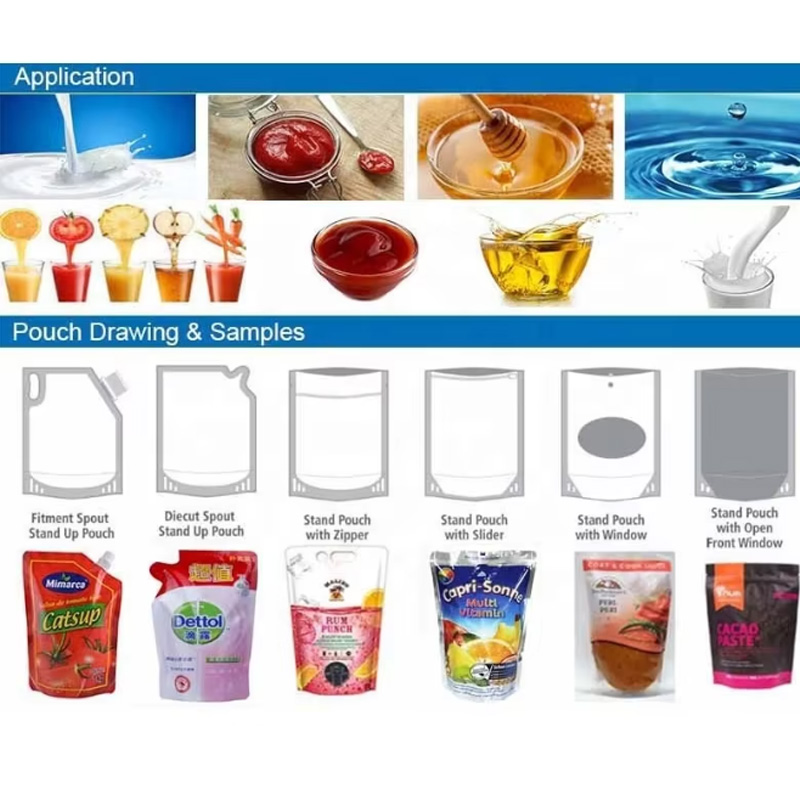

Packaging type	Premade pouch, stand-up pouch, doypack
Filling method	Volumetric or piston liquid filling
Production capacity	20–80 bags/min
Filling volume range	50–2000 ml adjustable
Filling accuracy	±1%
Pouch handling	Automatic pouch feeding and opening
Sealing type	Heat sealing
Control system	PLC with touch screen
Machine material	SS304 stainless steel
Power supply	220V / 380V / 415V
Air pressure	0.6–0.8 MPa
Optional system	Coding, labeling, inspection
Integration	Compatible with full production line

Note:
All specifications can be customized based on product characteristics, packaging format and production requirements.

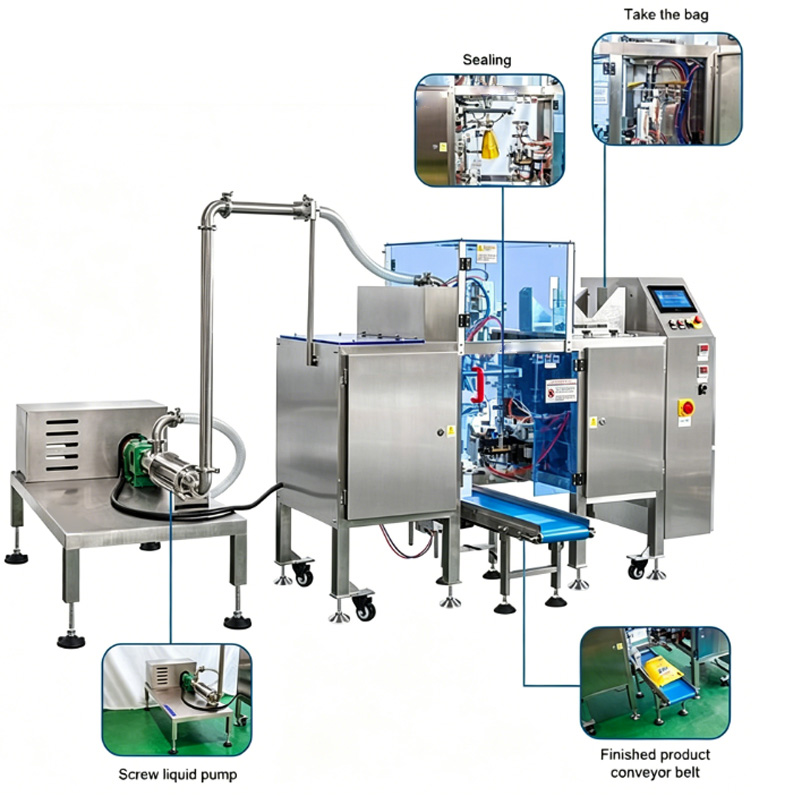

Solution Composition

. Premade pouch feeding system

. Pouch opening and positioning system

. Liquid filling system

. Heat sealing system

. PLC control system

. Finished product conveyor

. Optional coding and labeling system

. Optional inspection system

Industry Applications

This premade pouch packaging solution is widely used in:

Daily chemical manufacturing industries

Food and beverage processing factories

Liquid detergent and cleaning product production

Sauce and condiment packaging industries

Cosmetic and personal care product manufacturing

OEM and contract packaging production lines



Main features

. Fully automatic premade pouch packaging system integrates pouch feeding, opening, liquid filling, sealing and output into one continuous production process, significantly improving production efficiency

. High precision liquid filling system ensures accurate dosing and consistent product quality for various liquid and semi-liquid products such as detergent, shampoo, sauce and beverages

. Stable pouch feeding and positioning system ensures reliable handling of premade pouch formats, reducing downtime and improving production stability

. Advanced sealing system with precise temperature and pressure control provides strong and leak-proof sealing performance for different pouch materials

. Designed for a wide range of liquid viscosities, suitable for low to medium viscosity products with stable flow control and smooth filling performance

. SS304 food grade stainless steel construction ensures hygienic production, corrosion resistance and long service life in industrial environments

. Intelligent PLC control system with user-friendly touch screen interface allows easy operation, real-time monitoring and quick parameter adjustment

. Flexible configuration supports different pouch sizes, filling volumes and product types, making it suitable for multi-product production lines

. Modular design allows seamless integration with upstream equipment such as mixing tanks, storage systems and conveying systems



Application Scenarios

. Liquid detergent packaging for household and industrial cleaning product manufacturers targeting retail and bulk markets

. Shampoo and personal care product packaging for cosmetic brands requiring attractive and reliable pouch packaging solutions

. Sauce and condiment packaging for food processing companies handling liquid and semi-liquid products

. Juice and beverage packaging for manufacturers supplying retail, export and private label markets

. Stand-up pouch and doypack packaging for flexible packaging applications requiring strong shelf presentation

. Automated packaging lines replacing manual or semi-automatic pouch filling systems to improve efficiency and reduce labor cost

. OEM and contract packaging operations handling multiple liquid products with flexible production requirements

. Industrial production environments requiring continuous, stable and high efficiency liquid packaging systems

Why Choose This Machine

. Complete packaging production solution instead of single machine

. Suitable for multiple industries including food and daily chemical

. Stable performance for continuous industrial operation

. Flexible configuration for different products and packaging formats

. Hygienic SS304 design meets industrial standards

. Easy integration with upstream and downstream systems

With extensive experience in food processing equipment, we have successfully delivered packaging solutions to customers worldwide.

FAQ

What products can this system package?
It is suitable for detergent, shampoo, sauce, juice and other liquid products

What pouch types are supported?
It supports premade pouch, stand-up pouch and doypack packaging formats

Is the system suitable for industrial production?
Yes, it is designed for continuous and stable industrial operation

Can the system be customized?
Yes, it can be customized based on production requirements

Is the machine easy to operate?
Yes, it uses PLC control system with user-friendly interface

Can it be integrated into a production line?
Yes, it can be integrated with mixing and packaging systems

Contact us today to get a customized packaging solution and detailed quotation. Our engineering team will provide professional technical support and guidance.
