Level Gauges, Measuring & Inspecting

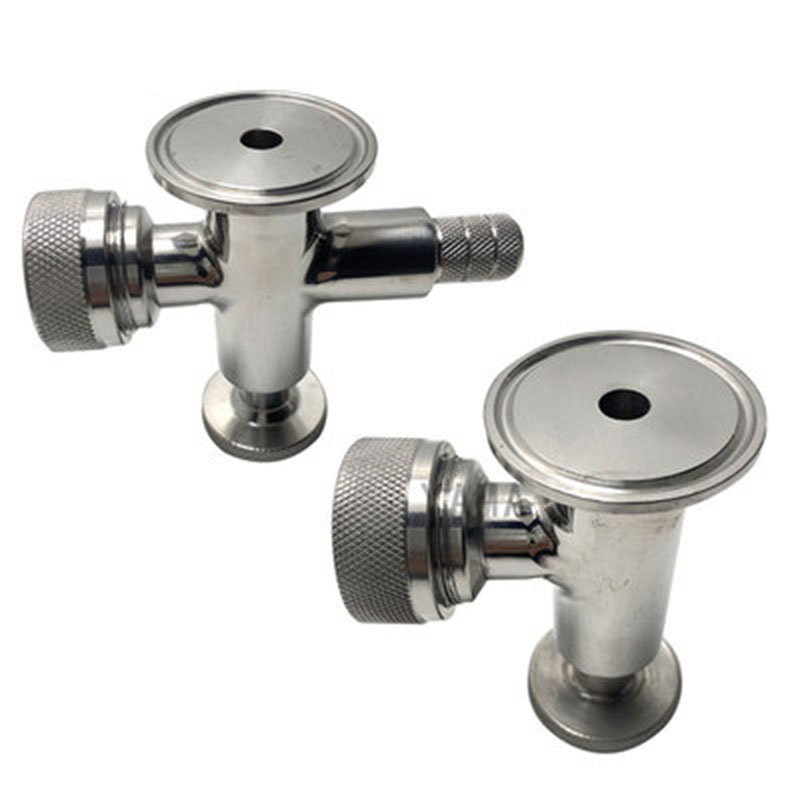

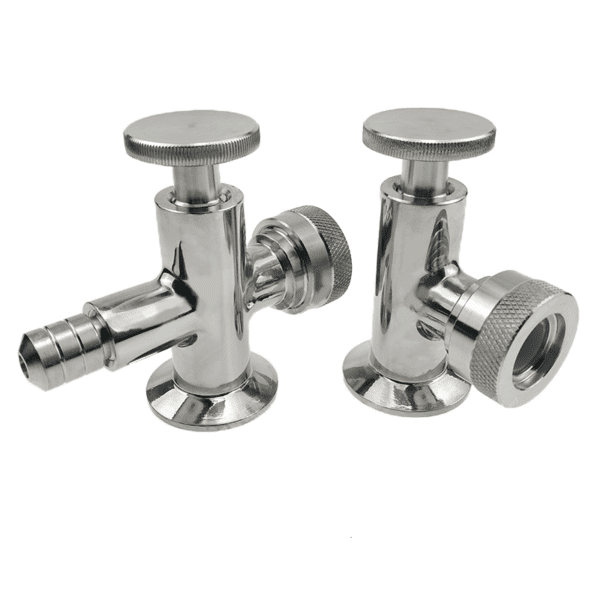

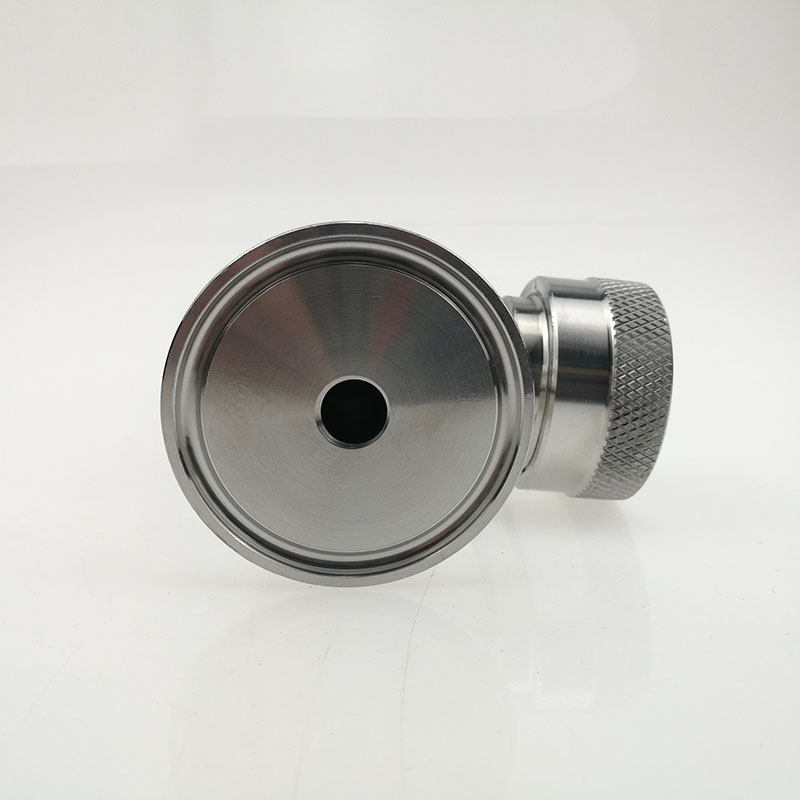

Liquid level gauge sanitary stainless steel 304 with three clip accessories sight horizontal glass meter upper valve kettle sight horizontal valve
1. Material: 304 stainless steel
2. Triple clamp size: 1.5 inches
3. For 19mm tube
$38.00
CompareLevel Gauge Features
1. Food grade silicone seal
2. Made of 304 stainless steel
3. Round handle
Related products
-
Measuring & Inspecting, Dimensional Measuring Tools
150mm vernier caliper with watch high precision laser scale stainless steel
Measuring & Inspecting, Dimensional Measuring Tools150mm vernier caliper with watch high precision laser scale stainless steel
1. IP54 waterproof and dustproof
2. Upgrade the shockproof sponge box
3. Straightedge reading is simple and stable
4. Ruby bearings are wear-resistant and durable
5. Quenching hardened rack
6. Shockproof and durable spring structure
7.45 degree chamfer structure
8. Depth bar one-piece structure does not deformSKU: n/a -
Level Gauges, Measuring & Inspecting
DC24V level gauges 0-4m integrated split ultrasonicwater level meter sensor explosion-proof 4-20mA control 485 communication
Level Gauges, Measuring & InspectingDC24V level gauges 0-4m integrated split ultrasonicwater level meter sensor explosion-proof 4-20mA control 485 communication
Product Name: Ultrasonic Liquid Level Gauges Display mode: 5-digit LCD liquid crystal display liquid level or space distance Product model: BOOSTLUA.0101A Input power: DC24V (±10%) 80mA or AC220V 50mA Measuring range: liquid: 0-15m each file Temperature compensation: full range automatic Blind zone: 0.25~0.6m; Pressure range: ±0.1MPa Accuracy grade: 0.2% (in air) Sound Beam Angle: 5°(3db) Output: 4-20mA (optional RS485/MODBUS communication) Detection cycle: 1 second Output resolution: 0.03% of the actual range Parameter setting: 3 felt buttons Output load: 0-500Ω Cable device: PGI3.5 sealing sleeve Switch output: high and low relay normally open Shell material: ABS Relay specifications: AC250V 5A/DC30V Sensor material: PVC Display resolution: 1mm Protection class: IP67 Medium temperature: -45-85C Installation method: thread (flange) or fixing hole (bracket) SKU: n/a
