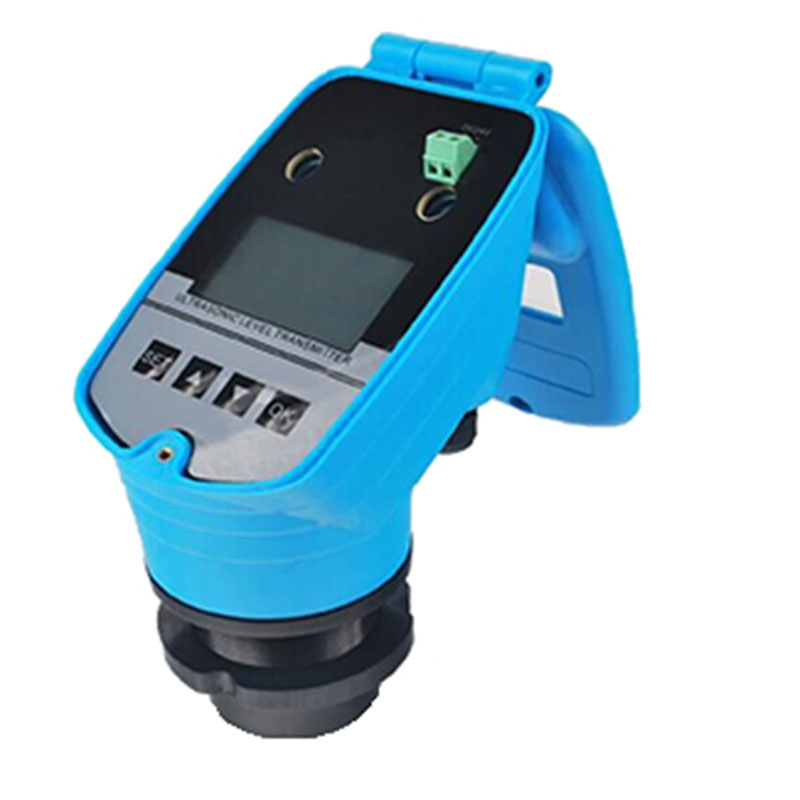

DC24V level gauges 0-4m integrated split ultrasonicwater level meter sensor explosion-proof 4-20mA control 485 communication
| Product Name: Ultrasonic Liquid Level Gauges | Display mode: 5-digit LCD liquid crystal display liquid level or space distance |
| Product model: BOOSTLUA.0101A | Input power: DC24V (±10%) 80mA or AC220V 50mA |
| Measuring range: liquid: 0-15m each file | Temperature compensation: full range automatic |
| Blind zone: 0.25~0.6m; | Pressure range: ±0.1MPa |
| Accuracy grade: 0.2% (in air) | Sound Beam Angle: 5°(3db) |
| Output: 4-20mA (optional RS485/MODBUS communication) | Detection cycle: 1 second |
| Output resolution: 0.03% of the actual range | Parameter setting: 3 felt buttons |
| Output load: 0-500Ω | Cable device: PGI3.5 sealing sleeve |
| Switch output: high and low relay normally open | Shell material: ABS |
| Relay specifications: AC250V 5A/DC30V | Sensor material: PVC |
| Display resolution: 1mm | Protection class: IP67 |
| Medium temperature: -45-85C | Installation method: thread (flange) or fixing hole (bracket) |
$100.00
CompareLevel Gauges Features
1. The circuit design selects high-quality power supply modules from the power supply part, and selects high-stable and reliable components for components.
2. The patented sound wave intelligent technology software can perform intelligent echo analysis without any debugging and other special steps. This technology has the functions of dynamic thinking and dynamic analysis. The accuracy of the instrument is greatly improved, the accuracy reaches 0.3%, and it can resist various interference waves.
3. This instrument is a non-contact instrument, which does not directly contact with liquid, so the failure rate is low. The meter provides a variety of installation methods, and the user can completely calibrate the meter through this manual.
4. All input and output lines of the instrument have protection functions against lightning and short circuit.
level gauges
