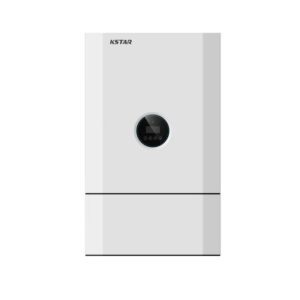

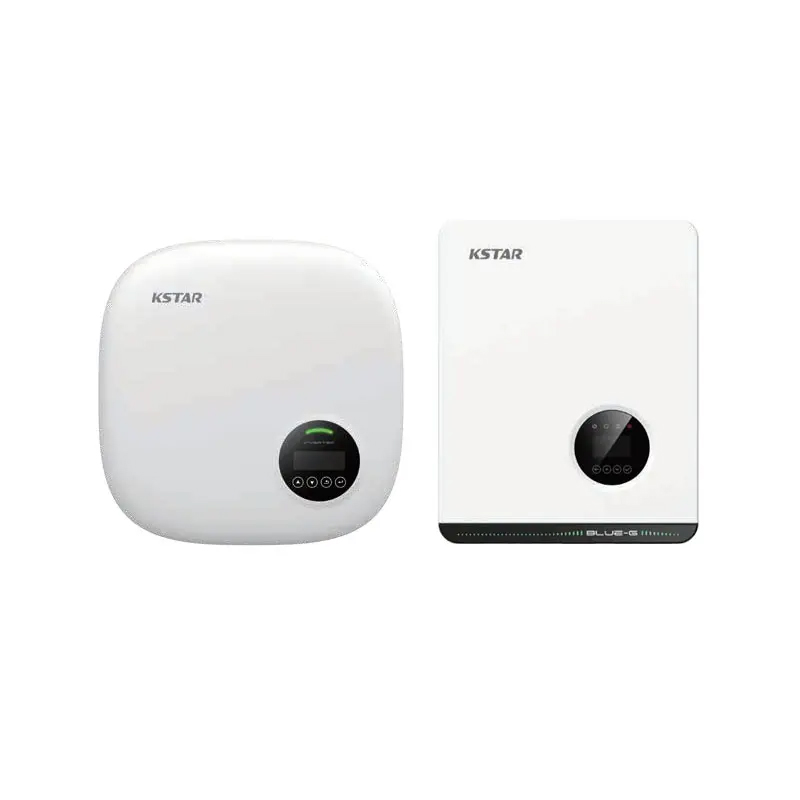

KSTAR String Grid-Tied PV Inverter for New Energy Power Generation Project

Add to wishlist
Compare

General Features
● Max. PV voltage up to 1100V
● Type II DC /AC SPD
● DC/AC ratio up to 2
● IP66 protection
● Compatible for big capacity PV panel
● WiFi / 4G Plug optional
● High efficiency up to 98.6%
● Smaller and lighter

$990.00

Compare

PV Inverter MODEL
BluE-6KT
Input(DC)
Max. remonmmended PV power
10000W
Max. DC voltage
1100V
Nominal voltage
600V
Start voltage
180V
MPPT voltage range
140V-1000V
Number of MPP tracker
2
Strings per MPP tracker
1
Max. input current per MPPT
15A
Max. short-circuit current per MPPT
25A
Output(DC)
Nominal AC output power
6000W
Max. AC apparent power
6600VA
Nominal AC voltage
400V 3L+N
AC grid frequency range
50/60Hz(±5Hz)
Max. output current
10.1A
Power factor(cosø)
0.8leading-0.8lagging
THDi
3%
Efficiency
Max. efficiency
98.4%
Euro efficiency
97.5%
ProtectionDevices
DC switch
Yes
Anti-islanding protection
Yes
Output over current
Yes
DC reverse polarity protection
Yes
String fault Detection
Yes
Surge protection
Type II
Insulation detection
Yes
AC short circuit protection
Yes
General Specifications
Dimensions W x H x D (mm)
380*483*161
Weight(kg)
<18
Operating temperature range
-25℃~+60℃
Cooling type
Natural cooling
Max. operation altitude
4000m
Max. operation humidity
0-100%(No condensation)
AC Output terminal type
Connector
IP class
IP65
Topology
Transformer-less
Communication
RS485/Wifi/4G
Display
LCD
Certification & Standard
EN/IEC62109-1/2；IEC/EN61000-6-2;IEC/EN61000-6-4;IEC61683;IEC60068;IEC60529;IEC62116;IEC61727;
EN50549-1;AS 4777.2;VDE-AR-N-4105;VDE 0126-1-1;CEI0-21;G98;G99;C10/C11;NB/T32004-2018；GB/T19964-2012
