Kstar Inverter BluE-S-3680D/5000D 3.68KW 5KW All In One Energy Storage Hybrid Inverter

Add to wishlist
Compare

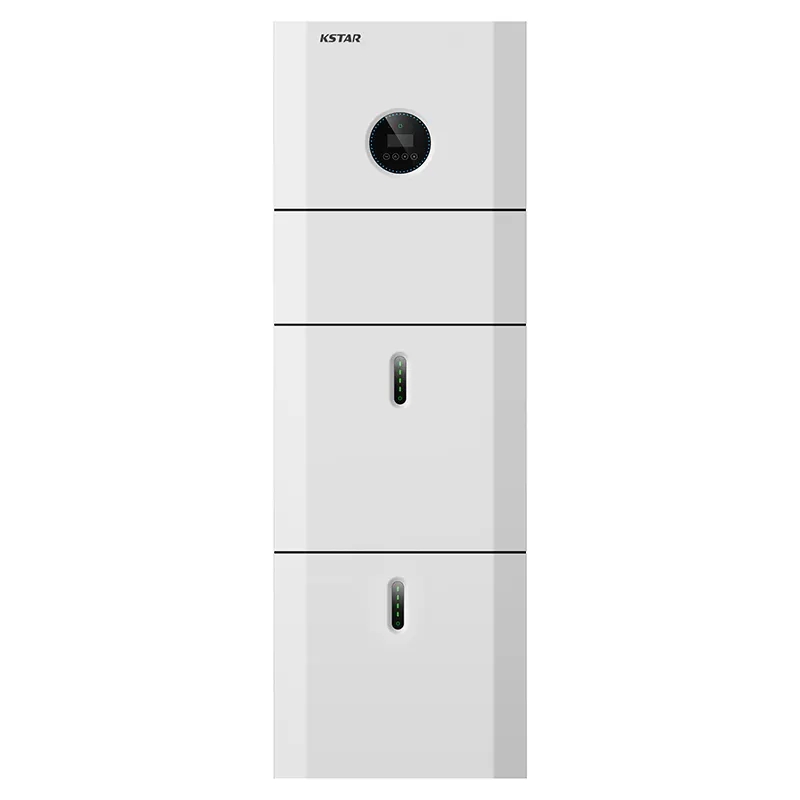

Object
Descripition
1
Hybrid Inverter BluE-S 5000D/3680D
2
EMS Display Screen
3
Cable Box (connected to Inverter)
4
BluE-PACK5.1 (Battery 1)
5
BluE-PACK5.1 (Battery 2, if confifigured)

$3,900.00

Compare

BluE Series is the optimal choice for hybrid systems,which is designed with CATL Battery Solution + KSTAR Inverter Solution. The all-In-one single phase storage solution is safe, reliable and higher yields. The energy storage system is produced by the joint venture CATL-KSTAR.

Inverter Technical Specification
BluE-S 3680D
BluE-S 5000D
PV String Input
Max. DC Input Voltage (V)
580
Nominal voltage (V)
400
MPPT voltage range
120V-550V
Startup voltage
130V
MPPT voltage range at full load
184~550V
Number of MPPT
2
No. of Strings per MPPT
1
Max. input current per MPPT
13A
Max. short-circuit current per MPPT
16A
AC Output (Grid)
Nominal AC output power
3680W
4999W
Max. AC apparent power
7360VA（from grid)
Maximum AC output power
3680W
4999W
Nominal AC voltage
230Vac
AC grid frequency range
50 / 60Hz±5Hz
Max. output current
16A
Max. input current
32A
Power factor (cosΦ)
0.8leading-0.8lagging
THDi
<3%
Battery Input
Battery Type
LFP (LiFePO4)
Nominal Battery Voltage
51.2V
Max. Charging Voltage
57.6V
Max. Charging Current
50A
100A
Max. Discharging Current
80A
100A
Battery Capacity
100-400Ah
Charging Strategy for Li-Ion Battery
Depend on the BMS
AC Output (Backup)
Max. Output Apparent Power
4000VA
Peak Output Apparent Power
6900VA 10sec
Max. Output Current
16A
Nominal Output Voltage
230±0.2%
Nominal Output Freqency
50/60Hz±0.2%
Output THDv (@Linear Load)
<2%（Linear load）/<2%
Efficiency
Max. PV Eciency
97.60%
Euro. PV eciency
97.00%
Max. Battery to Load Eciency
94.00%
Battery charged by PV Max. Eciency
98.00%
Protection
DC switch
Bipolar DC Switch (125A/Pole)
Anti-islanding protection
Yes
Output over current
Yes
DC reverse polarity protection
Yes
String fault Detection
Yes
AC/DC surge protectio
DC Type II;AC Type III
Insulation detection
Yes
AC short circuit protection
Yes
General Specifications
Dimensions W x H x D (mm)
540*590*240mm
Weight(kg)
32kg
Operating temperature range
0℃~+55℃(Charging)/-20℃~+55℃(DisCharging)
Noise (dB)
<25
Cooling type
Natural Convection
Max. operation altitude
≤2000m
Max. operation humidity
0~95% (No condensation)
IP class
IP65
Topology
Battery Isolation
Communication
RS485/CAN2.0/WIFI
Display
LCD/APP
Certifcation & Standard
IEC/EN 62109-1&2;IEC/EN61000-6-1;IEC/EN61000-6-2;EN61000-6-3; IEC/EN61000-6-4;IEC/EN61000-3-11;
EN61000-3-12;IEC60529;IEC 60068;IEC61683;IEC62116;IEC61727;EN50549-1;
AS 4777.2;NRS 097;VDE-AR-N-4105;CEI0-21;G98;G99;C10/C11
