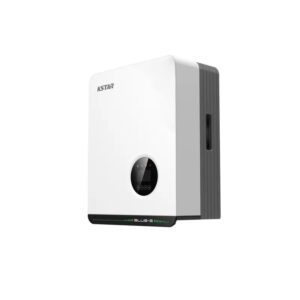

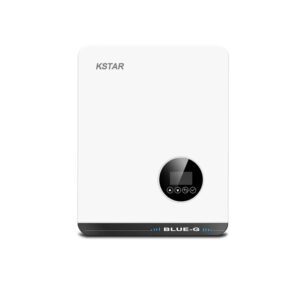

Kstar BluE-S 5000D Single Phase Inverter 5kWh For Home Solar System

Add to wishlist
Compare

1.Safety:
CATL LP Battery,stable and safe.
Module,pack,system,triple protection.
ip65,outdoor installation,away from living zoon.
2.Simple:
Modular design,single person can carry and install it.
Plug and play,30 min quick installation
Space saving;0.15 sq installation
3.Interconnection:
Global cloud platorm & Mobile APP,
anytime and any where.
Open API, Support power internet applications

$3,900.00

Compare
Hybrid Inverter Model
BluE-S 3680D
BluE-S 5000D
PV String Input
Max. DC Input Power (W)
4800
6500
Max. DC Input Voltage (V)
580
580
Nominal voltage (V)
400
400
MPPT voltage range
120V-550V
120V-550V
Startup voltage
130V
130V
MPPT voltage range at full load
184~550V
184~550V
Number of MPPT
2
2
No. of Strings per MPPT
1
1
Max. input current per MPPT
13A
13A
Max. short-circuit current per MPPT
16A
16A
AC Output (Grid)
Nominal AC output power
3680W
4999W
Max. AC apparent power
7360VA（from grid)
7360VA（from grid)
Maximum AC output power
3680W
4999W
Nominal AC voltage
230Vac
230Vac
AC grid frequency range
50 / 60Hz±5Hz
50 / 60Hz±5Hz
Max. output current
16A
16A
Max. input current
32A
32A
Power factor (cosΦ)
0.8leading-0.8lagging
0.8leading-0.8lagging
THDi
<3%
<3%
Battery Input
Battery Type
LFP (LiFePO4)
LFP (LiFePO4)
Nominal Battery Voltage
51.2V
51.2V
Max. Charging Voltage
57.6V
57.6V
Max. Charging Current
50A
100A
Max. Discharging Current
80A
100A
Battery Capacity
100-400Ah
100-400Ah
Charging Strategy for Li-Ion Battery
Depend on the BMS
Depend on the BMS
AC Output (Backup)
Max. Output Apparent Power
4000VA
4000VA
Peak Output Apparent Power
6900VA 10sec
6900VA 10sec
Max. Output Current
16A
16A
Nominal Output Voltage
230±0.2%
230±0.2%
Nominal Output Freqency
50/60Hz±0.2%
50/60Hz±0.2%
Output THDv (@Linear Load)
<2%（Linear load）/<2%
<2%（Linear load）/<2%
Efficiency
Max. PV Eciency
97.60%
97.60%
Euro. PV eciency
97.00%
97.00%
Max. Battery to Load Eciency
94.00%
94.00%
Battery charged by PV Max. Eciency
98.00%
98.00%
Protection
DC switch
Bipolar DC Switch (125A/Pole)
Bipolar DC Switch (125A/Pole)
Anti-islanding protection
Yes
Yes
Output over current
Yes
Yes
DC reverse polarity protection
Yes
Yes
String fault Detection
Yes
Yes
AC/DC surge protection
DC Type II;AC Type III
DC Type II;AC Type III
Insulation detection
Yes
Yes
AC short circuit protection
Yes
Yes
General Specifications
Dimensions W x H x D (mm)
540*640*240
Weight(kg)
32
Operating temperature range
0℃~+55℃(Charging)/-20℃~+55℃(DisCharging)
Noise (dB)
<25
Cooling type
Natural Convection
Max. operation altitude
≤2000m
Max. operation humidity
0~95% (No condensation)
IP class
IP65
Topology
Battery Isolation
Communication
RS485/CAN2.0/WIFI
Display
LCD/APP
Certifcation & Standard
AS/NZS 4777.2; CEI 0-16; IEC/EN 62109-1&2, IEC62040-1; IEC62116;IEC61727;
EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4,EN61000-4-16, EN61000-4-18, EN61000-4-29

Safety:
CATL LP Battery,stable and safe.
Module,pack,system,triple protection.
ip65,outdoor installation,away from living zoon.
Simple:
Modular design,single person can carry and install it.
Plug and play,30 min quick installation
Space saving;0.15 sq installation
Interconnection:
Global cloud platorm & Mobile APP,
anytime and any where.
Open API, Support power internet applications
