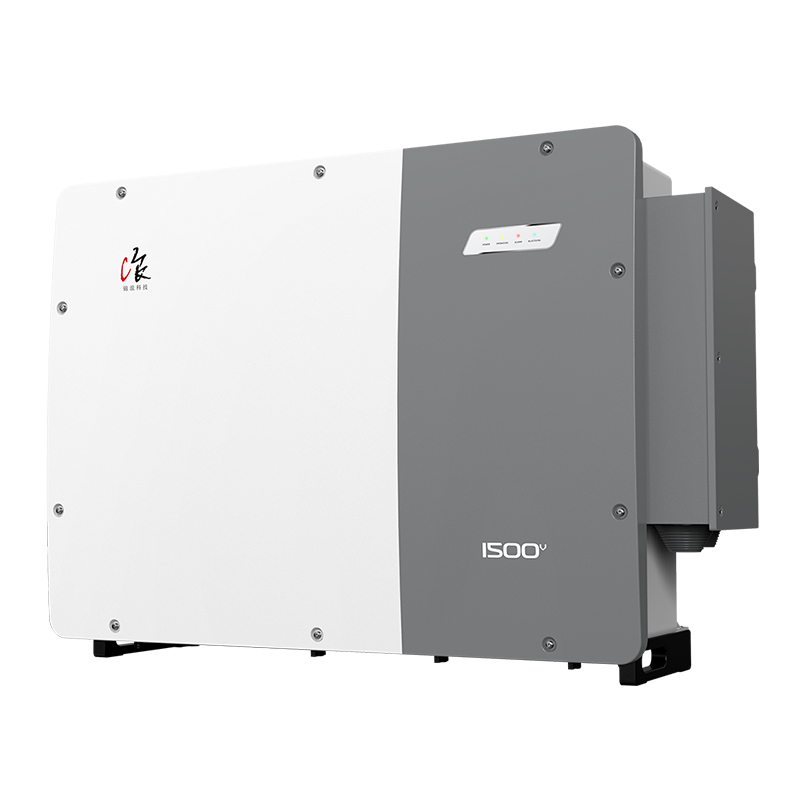

Jinlang Technology 320kW three-phase string photovoltaic inverter, G6-GU320K-EHV industrial and commercial solar photovoltaic inverter


Ginlong Technology’s 320kW three-phase string photovoltaic inverter, 1500V DC input and 800VAC output, aims to provide more cost-effective adaptation products for large power plants. The product has a maximum efficiency of 99%, 12/16-channel MPPT, supports a maximum of 32-channel input, and a single-string maximum current of 20A. It perfectly matches high-efficiency and high-power components, and supports 150% high ratio scheme design, bringing more benefits to the power station. The AC and DC connection port is optimized, and at the same time it matches the PLC communication mode, which effectively reduces the investment cost of the power station. Optional built-in PID repair function and no fuse design, this model meets IP66 protection level, making the power station safer and more stable. High-precision string-level monitoring and I-V curve scanning can effectively improve the efficiency of power plant operation and maintenance and reduce the cost of later operation and maintenance.

$5,760.00

Compare

320kW three-phase string inverter

Leading Features
Maximum efficiency 99.0%
IP66, C5 anti-corrosion grade
PID fix to improve module performance
No fuse design, safe and maintenance-free
String-level monitoring, intelligent I-V curve scanning
One-click scan code to access Jinlang cloud, support remote upgrade
12/16-channel MPPT design, supporting 150% DC side over-provisioning
Support night SVG function, power factor adjustable range ±0.8
Support PLC communication mode, reduce communication cable and construction cost
Integrated tracking bracket power interface, saving cables and construction costs
Support aluminum wire access up to 400mm², saving the cost of AC cables
Wide MPPT current design, perfectly matching 182 and 210 series bifacial modules

Specification

530w, 535w, 545w
