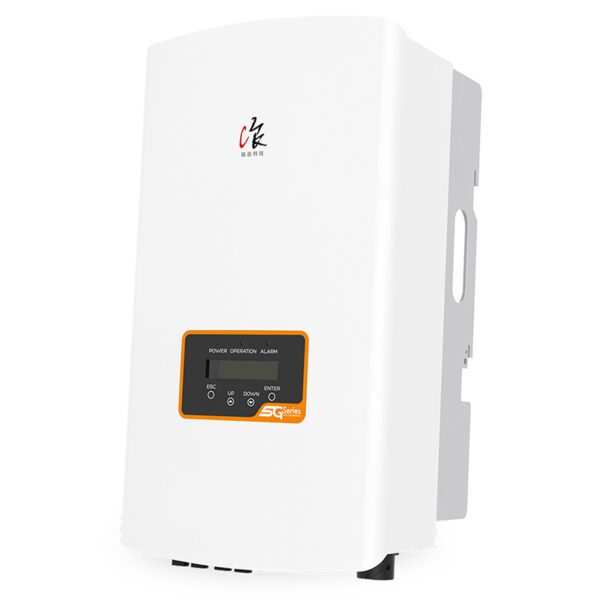

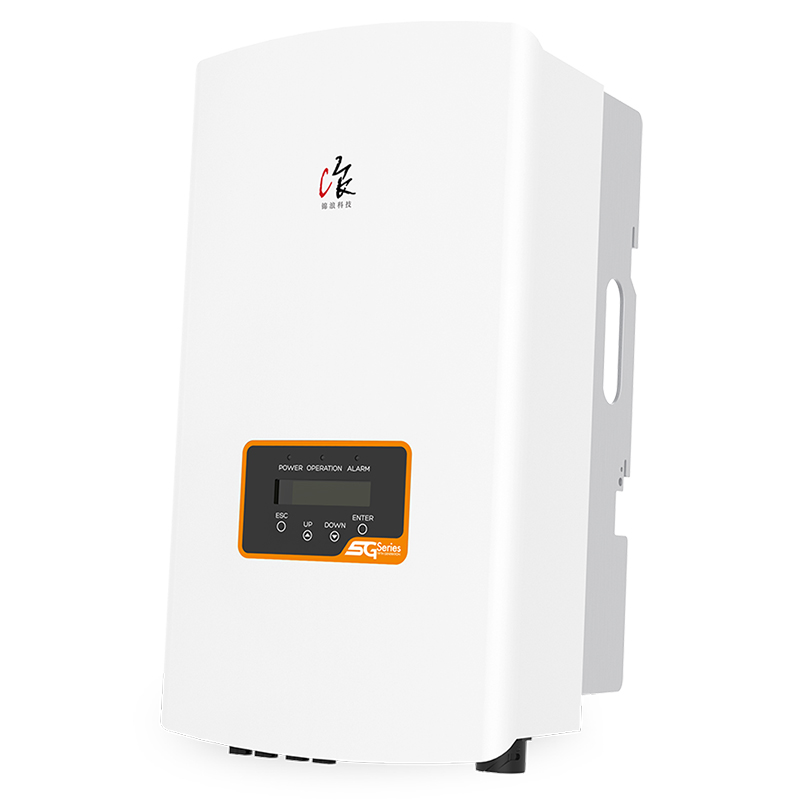

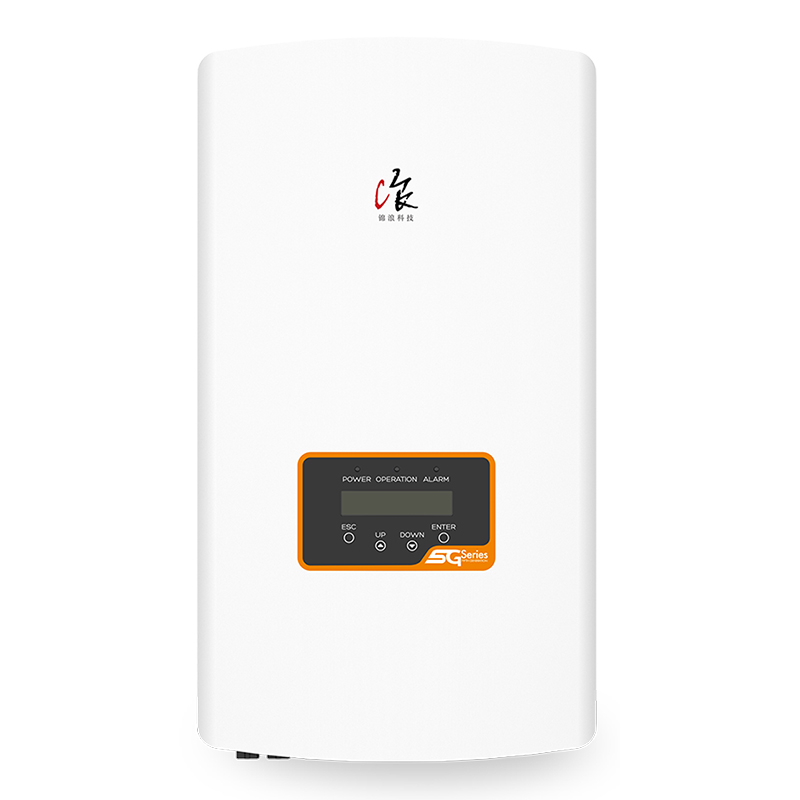

Jinlang Photovoltaic Power Generation Inverter Household 5-25KW Three-phase Grid-connected Inverter Solar Inverter GCI-3P(5-25)K-5G-PLUS


Maximum efficiency 98.7%
Ultra-low starting voltage, ultra-wide voltage range
Support RS485, Wi-Fi, GPRS multiple communication methods
AFCI protection, effectively reducing the risk of fire on the DC side (optional
IP66
Support more than 150% DC side over-provisioning
string maximum current 18/16A
Support anti-backflow function
One-click scan code to access Jinlang cloud, support remote upgrade and settings
Automatic voltage stabilization technology, self-adaptive to complex power grids
Small and light, easy to install and maintain
Support high-power component access, low system installation and cable costs

$925.00

Compare

Ginlong GCI-3P(5-25)K-5G-PLUS three-phase string inverter is a new generation of Ginlong 5G series inverter, which is specially designed for residential photovoltaic and small industrial and commercial applications. Small size, high efficiency, with multiple protection functions, reliable and safe, intelligent and stable, with multiple models.

The single-string input current is increased to 18A, and the voltage is increased to 1100V. It is fully compatible with various high-efficiency components and double-sided components, and optimizes system design to increase revenue. The protection level is upgraded to IP66, and the inverter has stronger environmental adaptability.

The algorithm is further optimized, the weak grid has strong support, and the grid connection is more stable.

GCI-3P5K-5G-PLUS
DC input
Recommended maximum input power: 6kW
Rated input voltage: 600V
MPPT voltage range: 160-1000V
Maximum input short circuit current: 25A/25A
Maximum input voltage: 1100V
Starting voltage: 180V
Maximum input current: 18A/16A
Number of MPPTs/Maximum number of input strings: 2/2
AC output
Rated output power: 5kW
active power 5.5kW
Rated grid frequency 50Hz
Maximum output current: 8.4A
Total current harmonic dark change rate: <2%
Maximum apparent power: 5.5kVA
Rated power grid voltage: 3/N/PE, 220/380V
Rated grid output current: 7.6A
Power factor: >0.99 (0.8 lead ….0.8 lag)
efficiency
Maximum efficiency: 98.30%
european efficiency 97.70%
Protect
DC reverse polarity protection: have
AC output overcurrent protection: have
Grid Monitoring: have
Temperature protection: have
Integrated AFCI (DC Fault Protection): optional
AC short circuit protection: have
Surge protection: have
Island Protection: have
Integrated DC switch: have
Basic parameters
Dimensions (width, height and depth): 310*563*219mm
Topology: Transformerless
Working environment humidity: 0-10096
Protection class: IP66
Maximum working altitude: 4000m
Safety/EMC standard: IEC 62109-1/-2 EC 61000-6-1/-2/-3/-4 NBT 32004
weight: 17.8kg
Self-consumption at night: <1W
Working temperature: -25~+60°C

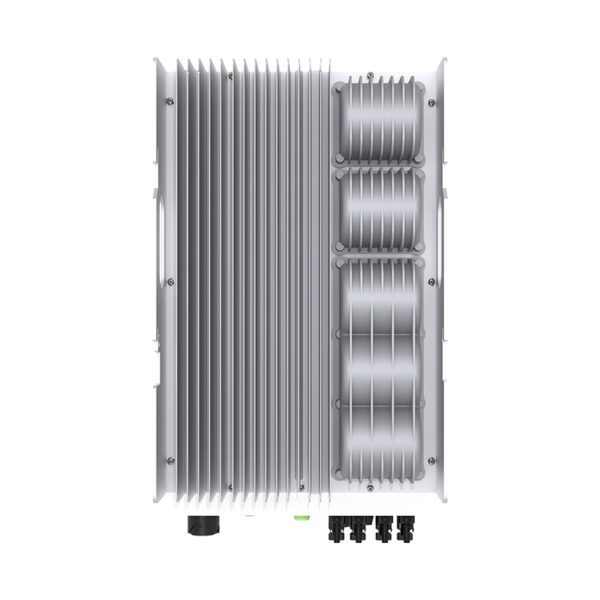

cooling method: natural cooling
Grid-connected standard: NB/T 32004

Maximum efficiency 98.7%
Ultra-low starting voltage, ultra-wide voltage range
Support RS485, Wi-Fi, GPRS multiple communication methods
AFCI protection, effectively reducing the risk of fire on the DC side (optional
IP66
Support more than 150% DC side over-provisioning
string maximum current 18/16A
Support anti-backflow function
One-click scan code to access Jinlang cloud, support remote upgrade and settings
Automatic voltage stabilization technology, self-adaptive to complex power grids
Small and light, easy to install and maintain
Support high-power component access, low system installation and cable costs
