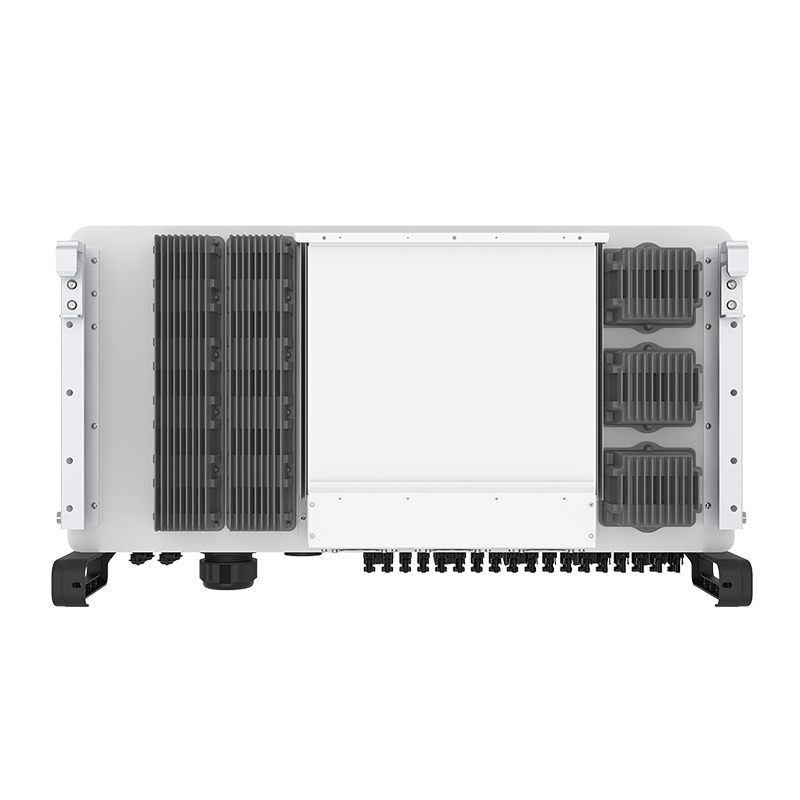

Jinlang inverter 110KW industrial and commercial solar power inverter 80-110kW three-phase string inverter

Add to wishlist
Compare

Maximum efficiency 98.8%
9/10-way MPPT design, supporting more than 150% DC side over-provisioning
Support for nighttime SVG functionality
The whole machine has P66 protection level, strong environmental adaptability
AFCI protection, effectively reducing the risk of fire on the DC side (optional
PID fix to improve module performance (optional)
Support aluminum wire access, save the cost of AC cables
The maximum current of a single string is 13A, perfectly matching double-sided modules
One-key scan code access monitoring platform, support remote upgrade
String-level monitoring, intelligent I-V curve scanning
100%6 of key components are selected from world-renowned brands
One-click scan code to access Jinlang cloud, support remote upgrade
Supports DC “Y” connection
Support PLC communication mode, reduce communication cable and construction cost

$3,397.00

Compare

Ginlong’s new three-phase string inverter is the first choice for industrial and commercial photovoltaics. 9/10-way MPPT, reduce the impact of string mismatch; support 13A current input, 1.5 times DC over-distribution, high-efficiency control algorithm, the highest efficiency is 98.8%, which greatly improves the power station revenue.

GCI-110K-BHV-5G
DC input
Maximum input voltage: 1100V
Starting voltage: 195V
Maximum input current: 10*27A
Number of MPPTs: 10
Rated voltage: 720V
MppT voltage range: 180-1000V
Maximum input short circuit current: 10*40A
Maximum number of input strings: 20
AC output
Rated output power: 110 kW
Maximum active power: 121 kW
Rated grid frequency: 50Hz
Maximum output current: 129.4A
Total current harmonic distortion: ＜ 3%
Maximum Apparent Power: 121 kVA
Rated grid voltage: 3/PE, 540V
Rated grid output current: 117.6A
Power factor: >0.99 (0.8 lead….0.8 lag)
efficiency
Maximum efficiency: 98.80%
China efficiency: 98.20%
Protect
DC reverse polarity protection: have
AC output overcurrent protection: have
Grid monitoring: have
String monitoring: have
PID fixes: optional
Integrated AFCI (DC Arc Fault Protection): optional
AC short circuit protection: have
Surge protection: DC secondary/ AC secondary
Island Protection: have
I/V Curve Sweep: have
Integrated DC switch: have
Basic
Dimensions (W*H*D): 1014*567*314.5mm
weight: 82kg
parameters
Topology: Transformerless
Working environment humidity: 0-100%
Protection class: IP66
Maximum working altitude: 4000m
Safety/EMC standard: IEC 62109-1/-2, IEC 61000-6-2/-4, NB/T 32004
weight: 82kg
Self-consumption at night: <2W
Working temperature: -30 ~+60℃
cooling method: Smart Redundant Air Cooling
Grid-connected standard: NB/T32004

Maximum efficiency 98.8%
9/10-way MPPT design, supporting more than 150% DC side over-provisioning
Support for nighttime SVG functionality
The whole machine has P66 protection level, strong environmental adaptability
AFCI protection, effectively reducing the risk of fire on the DC side (optional
PID fix to improve module performance (optional)
Support aluminum wire access, save the cost of AC cables
The maximum current of a single string is 13A, perfectly matching double-sided modules
One-key scan code access monitoring platform, support remote upgrade
String-level monitoring, intelligent I-V curve scanning
100%6 of key components are selected from world-renowned brands
One-click scan code to access Jinlang cloud, support remote upgrade
Supports DC “Y” connection
Support PLC communication mode, reduce communication cable and construction cost
