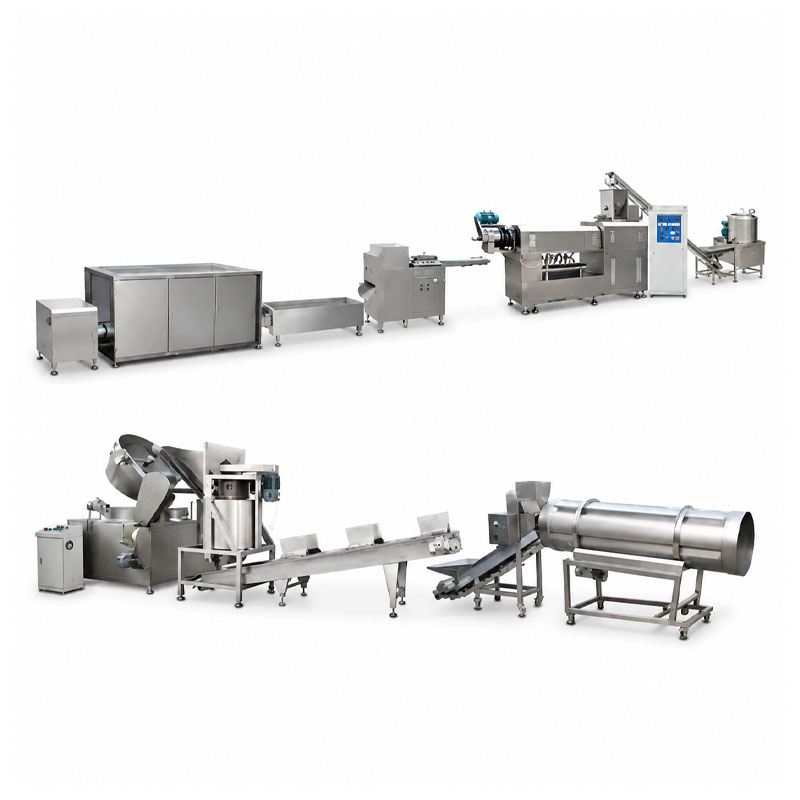

Industrial Snack Pellet Processing Line for Food Production

Snack Pellet Processing Line Product Introduction

The Snack Pellet Processing Line is a complete solution for producing half-pellet snacks, crispy chips and ready-to-fry snack products. The production process starts with raw material mixing and moisture adjustment, followed by extrusion cooking where materials are kneaded and cooked through pressure and friction heat.

The single screw extrusion system provides stable forming performance with different screw configurations suitable for various flour and starch ingredients. Customized dies allow manufacturers to create different shapes, sizes and thicknesses, including tube snacks, chips and other creative designs.

After forming and cutting, the semi-finished pellets are processed through cooling and low-temperature drying to achieve suitable moisture content for further frying or roasting. The integrated production line combines feeding, extrusion, shaping, drying and conveying systems to improve efficiency while maintaining product consistency. It is suitable for snack manufacturers looking to develop diversified crispy snack products.

Working Principle

The production process begins with mixing flour, starch and other ingredients with proper moisture content. The prepared material is transported into the single screw extruder, where it is kneaded and cooked through mechanical pressure and friction heat generated between the screw and barrel.

The cooked dough is pushed through customized dies to create continuous sheets, tubes or other shapes. After cooling, the formed material is cut into individual snack pellets using different cutting systems according to product requirements. The semi-finished pellets then enter the low-temperature drying process to reduce moisture and improve stability. The dried pellets can be further fried or roasted to achieve crispy texture and final snack characteristics.

System Structure

1. Mixer

Blends raw materials and water evenly to prepare a consistent mixture before extrusion.

2. Screw Conveyor

Transfers mixed materials continuously into the extrusion system for stable feeding.

3. Single Screw Extruder

Cooks, kneads and shapes materials through controlled pressure and temperature conditions.

4. Cooling Conveyor

Reduces product temperature after extrusion and prepares materials for cutting.

5. Pulling Cutting Machine / Chip Cutting Machine

Cuts formed snack sheets into different shapes according to final product requirements.

6. Vibrating Cooling Conveyor

Separates products and improves cooling efficiency during transportation.

7. Hoister

Transfers products between different processing sections to maintain continuous production flow.

8. Low Temperature Drying Machine

Removes moisture gently to maintain product structure and prepare pellets for frying.

9. Cooling Conveyor

Cools dried products before storage or further processing.

Technical Parameters

Main Features

Single Screw Extrusion Technology

The extrusion system provides continuous kneading, cooking and forming performance for stable snack production.

Flexible Die Selection

Different dies can be installed to produce various snack shapes, sizes and thicknesses.

Adjustable Cutting System

Optional pulling cutting or chip cutting systems allow production of different snack styles.

Efficient Material Processing

The system combines mixing, conveying and extrusion processes to improve production efficiency.

Controlled Drying Process

Low-temperature drying reduces moisture while maintaining product structure and quality.

Wide Raw Material Compatibility

Suitable for processing different flour and starch-based ingredients.

Continuous Production Operation

Integrated conveyors and processing units support smooth and efficient production.

Consistent Product Quality

Precise processing control helps maintain uniform shape, texture and moisture content.

Applications

1. Half Pellet Snack Production

Used for producing semi-finished snack pellets that expand after frying or roasting.

2. Crispy Chip Manufacturing

Suitable for making different chip-style snacks with customized thickness and shapes.

3. Tube Snack Production

Produces long or tubular snack products through specialized extrusion dies and cutting systems.

4. Potato Chip Style Snack Processing

Can create various chip shapes and textures for fried snack applications.

5. Starch-Based Snack Manufacturing

Processes flour and starch ingredients into stable snack structures.

6. Ready-to-Fry Snack Production

Creates dried snack pellets that can be stored and fried before final consumption.

7. Customized Snack Development

Allows manufacturers to develop unique snack designs with different dies and cutting methods.

Advantages

• suitable for various flour and starch materials
• produces multiple snack shapes with one system
• supports frying and roasting applications
• improves production efficiency through automation
• provides stable extrusion and forming performance
• reduces manual operation requirements
• allows flexible product customization
• ensures consistent snack quality

FAQ

1. What products can this snack pellet production line make?

The line can produce half pellets, crispy chips, tube snacks and other ready-to-fry snack products.

2. What raw materials can be used?

It can process wheat flour, corn flour, starch and other suitable flour-based ingredients.

3. How does the extruder cook the material?

The extruder cooks materials through mechanical pressure and friction heat generated during screw operation.

4. Can different snack shapes be produced?

Yes. Different dies and cutting systems can create various shapes, sizes and thicknesses.

5. What is the purpose of low-temperature drying?

The drying process reduces moisture content and improves storage stability before frying or roasting.

6. Can the production line make long snack products?

Yes. Optional pulling cutting systems can produce longer snack shapes such as tube products.

7. Is the production process continuous?

Yes. The integrated conveyor and processing system enables continuous automatic operation.

8. Can the equipment be customized?

Yes. The configuration can be adjusted according to product type, capacity requirements and processing needs.
