Industrial Popcorn Production Line for Snack Food Processing

Popcorn Production Line Product Introduction

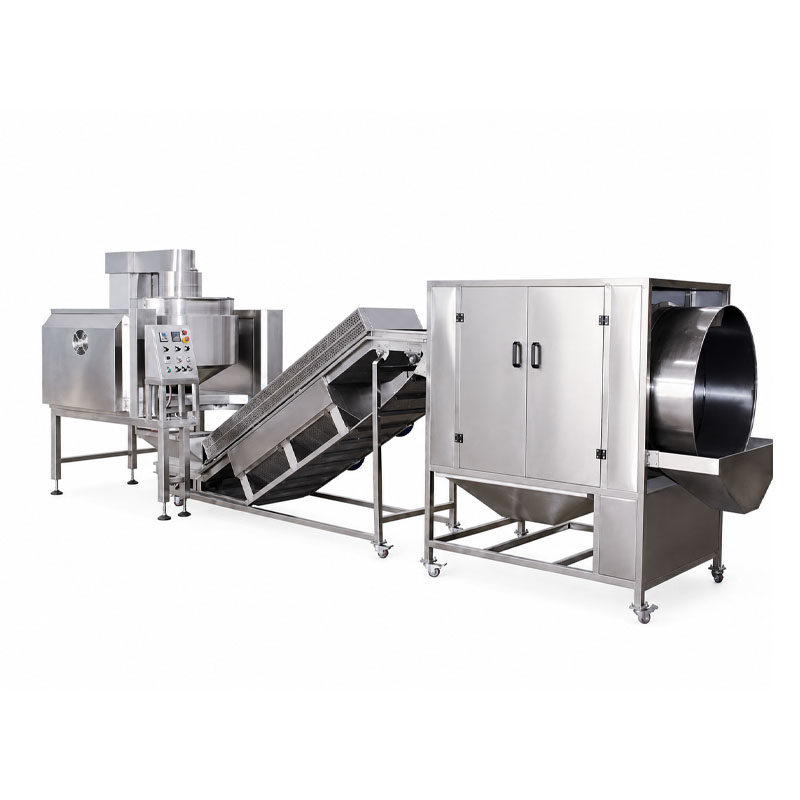

The industrial popcorn production line provides a solution for converting corn kernels into ready-to-season popcorn with consistent appearance, texture, and quality. The process combines an automatic popcorn making machine, forced-air cooling conveyor, and rotary drum screening system to streamline production from popping through final separation. Electromagnetic heating enables responsive temperature control and efficient heat utilization, while automatic mixing and discharge help maintain repeatable conditions and reduce operator workload.

After popping, the product is transferred onto a perforated stainless steel conveyor, where airflow removes excess heat and prepares the popcorn for downstream handling. It then enters the rotary screening section, which moves the product through a spiral path while separating unpopped kernels, bran, crumbs, and other small residues. Recipes can be adjusted for plain, caramel, chocolate, fruit, coconut, and other flavored popcorn. Different popcorn shapes, including mushroom and butterfly-style products, can also be accommodated depending on raw material and processing requirements.

How the Popcorn Production Line Works

The production process is designed to connect popping, cooling, conveying, and screening in a continuous workflow.

Corn Feeding → Automatic Popping → Controlled Mixing → Automatic Discharge → Air Cooling → Conveying → Rotary Screening → Finished Popcorn

Corn kernels and recipe ingredients are introduced into the cooking system, where controlled heating and continuous mixing promote uniform popping and coating. Once the preset processing conditions are reached, the popcorn is automatically discharged onto the cooling conveyor.

High-volume airflow passes through the perforated conveyor surface to remove heat while the product moves toward the screening section. The rotary drum then separates unpopped kernels, small particles, and loose residues, producing cleaner popcorn for seasoning, weighing, or packaging.

Main Equipment of the Popcorn Processing Line

Automatic Popcorn Making Machine

The popcorn making machine performs the main cooking and popping process. Electromagnetic heating provides fast and controllable heat transfer, while automatic temperature regulation helps maintain stable production conditions.

Automatic stirring keeps kernels and ingredients moving during processing, helping improve heat distribution and reduce uneven cooking. Automatic discharge transfers each finished batch to the next processing stage with less manual handling.

Main Features:

• Electromagnetic heating system
• Automatic temperature control
• Automatic mixing and stirring
• Automatic product discharge
• Approximate output of 240–300 kg/h
• Stainless steel food-contact construction
• Suitable for different popcorn recipes and flavors

Popcorn Cooling Conveyor

Freshly popped popcorn leaves the cooking section at a relatively high temperature. The cooling conveyor provides simultaneous product transportation and rapid heat removal before screening or further processing.

Airflow generated beneath the conveyor passes through the perforated stainless steel belt, increasing contact between cooling air and the popcorn. Adjustable conveying speed allows the residence time to be adapted to different operating conditions.

Main Features:

• Forced-air cooling design
• Perforated stainless steel conveyor belt
• Adjustable conveying speed
• Continuous transfer between processing stages
• Helps prevent heat accumulation after popping
• Suitable for integration with downstream screening equipment

Rotary Drum Screening Machine

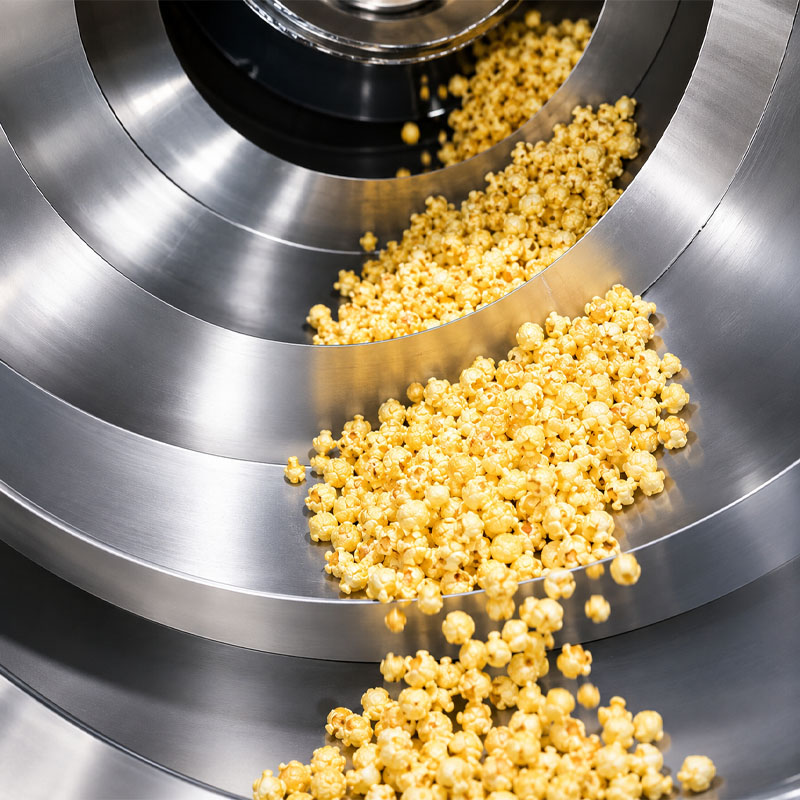

The rotary screening machine provides the final separation stage after cooling. As popcorn travels through the rotating drum, its internal spiral structure continuously moves the product toward the discharge outlet.

The perforated screening surface allows small residues, broken particles, bran, and unpopped kernels to be separated from acceptable popcorn. This helps improve product cleanliness and prepares the popcorn for subsequent seasoning or packaging.

Main Features:

• Continuous rotary screening
• Spiral product conveying structure
• Separation of small residues and unpopped kernels
• Gentle handling of finished popcorn
• Stable belt-driven operation
• Stainless steel processing structure

Technical Parameters

Key Features and Advantages

Automated Popcorn Processing

Automatic temperature control, mixing, discharge, conveying, and screening reduce repetitive manual operations and support more consistent production.

Efficient Electromagnetic Heating

Electromagnetic heating delivers responsive temperature control and efficient energy transfer, helping operators manage different popcorn recipes more accurately.

Rapid Product Cooling

Forced airflow quickly removes heat from freshly popped popcorn, making the product easier to handle and preparing it for screening, seasoning, or packaging.

Cleaner Finished Product

Rotary screening separates unwanted small particles and unpopped kernels from finished popcorn, improving product uniformity before downstream processing.

Flexible Recipe Production

The system can process different popcorn recipes, including original, sweet, caramel, chocolate, coconut, and fruit-flavored products. Formulations can be adjusted according to market requirements.

Reduced Manual Handling

Connected processing stages allow popcorn to move from cooking to cooling and screening with fewer manual transfers, helping improve workflow efficiency.

Food-Grade Stainless Steel Structure

Major product-contact areas use stainless steel for hygienic operation, convenient cleaning, and durability in commercial food processing environments.

Applications

The automatic popcorn processing line is suitable for commercial and industrial snack production environments where consistent output and continuous material handling are required.

Snack food manufacturers: For producing packaged popcorn in multiple flavors for retail and wholesale markets.

Popcorn processing factories: Suitable for centralized production where popping, cooling, and screening need to be integrated into one workflow.

Confectionery manufacturers: Can be used for caramel-coated, chocolate-coated, and other sweet popcorn products.

Private-label snack producers: Supports flexible recipe changes for manufacturing popcorn under different customer specifications.

Central food processing facilities: Suitable for standardized production and distribution to cinemas, entertainment venues, supermarkets, and food-service businesses.

Frequently Asked Questions

1. What is the capacity of the popcorn production line?

The popcorn making machine can process approximately 240–300 kg per hour, depending on the recipe and operating conditions.

2. What types of popcorn can this line produce?

It can produce original, caramel, chocolate, cheese, fruit-flavored, and other flavored popcorn products.

3. What heating method does the machine use?

The popcorn making machine uses electromagnetic heating for efficient and controlled cooking.

4. Is the popcorn production process automatic?

Yes. The line supports automatic heating, stirring, discharging, cooling, conveying, and screening.

5. What does the cooling conveyor do?

It quickly cools freshly popped popcorn while continuously transferring it to the screening section.

6. Why is rotary screening necessary?

It helps remove unpopped kernels, crumbs, and small residues for a cleaner finished product.

7. Can the production line be customized?

Yes. Capacity, voltage, conveyor size, and equipment configuration can be customized to production requirements.

8. Can seasoning and packaging equipment be added?

Yes. Seasoning, coating, weighing, and packaging machines can be integrated for a more complete production line.
