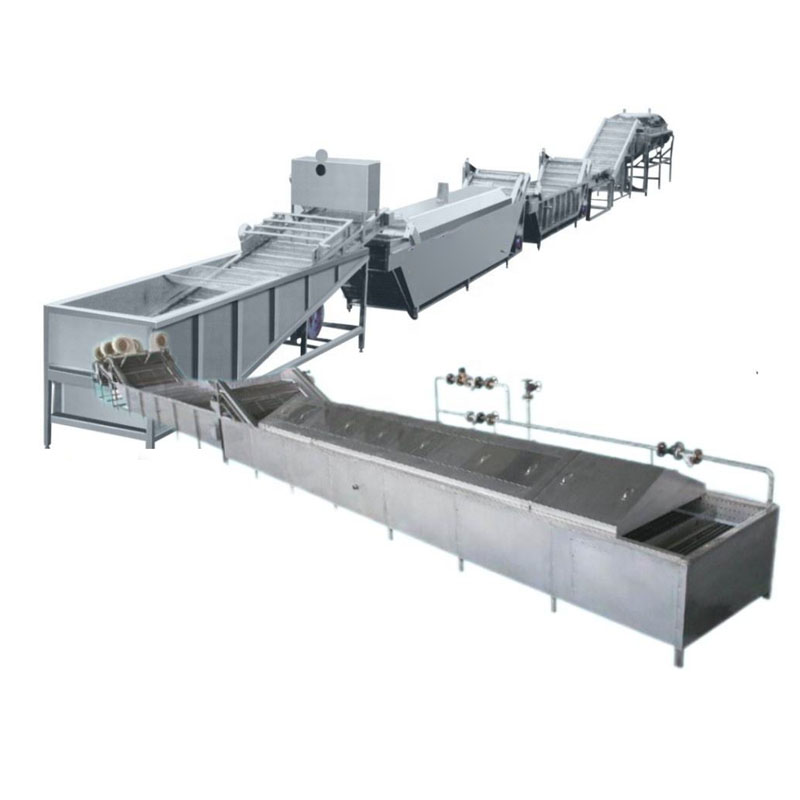

Industrial Gherkin Cucumber Canning Processing Line System

Working principle

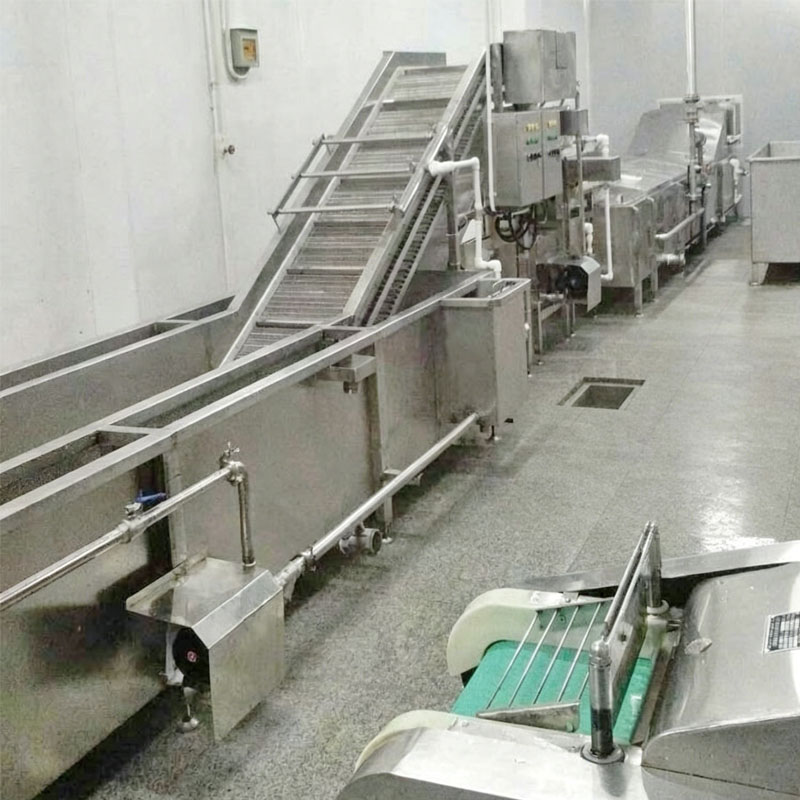

Step 1: Raw cucumbers enter selection conveyor for grading and defect removal
Step 2: Bubble washing machine cleans soil and impurities from vegetables
Step 3: Cutting machine slices cucumbers with uniform size control
Step 4: Seasoning machine mixes cucumbers with brine and flavor solution
Step 5: Filling system transfers product into jars, cans, or bags
Step 6: Exhausting machine removes air from sealed containers
Step 7: Continuous sterilization ensures microbial safety
Step 8: Cooling system rapidly lowers product temperature
Step 9: Packaging system labels and prepares final products

Product Parameter Table

Name	Technical parameter
Z type elevator	Equipment material: food grade stainless steel Material lifting
Shaker	Vibration and impurity removal before soaking and cleaning of raw materials
Cucumber soaking washing machine	Equipment material: food grade stainless steel Equipment size: 1500*6000 mm Soak, Bubble, Lift
Manual selecting platform	Manual selecting
Continuous pre-cooker	Equipment material: food grade stainless steel Equipment size: 1500*8000 mm Cucumbers are greened, temperature controlled
Continuous cooler	Equipment material: food grade stainless steel Equipment size: 1500*5000 mm Rapid cooling after pre-cooking to maintain product appearance
Z type elevator	Equipment material: food grade stainless steel Material lifting
Vibration filling machine	Filling range: 330-900 g/bottle Filling speed: 80-120 bottles/min (the capacity of the machine will vary according to the size of the cucumber and the size of the bottle) Manual feeding is required after filling Equipment material: food grade stainless steel Feed height: 1760 mm
Automatic soup adding machine	Equipment material: food grade stainless steel soup added
Capping machine	Cap, screw cap, 5000-6000 bottles/hour Power: 2.04 kW Steam demand: more than 180 kg/h Dimensions: 3450*1040*2150 mm
Bottles washing machine	Dimensions: 4200*1500*1800 mm Power: 5.35 kW Capacity: 120 bottles/min Applicable bottle diameter: 40-180 mm Suitable bottle height: 60-300 mm Rinse method: two-stage cleaning (unlimited bottle type
Pasteurizer	Fully automatic control Equipment material: 304 stainless steel for the whole machine Automatic temperature control system Equipment size: effective width 2000 mm/length 25000 mm Insulation on three sides
Air knife blowing water	Used to blow-dry the water on the surface of the jar
Bottles palletizer	Standard machine (universal) Tray size: 1m*1.2m Jar shape: Universal glass bottle Production speed: 1-1.5 layers/minute Equipment size: length 6600mm width: 2300mm Equipment power: 7.5kw Air source consumption: 0.6MPa

Comparison Module

Conclusion: Automated system significantly improves efficiency, hygiene, and profitability.

Main Features

• Fully automated cucumber washing, cutting, and grading system
• Continuous seasoning and flavoring processing unit
• High-efficiency bubble washing and impurity removal system
• Adjustable cutting and slicing control system
• Vacuum exhausting and sealing system for food safety
• Continuous sterilization and cooling system for shelf life extension
• Stainless steel food-grade construction for hygiene compliance
• Modular design suitable for different production capacities

Application Scenarios

• For cucumber processing factories → uneven raw material → achieve uniform pickled cucumber products
• For pickle manufacturers → unstable flavor consistency → ensure standardized seasoning control
• For vegetable processing plants → low efficiency → enable continuous automated production
• For export food suppliers → hygiene compliance issues → meet international food safety standards
• For seasonal vegetable supply → raw material waste → convert into value-added canned products
• For large food factories → high labor cost → reduce manpower dependency

Why Choose This System

• Complete turnkey pickle production solution from raw material to finished product
• Stable continuous processing improves production efficiency
• Precise seasoning system ensures consistent product taste
• Food-grade stainless steel ensures hygiene and durability
• Flexible configuration for different vegetable types
• Advanced sterilization ensures long shelf life
• Suitable for industrial-scale food factories

FAQ

1. What is a gherkin cucumber canning processing line system used for?
It is used for industrial production of pickled cucumber and canned vegetable products.

2. How does a cucumber canning processing line work step by step?
It processes cucumbers through washing, cutting, seasoning, filling, sealing, and sterilization.

3. What equipment is included in cucumber pickling production line?
It includes washing machine, cutting machine, seasoning system, filling and sterilization equipment.

4. How is seasoning controlled in cucumber processing line system?
Seasoning machine ensures uniform mixing of brine and flavor ingredients.

5. How is shelf life extended in pickled cucumber production?
Through vacuum exhausting, sealing, and continuous sterilization systems.

6. Can this system process different types of pickled vegetables?
Yes, it supports cucumbers, cabbage, and other pickled vegetable products.

7. What is the production capacity of cucumber processing line system?
Capacity varies from small factories to large industrial production plants.

8. How to choose a cucumber canning processing line manufacturer?
Evaluate automation level, equipment quality, capacity range, and after-sales support.
