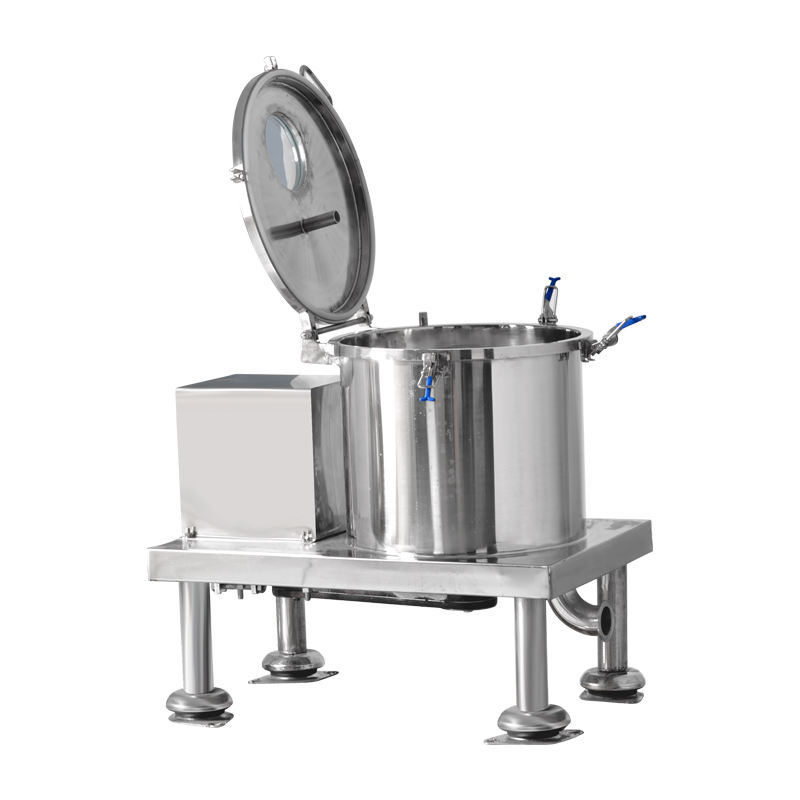

Industrial Centrifugal Extractor For Liquid Liquid Separation

Industrial Centrifugal Product Introduction

The industrial centrifugal extractor is a high-efficiency separation machine used for liquid-liquid extraction and phase separation in industrial processes. The equipment utilizes centrifugal force to accelerate the separation of two immiscible liquids, significantly improving separation speed and efficiency compared with traditional gravity separation methods.

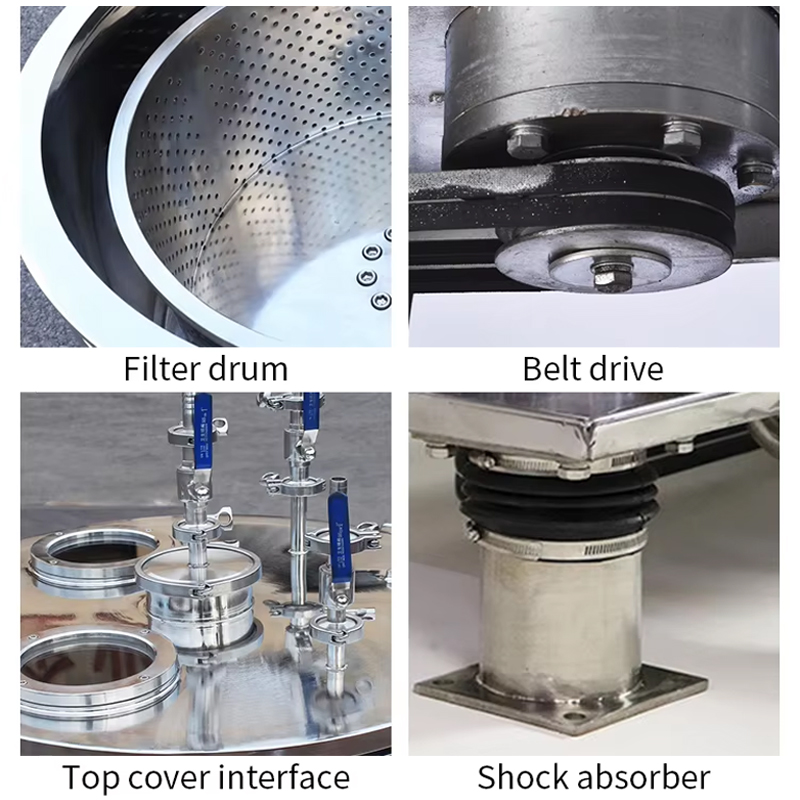

The extractor consists of a rotating drum, drive system, feed inlet, and discharge outlets. During operation, the mixed liquid enters the rotating drum where centrifugal force is generated through high-speed rotation. Due to density differences, the heavier liquid phase moves outward toward the drum wall while the lighter phase moves toward the center.Both liquid phases are discharged through separate outlets, allowing continuous separation during operation. This technology greatly improves mass transfer efficiency and reduces processing time.

The centrifugal extractor is widely used in chemical extraction, pharmaceutical production, metal ion extraction, and solvent recovery systems. It provides stable performance, high separation efficiency, and reliable operation in continuous industrial processes.

Technical Specifications

Parameter	Value
Speed	1200 RPM
Speed	780r /min
Motor	4KW
Material	Stainless steel
Rotational speed	1200 rpm
Separation factor	240 W/g
Motor power	1.5 kW

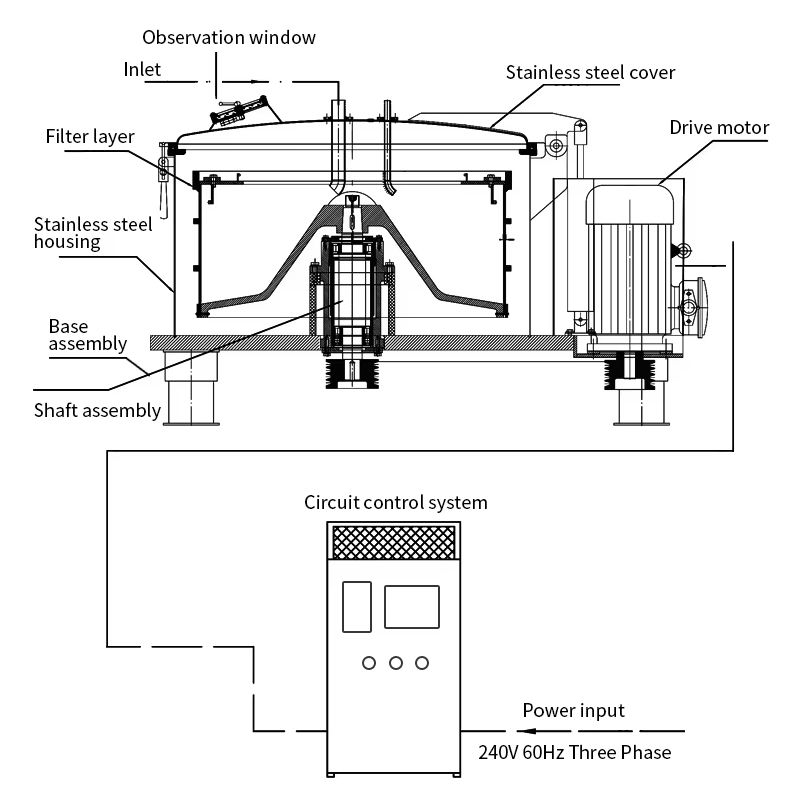

Working Principle

The centrifugal extractor operates based on centrifugal force and liquid density differences.When the mixed liquids enter the rotating drum, the drum spins at high speed to generate strong centrifugal force. This force causes the heavier liquid phase to move outward toward the drum wall while the lighter liquid phase moves toward the center.

Inside the extraction chamber, the liquids are mixed and separated simultaneously, allowing rapid mass transfer and phase separation. The separated liquid phases are continuously discharged through separate outlets.

Compared with gravity settling, centrifugal extraction greatly shortens separation time and improves extraction efficiency.

Key Features

• High-speed centrifugal separation technology allows rapid liquid-liquid extraction and phase separation.
• Continuous operation improves production efficiency and reduces processing time.
• Stainless steel construction provides excellent corrosion resistance for chemical processing environments.
• Compact design reduces installation space and allows easy integration into production lines.
• High extraction efficiency improves product purity and reduces solvent consumption.
• Automatic control system allows easy monitoring and stable operation.

Applications

The industrial centrifugal extractor is widely used in industries that require liquid-liquid separation and extraction processes.
Typical applications include:

• chemical solvent extraction
• pharmaceutical intermediate extraction
• metal ion extraction in hydrometallurgy
• solvent recovery systems
• wastewater treatment and organic solvent separation
• petrochemical extraction processes

By accelerating phase separation, the centrifugal extractor improves extraction efficiency and enhances industrial production performance.

Why Choose Our Centrifugal Extractor

• Advanced centrifugal extraction technology ensures efficient liquid-liquid separation and stable operation.
• High-quality stainless steel materials provide strong corrosion resistance and long service life.
• Optimized internal structure improves mixing and separation efficiency.
• Automatic control system allows precise monitoring of operating parameters.
• Customizable design allows the extractor to meet different industrial process requirements.

FAQ

• What liquids can this extractor process?
  The extractor is suitable for separating immiscible liquid phases such as organic solvents and aqueous solutions.
• Is continuous operation possible?
  Yes, the centrifugal extractor is designed for continuous industrial operation.
• What industries use centrifugal extraction?
  The machine is commonly used in chemical, pharmaceutical, metallurgical, and environmental industries.
• Can the equipment be customized?
  Yes, the equipment can be customized according to different separation capacities and process requirements.
