Solar Inverter Datasheet
|
SPH3000
|
SPH3600
|
SPH4000
|
SPH4600
|
SPH5000
|
SPH6000
|
DC input data
|
||||||
Max. recommended PV power
|
6600W
|
6600W
|
6600W
|
8000W
|
8000W
|
8000W
|
Start voltage
|
150V
|
|||||
Max. PV voltage
|
550V
|
|||||
PV voltage range
|
120V-550V
|
|||||
MPPT voltage range
/nominal voltage |
150V-550V /360V
|
|||||
Max. input current of tracker A/B
|
12A/12A
|
|||||
Number of MPP trackers / strings per MPP tracker
|
2/1
|
|||||
AC Output
|
||||||
Rated AC output power
|
3000W
|
3680W
|
4000W
|
4600W
|
4999W
|
6000W
|
Max. AC apparent power
|
3000VA
|
3680VA
|
4000VA
|
4600VA
|
5000VA
|
6000VA
|
Max. output current
|
16A
|
16A
|
22A
|
22A
|
22A
|
27A
|
Nominal AC output voltage
|
230V
|
|||||
Nominal grid frequency
|
50/60Hz
|
|||||
Power factor at rated power
|
1
|
|||||
THDI
|
<3%
|
|||||
AC output power(Backup)
|
||||||
Max. output power
|
3000W
|
|||||
Rated AC output voltage
|
230Vac
|
|||||
Rated AC output frequency
|
50/60Hz
|
|||||
Automatic switchover time
|
<0.5S
|
|||||
Battery data
|
||||||
Battery voltage range
|
42~59V
|
|||||
Max. charging voltage
|
58V
|
|||||
Max charging and discharging
current |
66A
|
|||||
Max charging and discharging
power |
3000W
|
|||||
Battery type
|
lithium /Lead-acid
|
|||||
Deep of discharging
|
80%DOD/50%DOD
|
|||||
Capacity of battery
|
3~12kWh
|
|||||
Efficiency
|
||||||
Max. efficiency
|
97.5%
|
97.5%
|
97.5%
|
97.6%
|
97.6%
|
97.7%
|
Euro European efficiency
|
97.0%
|
97.0%
|
97.0%
|
97.1%
|
97.1%
|
97.1%
|
MPPT efficiency
|
99.5%
|
|||||
Protection devices
|
||||||
DC switch
|
yes
|
|||||
DC reverse polarity protection
|
yes
|
|||||
Battery reverse protection
|
yes
|
|||||
Output over current protection
|
yes
|
|||||
Output over voltage protection
|
yes
|
|||||
Ground fault monitoring
|
yes
|
|||||
Grid monitoring
|
yes
|
|||||
Integrated all – pole sensitive
leakage |
yes
|
Growatt Solar Inverter

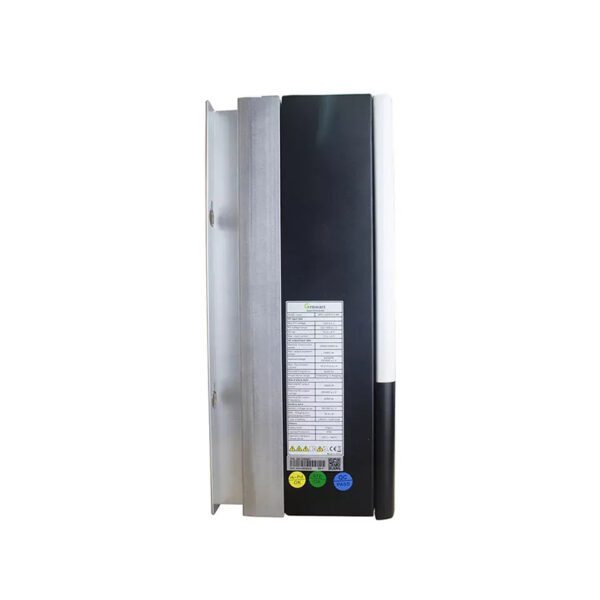

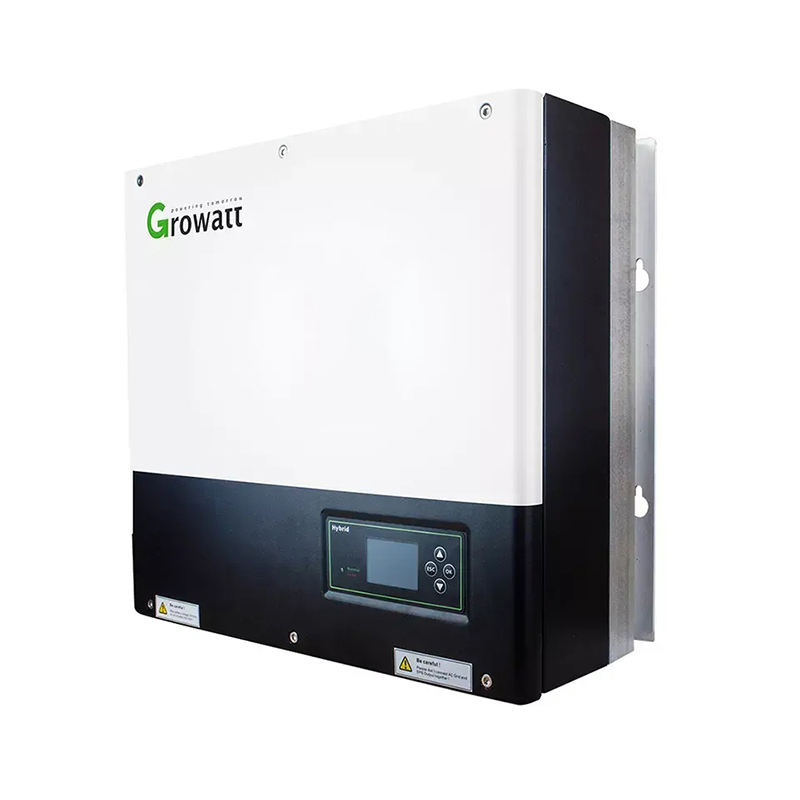

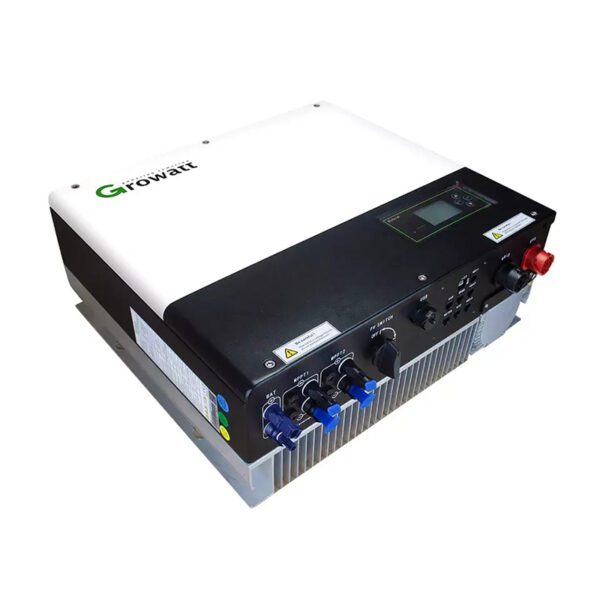

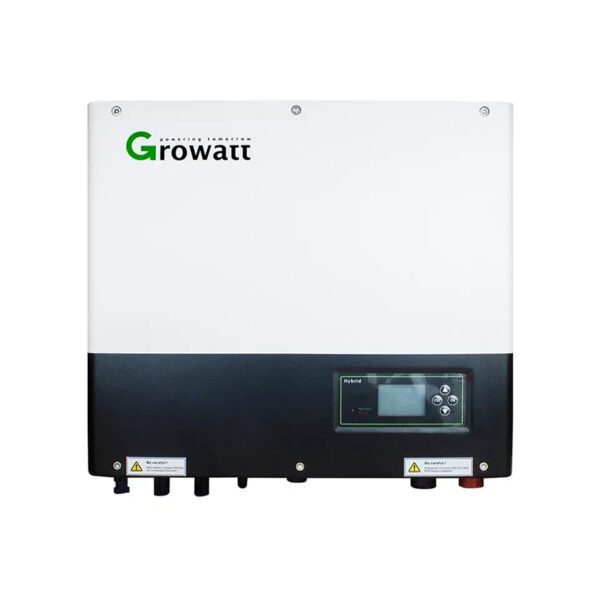

Hot Selling Growatt Inverter SPH 6000TL BL-UP 6kW Single Phase Solar Inverter Hybrid Solar Energy Storage Inverter
HYBRID INVERTER SPH3000-6000
. Dual MPP trackers
. IP65 & Natural cooling
. Programmable working modes
. Supports Export Control
. Online Smart Service
$1,500.00
