Heating Element 279838 Dryer Heating Element Kit with Thermostat Thermal Fuse and Cord Replacement

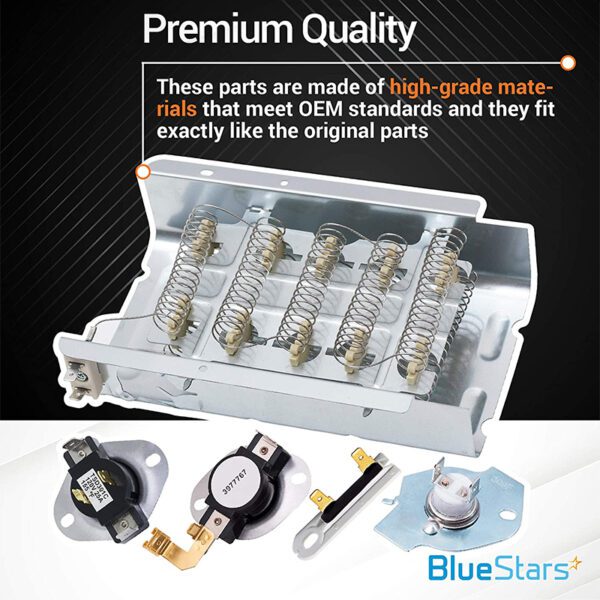

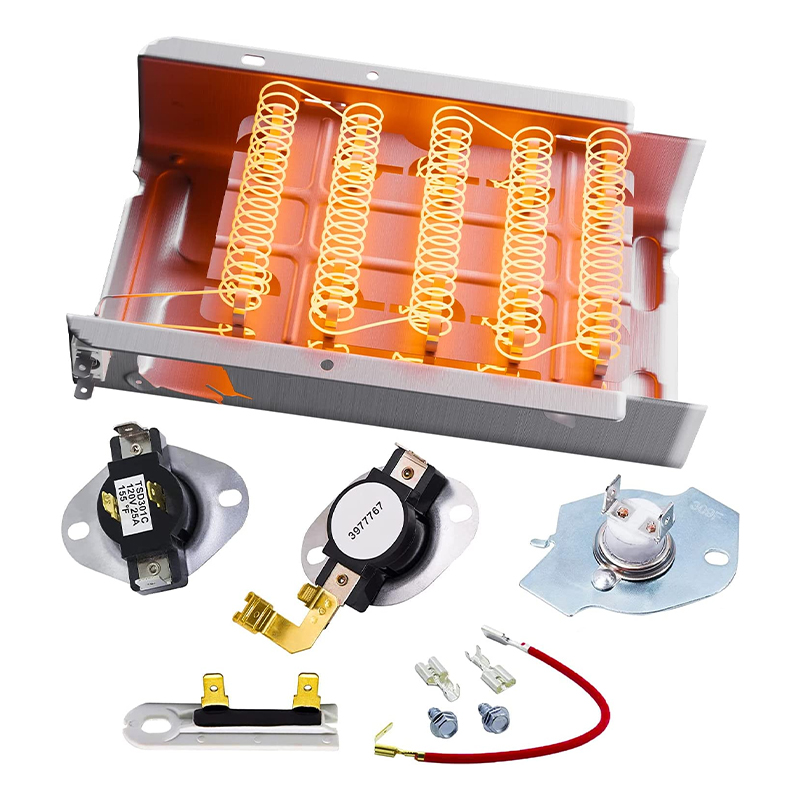

  • ✅ BRING THE HEAT BACK: This kit includes a 279838 Dryer Heating Element, a 3392519 Thermal Fuse, a 3977393 Thermal Cut-off Fuse, a 3387134 Cycling Thermostat & a 3977767 Thermostat with Screws. Heating coil heating air, blowing into the rotary drum to dry. The thermostat regulates the temperature to a safe range. Thermal fuse cut off current to avoid sudden safety hazards caused by overheating. Fix symptoms: No heat/not enough heat| Too long to dry| Too hot| Will not shut off| Will not tumble.

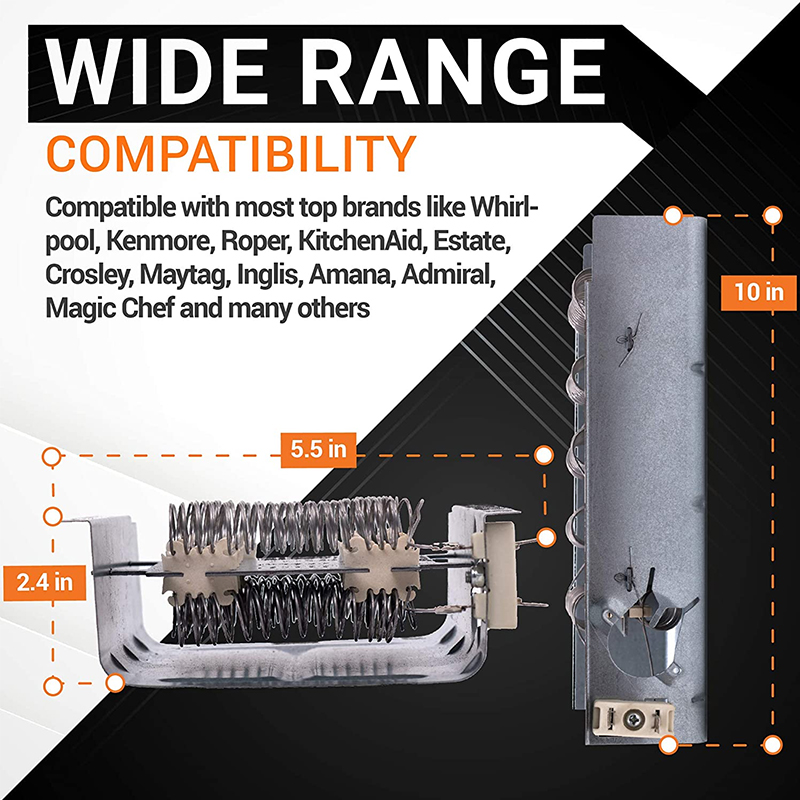

Heating Element

EASY TO INSTALL: The coiled wire on the heating element receives and resists a controlled electric dryer current, which allows the wire to heat up. The heat produced is used to dry the clothes in your dryer. In order to complete this repair, you will need a 1/4 inch nut driver and a pair of needle-nose pliers

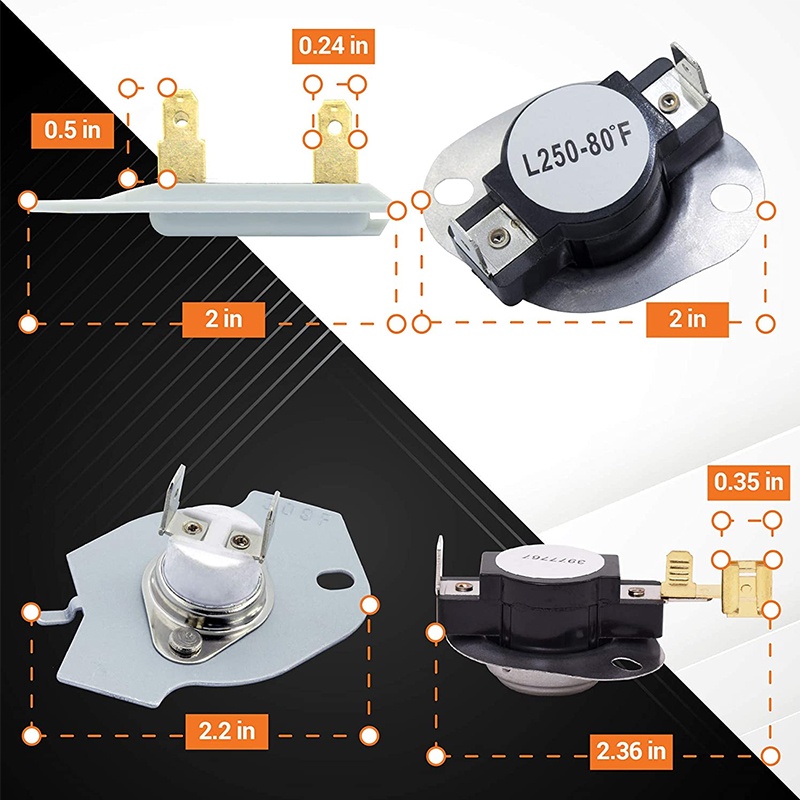

3387134 Dryer Cycling Thermostat

Functions: The thermostat is used to maintain a temperature of 155℉ in the dryer drum.The internal bias heater also allows it to provide a low heat temperature of approximately 140℉ when the low temperature setting is selected.

Replaces part numbers: 306910, 3387135, 3387139, WP3387134VP

3977767 Dryer High Limit Thermostat

Functions: The high-limit thermostat acts as safety mechanism to keep the dryer from overheating. Once the dryer temperature reaches 221℉, this piece will shut down power to the heating element until it drops by 80℉ and restore heat in the dryer once the temperature decreases.

Replaces part numbers: 3399693, WP3977767, WP3977767VP

3392519 Dryer Thermal Fuse

Functions: The thermal fuse stops the flow of electricity to the motor circuit when a dryer overheats.

Replaces part numbers: 3388651, 694511, 80005, WP3392519VP

3977393 Dryer Thermal Fuse

Functions: The thermal fuse is a safety device that prevents your dryer from overheating or catching on fire. When your driver gets too hot, the thermal fuse activates and turns off your dryer.

Replaces part numbers: 279816, 3399848, AP3094244, PS334299
