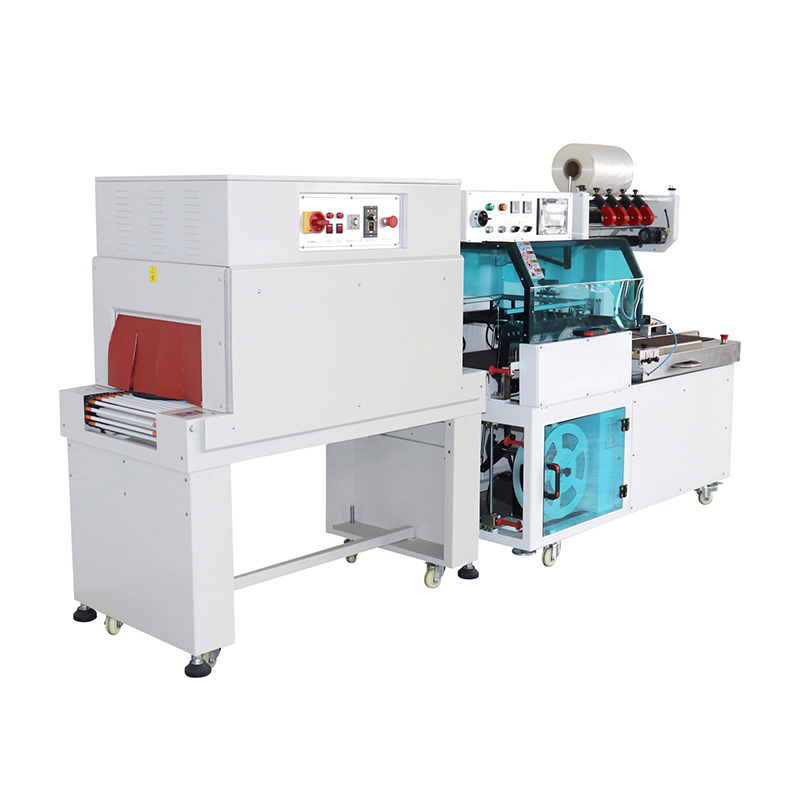

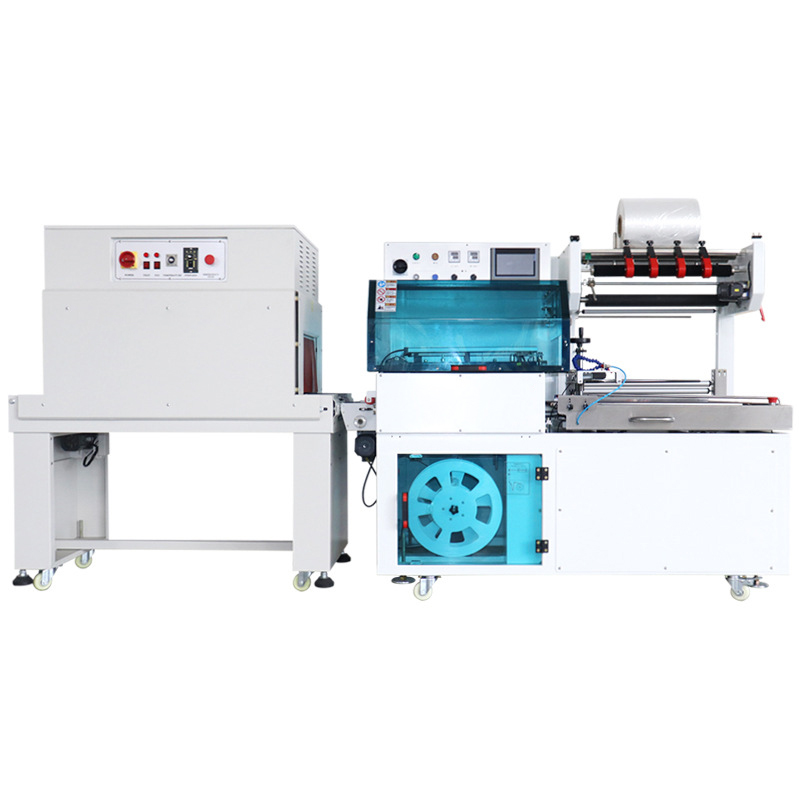

Basic parameters of the Heat Shrink Machine + L-Bar Wrapping and Sealing Automatic Filming Machine
Product name | L-Bar Wrapping and Sealing Machine | Heat Shrink Machine |

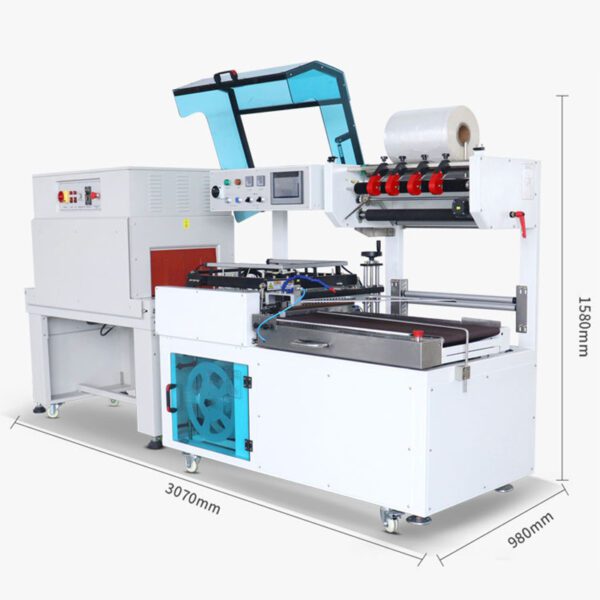

Dimensions | L1750mm×W980mm×H1580mm | L1320mm×W720mm×H1500mm |
Maximum sealing size | L550mm×W450mm×H140mm | |
Maximum packaging size | L+H≤500mm; W+H≤400mm | L unlimited×W400mm×H250mm |
Packaging speed | 15-25pcs/min | 2000-2500pcs/h |
Net weight | 225kg | 180kg |
Power | 1.3kw | 9kw |
Power supply | 1φ220V 50/60Hz | 3φ380V 50/60Hz |
Applicable gas source | 5.5kg/cm² |

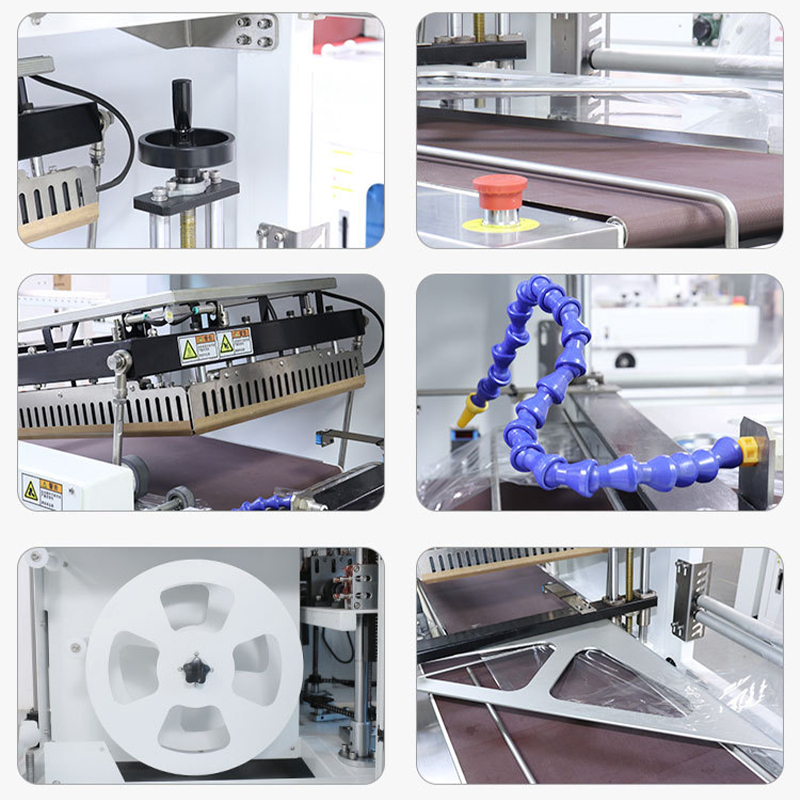

Features
- It adopts digital display temperature control and built-in PID function. The sealing knife temperature is extremely sensitive and precise and can be set at will.
- The knife is made of Teflon-coated anti-stick and high-temperature aluminum alloy knife. The seal will not crack, scorch, smoke or cause zero pollution.
- Photoelectric detection, automatic feeding, and the length can also be adjusted independently through the combination of electric eye and timer.
- Adopting human-machine interface, the operation is simple and easy, and the system has automatic monitoring function.
- When the product packaging size changes, the adjustment is simple and there is no need to change molds and bag making.
- The sealing and cutting part of the machine is equipped with a plexiglass protective cover and has an automatic alarm function, which greatly improves the safety of operation.
- Automatically take up waste materials. Using a separate motor control, it will not be too loose or too tight to cause tearing, and the scrap can be easily disassembled.
