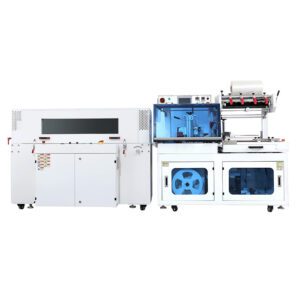

Basic parameters of the Heat Shrink Machine + L-Bar Sealing and Cutting Machine
Product name | L-Bar Sealing and Cutting Machine | Heat Shrink Machine |
Air pressure | 0.5Mpa | |
Packaging speed | 10m/min | |
Packing height | ≤100mm | |
Sealing line | 450mm×550mm | |
Shrink furnace size | 1500mm×4500mm×220mm | |
Transfer speed | 0-10m/min | |
Power supply | 220V 50Hz/60Hz | 380V 50Hz/60Hz |
Total power | 1.35kw | 9.6kw |
Machine size | 1650mm×800mm×1450mm | 1900mm×700mm×1340mm |
Machine Weight | 460kg | 170kg |
What is shrink wrap?
Heat shrink packaging is one of the more advanced packaging methods in the market. Use shrink film to wrap the product, and heat it to shrink the film and wrap the product tightly. Fully display the appearance of the product, improve the display and sales of the product, and increase the aesthetic feeling.
At the same time, after packaging items, it can be sealed against moisture, dust, and pollution, and protect the product from external impact, and has a certain buffering property. Especially when the packaged products are fragile, it can prevent the containers from breaking or scattering.
In addition, it can reduce the possibility of product being dismantled and stolen.
Features
- Jet heat shrink.
- Using electronic speed regulator, the speed can be adjusted at will to ensure the smoothness and shrinkage effect of the machine’s transportation.
- High-quality copper wire motor is used to reduce noise. Durable for longer life.
- Stainless steel heating tube, heats evenly, and the shrinkage effect is beautiful and smooth.
- Uniform heat temperature and good shrinkage effect. Wind circulation, double adjustment of thermometer and lower heat, combined with large wind blades to shrink the furnace, form a good wind circulation system to achieve uniform heating.
- The cutting and sealing part is equipped with a protective cover and self-alarm function.
- Microcomputer digital display humidifier is used to control the operation sensitively. Every action is controlled accurately and is easy to use.
