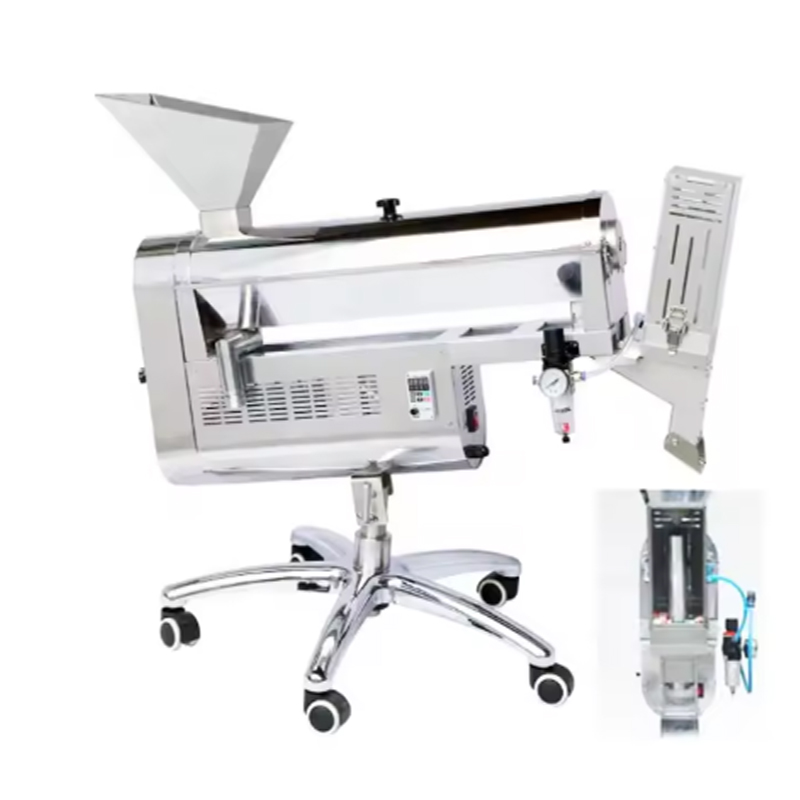

Hard Capsule Polishing Machine Sorting Machine


The Sorting-Type Capsule Polishing Machine, branded as Conoval and originated from Liaoning, China, is a practical equipment mainly used for polishing and sorting capsules in the pharmaceutical industry. It boasts a high capacity of 150,000 capsules per hour, supported by a vacuum of 2.7 m³/min (0.01 MPa) and compressed air of 0.25 m³/min (0.3 MPa) to ensure efficient and smooth operation.
Electrically adaptable to different regions, it works with 220/110V, 50/60Hz (1P) power supply and consumes only 180W, while its compact dimension (800×550×1000 mm, net weight 45 kg; packing dimension 960×610×800 mm, gross weight 65 kg) makes it easy to place in production workshops.

$2,999.00

Compare
Product Description:

The sorting polishing machine is a special capsule polishing equipment with sorting function. It not only removes the dust on the surface of the capsule, improves the smoothness and eliminates static electricity, but also uses the novel negative pressure rejection device to automatically reject the capsules with slight filling, empty shells, fragments and body caps, which are suitable for all types of capsules. The parts of the machine can be quickly disassembled, cleaned and connected by the quick connection device, which is extremely convenient and fast. The frequency conversion speed is sensitive, reliable and stable, and can withstand large starting torque. The synchronous belt output power realizes low noise operation. Equipped with a special feeder, it can be connected with the automatic filling machine. The whole machine is made of 304 stainless steel and fully conforms to the GMP standard.

Parameter Category
Specific Details
Product Type
Sorting-Type Capsule Polishing Machine
Electrical Specifications
Voltage: 220/110V, 50/60Hz, 1P
Power (W): 180W
Performance Parameters
Capacity: 150,000 capsules/hour
Vacuum: 2.7 m³/min — 0.01 MPa
Compressed Air: 0.25 m³/min — 0.3 MPa
Physical Specifications
Weight (Net): 45 kg
Gross Weight: 65 kg
Dimension (LWH): 800×550×1000 mm
Packing Dimension: 960×610×800 mm
Core Components
Motor
Key Selling Points
Easy To Operate
