Flat Plate Centrifuge Product Introduction

The flat plate centrifuge for industrial solid-liquid separation is a reliable batch-type separation machine widely used in industrial production processes. The equipment adopts vertical flat plate centrifuge technology to efficiently separate solid particles from liquid mixtures.The centrifuge consists of a rotating drum, drive system, filter medium, and control unit. During operation, the slurry mixture enters the centrifuge drum where strong centrifugal force is generated by high-speed rotation.

Under centrifugal force, liquid passes through the filter medium and exits through the outlet while solid particles are retained inside the drum, forming a solid cake layer. After separation is completed, the machine stops and the solid material can be discharged manually or automatically depending on the configuration.

This flat plate centrifuge is widely used in chemical production, pharmaceutical manufacturing, food processing, and environmental protection industries. It provides stable performance, efficient separation, and reliable operation in batch processing systems.

Technical Specifications

Parameter	Value
Bowl diameter	450 mm
Bowl speed	2000/2500 (rpm)
Bowl capacity	21L
G-force	1575 (G)
Motor power	2.2 (kW)
Machine weight	460 (kg)
Length	1000 (mm)
Model	450

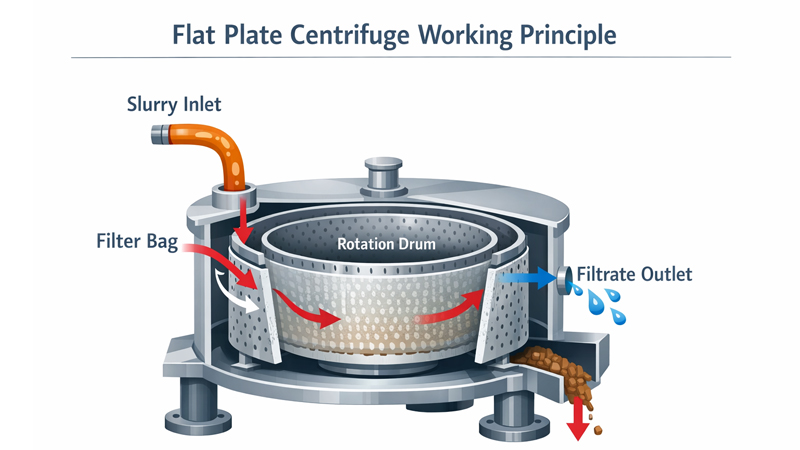

Working Principle

The flat plate centrifuge operates based on centrifugal filtration principles.When the slurry enters the rotating drum, the drum spins at high speed to generate strong centrifugal force. Under this force, liquid passes through the filter medium installed inside the drum while solid particles remain inside the drum.
As the separation process continues, the solid material gradually forms a filter cake layer. Once the filtration process is completed, the machine stops and the solid cake can be removed.
This batch separation process ensures efficient solid-liquid separation and high product purity in industrial processing systems.

Key Features

• High-speed centrifugal filtration ensures efficient separation of solid particles from liquid mixtures.
• Batch operation design allows precise control of separation time and processing conditions.
• Stainless steel construction provides excellent corrosion resistance and long service life.
• Simple structure ensures reliable operation and easy maintenance.
• Suitable for processing slurry with medium to high solid content.
• Optional PLC control system allows convenient operation and improved process stability.

Applications

The flat plate centrifuge is widely used in industries requiring batch solid-liquid separation.
Typical applications include:

• chemical crystal separation
• pharmaceutical raw material processing
• food ingredient filtration
• starch and sugar processing
• dye and pigment separation
• environmental sludge treatment

By efficiently separating solids from liquid mixtures, the centrifuge improves product purity and production efficiency.

FAQ

• What materials can this centrifuge process?
  The centrifuge can process slurry mixtures, crystals, and solid-liquid suspensions.
• Is the machine suitable for batch processing?
  Yes, the flat plate centrifuge is designed for batch separation operations.
• What industries commonly use this centrifuge?
  The equipment is widely used in chemical, pharmaceutical, food, and environmental industries.
• Can the equipment be customized?
  Yes, the centrifuge can be customized according to different capacity and material requirements.
