Specification of the FIERYRED 12V 17500lbs Electric Winch
Single line rated pull | 17500LBS (7938KG) |
Motor | 6.6hp/4.95kw,series wound |
Controls | Remote Switch |
Extra wireless remote switch | Optional |
Gear Train | 3-Stage Planetary |
Braking | Two way braking action in the drum |

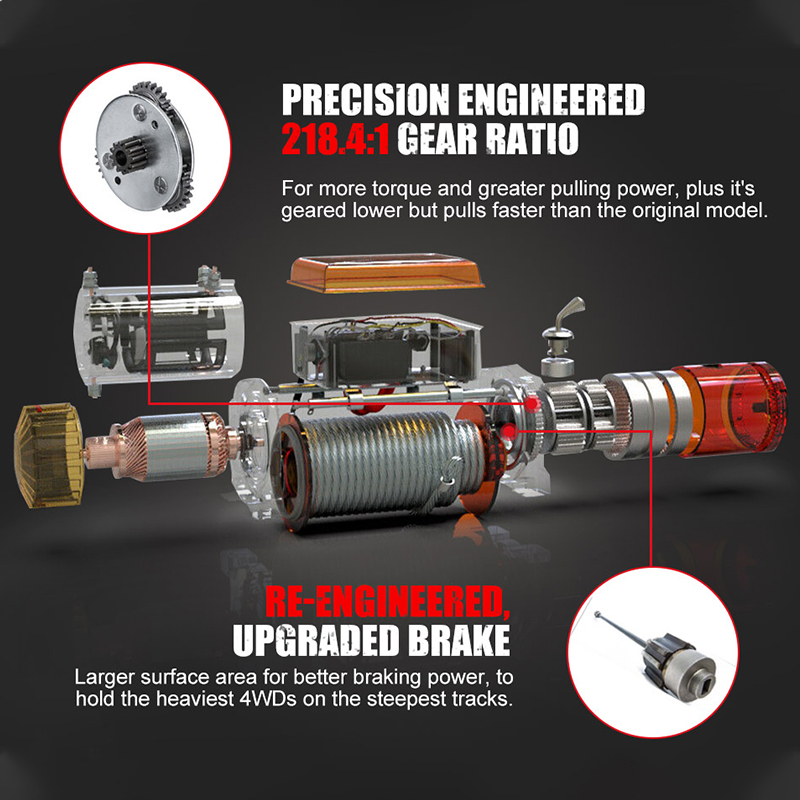

Gear reduction ratio | 218.4:1 |
Drum size | Diameter 2.52”(64mm) × length 8.82”(224mm) |
Remote Control | Included |
Recommended Battery | 650CCA |
Remote control battery type | Alkaline Battery |
Weight | 28KG |
Features
- Monstrous Pulling Power: A 6.6 HP motor guarantees 17,500 pounds pulling capacity, ensuring sufficient power to recover your stuck vehicle.
- Stronger Gear Ratio: Geared lower but deliver stronger and faster winching performance than previous generations.
- Dual Remote Control: This wireless winch comes with the dual remote control mode, including 25 meters of wireless control
- Re-engineered Brake: This brake has been thoroughly upgraded to deliver ultra braking performance against the toughest situations.
- Cooper Core Terminal: This design can effective keep oxidation, corrosion and rust at bay, and features superior conductivity.
- Premium Synthetic Cable: The upgraded version—9.5mm*26m dyneema synthetic rope features an amazing breaking strength of 23,809lbs.
- Unparalleled Warranty: An one-year warranty and free lifetime technical support prove to be a testament to its quality assurance.
- Designed vehicle recovery only, particular for ATV, UTV& 4×4. It is not only more efficient, but quieter as well.
- Note: Avoid angle pull.The winch line should not exceed a 15° up and down for horizontal,or a 45° angle left or right from straight ahead.
