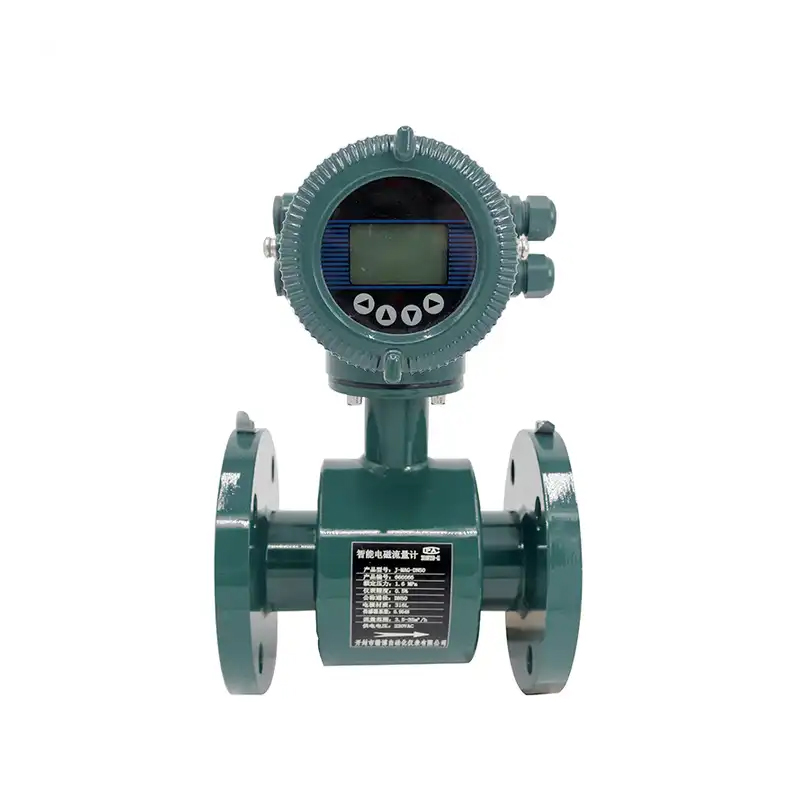

Energy Measurement Conductive Liquid Farmland Irrigation River Velocity Level Electromagnetic Flowmeter

Add to wishlist
Compare
Main power
AC220V 50HZ / DC24V
Power consumption
<15W (And set with sensor supporting power consumption )
Display and push buttons
The big screen LCD display with back lighting can display the instantaneous flow ,total flow and percentage of flow as well as
alarm display ,four thin-film touch nubs ,which is used to data set .

$400.00

Compare
Accumulator
Forward total quantity ,reverse total quantity

Output signal

Analog output
Bi-direction with two ways ,Isolation 0-10mA/4-20mA
Load resistor:0-10Ma;0-1.5KΩ;4-20Ma;0-750Ω
Frequency output
Forward & reverse flow output with frequency range set between 1-5000Hz.The external voltage must be lower than 35V and the max
output and the max output current is 50Ma when the transistor is turned on

Alarm output
Two outputs from the collectors of photoelectric isolate transistors are for alarm signals .The external voltage must be lower
than 35V and the max output current is 250Ma when the transistor is turned on.Alarm status:Activates when the measured pipes are
empty ,the excitation circuits are broken or the volume of flow rate exceeds the value designed limits.

Pulse output
For pulse output in forward and reverse flow measurement ,upper frequency of pulse output can be up to 5000 CP/S relevant value of
pulse is from 0.0001 to 1.0 M3/P .The width of pulse can be set to 20ms or squired wave from automatically.The collector of
transistor with photoelectric is open circuited.The external voltage must be lower than 35 V and maximum output current is 250Ma
when the transistor is turned on .
Accuracy
±0.5% of the value displayed ,±0.3% or ±0.2% are selectable.
Damping time constant
Continuous variable from 0-100 s (90%)can be selected by group
Communication
RS232 ,RS485 or HART Communication are selectable ,with lighting resistance
Power failure
An anti-failure clock is designed in the flow meter which can save the power failure records for 16 times (10 years)
Protection class
IP65
Ex-proof Mark
Exd IIBT4
